Mechanical Relays cont…

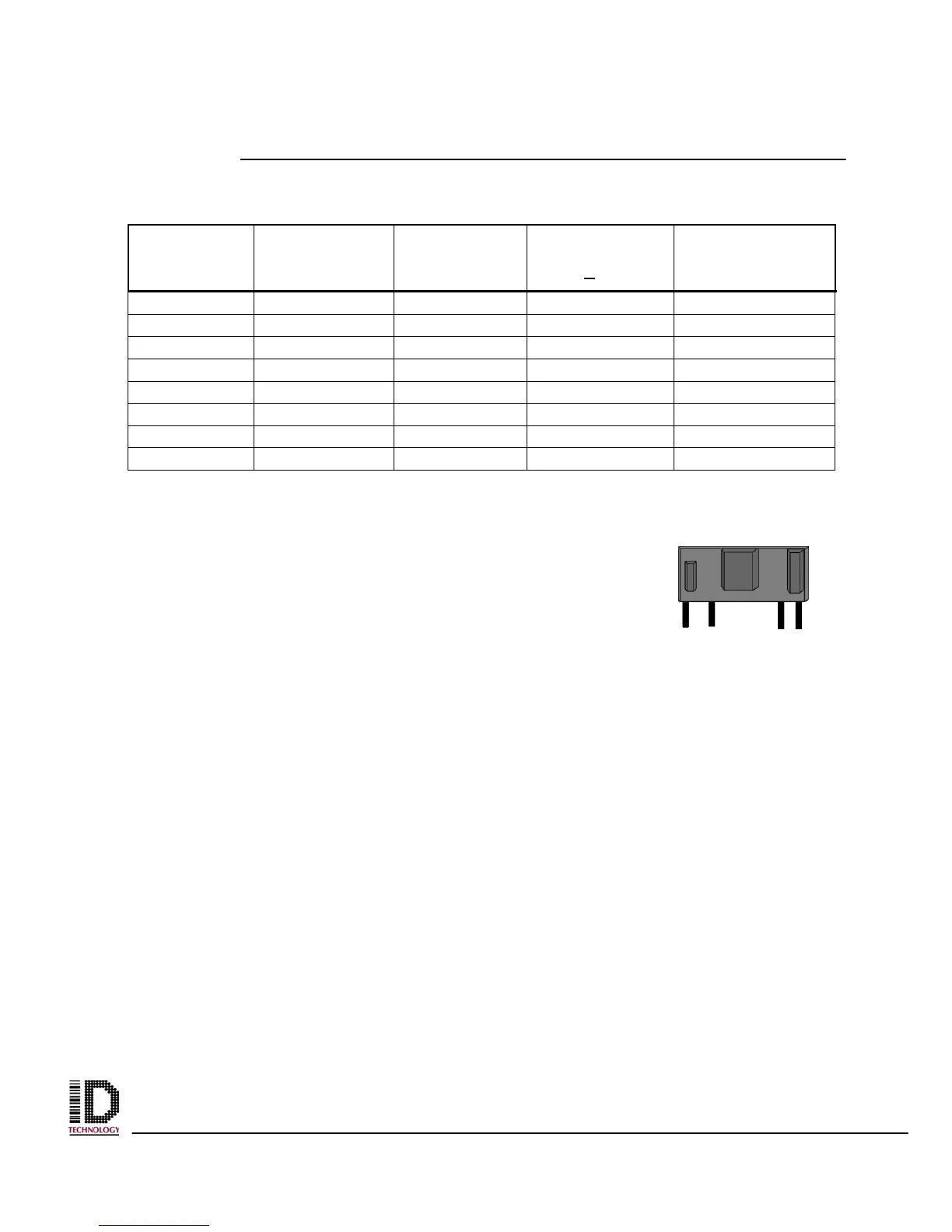

Coil Data
(at 20
o
C 68
o
F)
Specifications of the (1) Solid State relay:
Series DO (DO061B)
DC Control, DC Output
Bipolar Output 3 10 VDC Logic Compatible Input
SPST-NO DC output relay in epoxy-coated package
utilizing the popular .10” grid lead spacing.
Input Specifications:
Control Voltage Range - 1.7 – 9.0 VDC
Nominal Input Impedance - 270 Ohm
Typical Input Current - 15mA DC
Must Turn On Voltage - 1.7 VDC
Must Turn Off Voltage - 0.8 VDC
Output Specifications:
Operating Voltage Range - 3 – 60 VDC
Load Current Range - .02 – 1.0 A DC
Max. Surge Current - 5.0 A DC (1 sec)
Max. Off-State Leakage - 200 µ ADC (at rated voltage)
Max. On-State Voltage Drop - 1.5 VDC (at rated voltage)
Max. Turn-On Time - 50 µ sec
Max. Turn-Off Time - 150 µ sec
General Specifications:
Dielectric Strength - 4000Vrms
Insulation Resistance (Min.) - 10
9
Ohm (at 500 VDC)
Max. Capacitance (Input/Output) - 8.0 pF
Ambient Operating Temperature Range -
-
30 to 80
o
C
Ambient Storage Temperature Range -
-
30 to 125
o
C
Nominal
Voltage V
DC
Pick up
Voltage, V DC
(max.)
Drop-out
voltage, V DC
(min.)
Coil resistance,
Ω (+ 10%)
Max. allowable V
DC
(at 50
o
C 122
o
F)
1.5 1.2 0.15 11.3 2.4
3 2.4 0.3 45 4.8
5 4.0 0.5 125 8.0
6 4.8 0.6 180 9.6
9 7.2 0.9 405 14.4
12 9.6 1.2 720 19.2
24 19.2 2.4 2880 28.4
48 38.6 4.8 11520 76.8
