4-73
BUS OPERATION

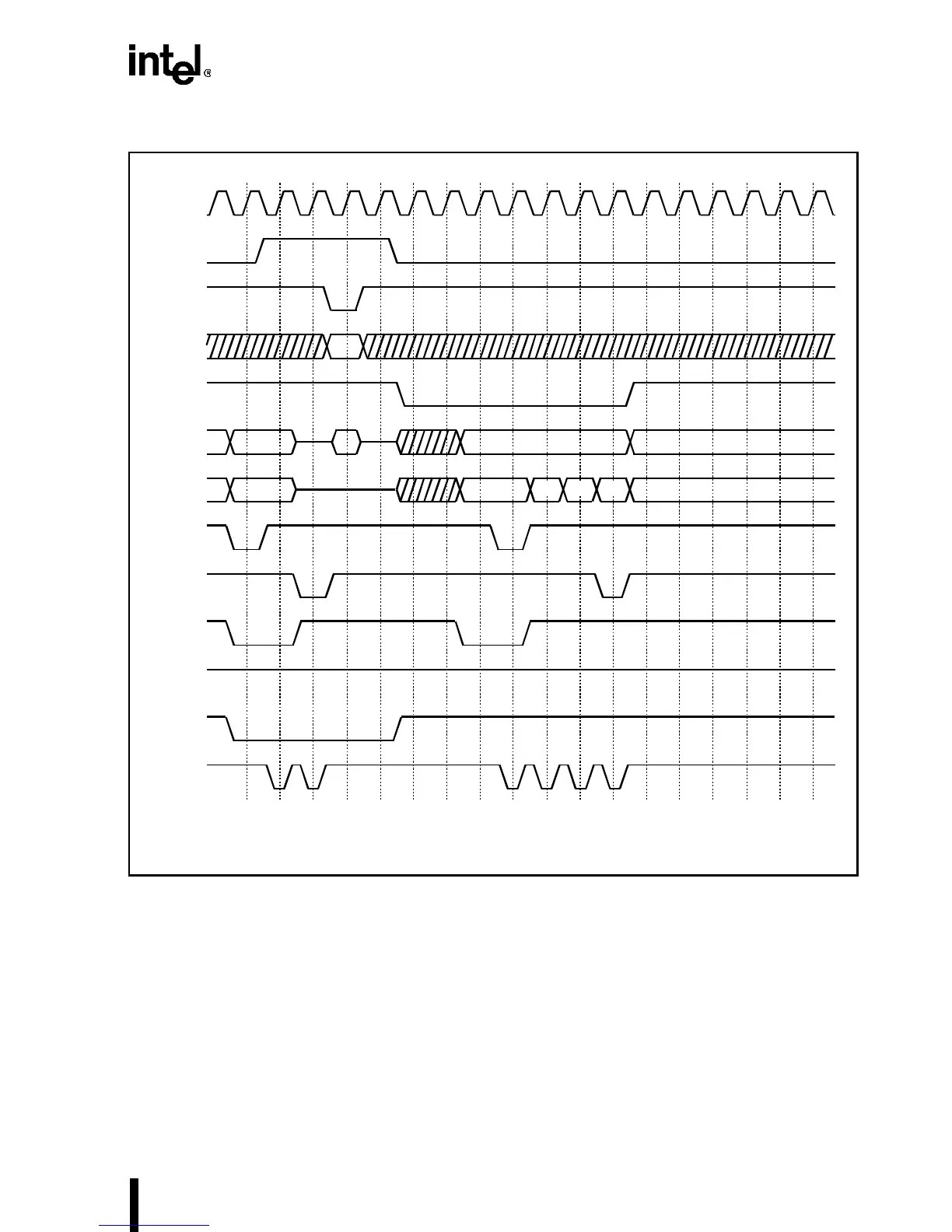

Figure 4-51. Snoop under BOFF# Overlaying a Pseudo-Locked Cycle
CLK
AHOLD
EADS#
HITM#
A31–A4
A3–A2
ADS#
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
BLAST#
CACHE#
To Processor
†
W/R#
0 4 8 C
INV
PLOCK#
BRDY#
Write Back Cycle
†
242202-163
