EMBEDDED Intel486™ PROCESSOR HARDWARE REFERENCE MANUAL
4-26
4.3.4 Burst Mode Details
4.3.4.1 Adding Wait States to Burst Cycles
Burst cycles need not return data on every clock. The Intel486 processor strobes data into the chip
only when either RDY# or BRDY# is asserted. Deasserting BRDY# and RDY# adds a wait state
to the transfer. A burst cycle where two clocks are required for every burst item is shown in
Figure 4-17.

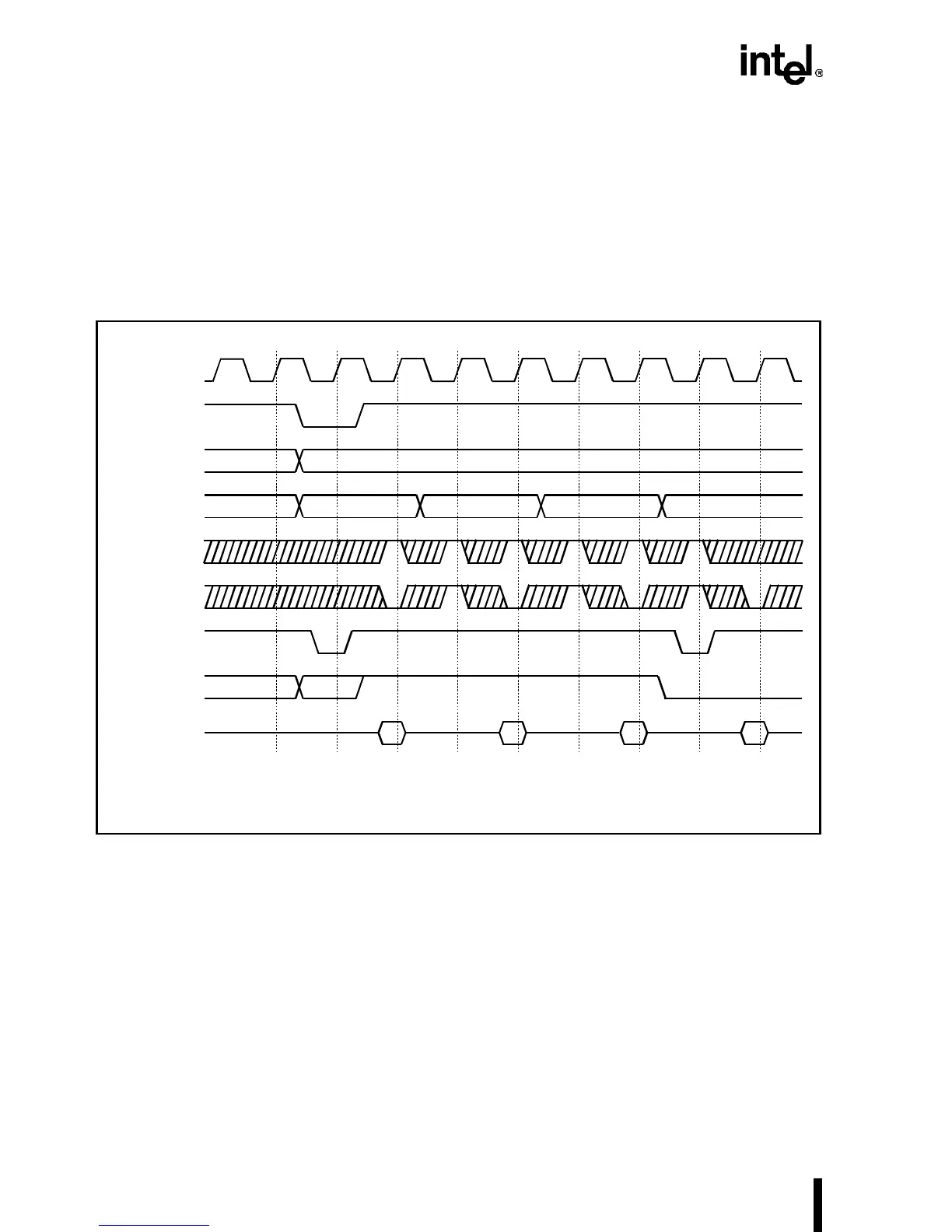

Figure 4-17. Slow Burst Cycle
242202-038
CLK
ADS#
A31–A2
M/IO#
D/C#
W/R#
KEN#
RDY#
BLAST#
DATA
Ti T1 T2 T2 T2 T2 T2 T2 T2 T2
To Processor
BRDY#
A3–A2
BE3#–BE0#
†
†
†
††
