Intel FALCON 8+ Flight Manual

MAINTENANCE MANUAL
INTEL
®
FALCON™ 8+ UAS
GENERAL
12 © 2017 Intel Corporation. All rights reserved.
REV 00
APR 2017
this manual, including but not limited to errors, omissions, conflicts with other documents,
suggestions for improvement or similar issues, shall be directed to:
INTEL CORPORATION
2200 MISSION COLLEGE BLVD
SANTA CLARA, CA 95054
USA
Intel Corporation reserves the right to change, amend or update all available documents at any
time and without notice. Contact an Intel Corporation representative to obtain the latest
unmanned aircraft specifications and roadmaps.

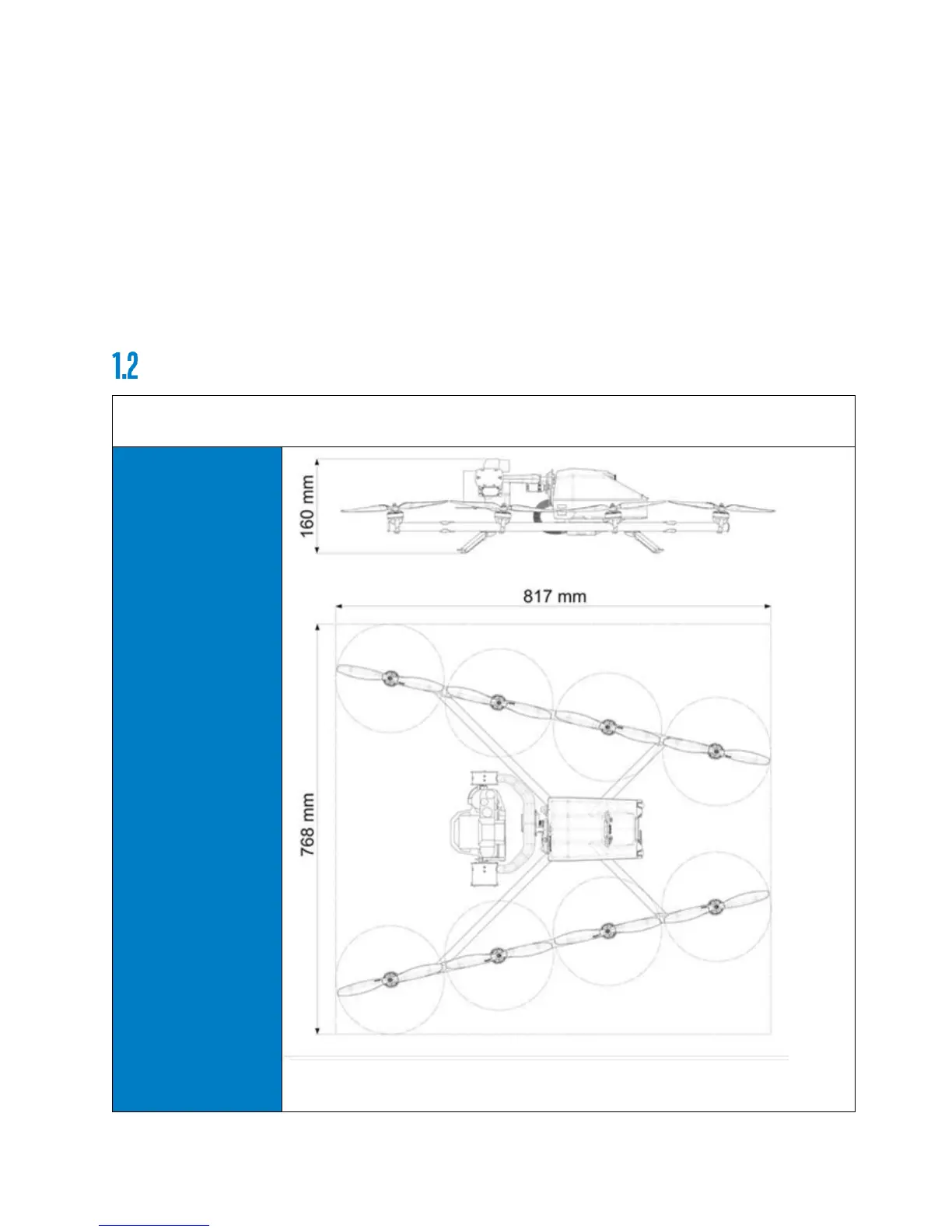

THREE VIEW – NORMAL GROUND ALTITUDE FIGURE
1.2.1 Aircraft Dimensions

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
