Intel FALCON 8+ Flight Manual

MAINTENANCE MANUAL
INTEL
®
FALCON™ 8+ UAS
DESCRIPTION
74 © 2017 Intel Corporation. All rights reserved.
REV 00
APR 2017

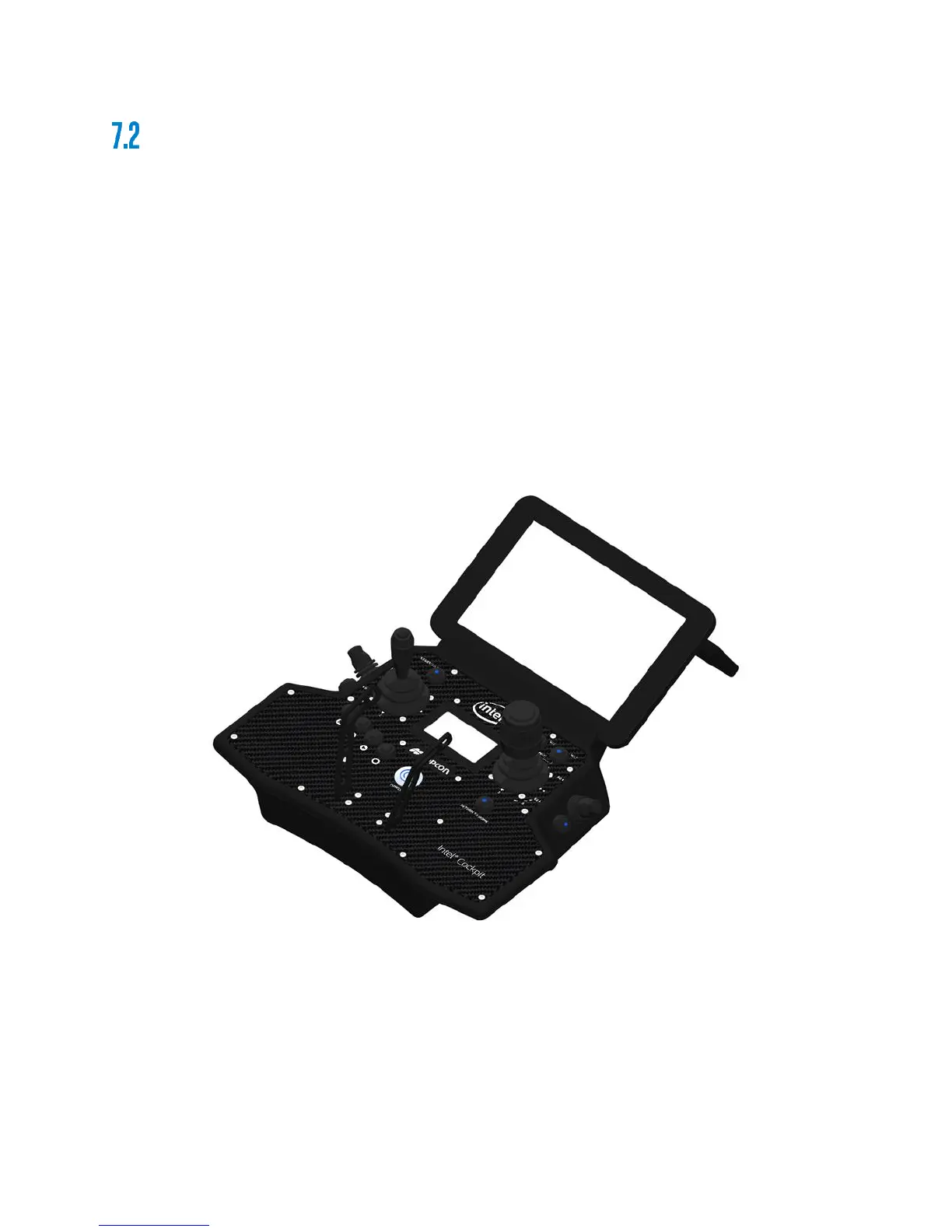

INTEL® COCKPIT GROUND CONTROL STATION
The Intel
®
Cockpit GCS is the main control hub for the Intel
®
Falcon™ 8+ UAS and the attached
payloads/cameras. It is designed to be carried and operated by one person and displays all
relevant flight information.
The communication between the Intel
®
Cockpit GCS and the Intel
®
Falcon™ 8+ UAS is realized by
two independent 2.4 GHz digital data links. The preview video is transmitted digitally on 5.8
GHz. The Intel
®
Cockpit GCS uses the same Intel
®
Powerpack™ Battery type as the Intel
®
Falcon™
8+ UAS. The Intel
®
Powerpack™ Battery is located in the battery compartment which can be
accessed from the bottom of the Intel
®
Cockpit GCS.
The Ground Control Station, or Intel
®
Cockpit GCS, is comprised of the following sections:
 Remote Control Unit
 Tablet / Video Unit (with optional Sun Shade)
 Antenna Panel

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
