Intel FALCON 8+ Flight Manual

DESCRIPTION
© 2017 Intel Corporation. All rights reserved. 97
REV 00
APR 2017
7.4.2 Inspection Payload

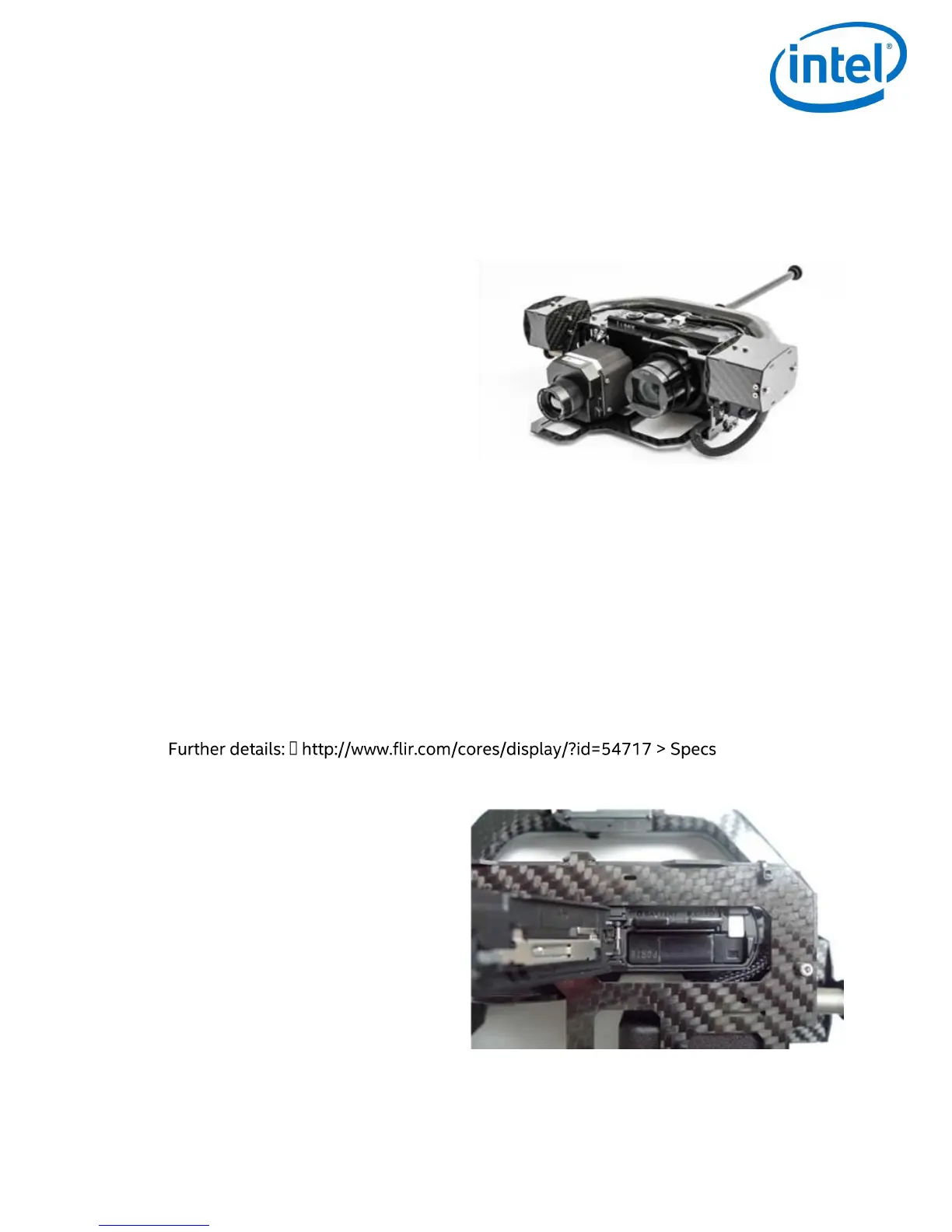

The Inspection Payload is recommended as payload for inspection. It consists of two cameras:
Panasonic Lumix RGB camera and IR (Infrared) camera FLIR TAU 2 640.
Weight of the complete payload including gimbal: 550 g
Approximate maximum flight time: 15 min
Specifications Panasonic Lumix RGB camera:
 Sensor size: CMOS Sensor 1/2.3", 6.2 x
4.6 mm
 Resolution: 12.1 Mpx (4000 x 3000
pixel)
 Lens: LEICA DC VARIO-ELMAR F3,3 -
6,4 / Multistage Iris Diaphragma (F3,3 -
8,0 (W), F6,4 - 8,0 (T))
 Focal length: 4.3 - 129 mm (24 - 720 mm, 35 mm equiv.)
 Optical zoom: 30x
Specifications IR camera FLIR Tau 2 640:
 Thermal Imager: Uncooled VOx Microbolometer
 Resolution: 640 × 512 pixel
 Pixel pitch: 17 μm
 Spectral band: 7.5 - 13.5 μm
 Focal length: 19 mm (~ 59 mm, 35 mm equivalent)

The Panasonic Lumix camera needs its own
fully charged battery to work. The battery
slot can be accessed from the bottom of the
payload.
The SD card of the camera is inserted next to
the battery.
A separate charger for the Panasonic Lumix
batteries is supplied with the payload.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
