The FLIR Tau 2 640 camera is powered by the Intel
®
Falcon™ 8+ UAS battery to save weight, and
does not need to be switched on or off.

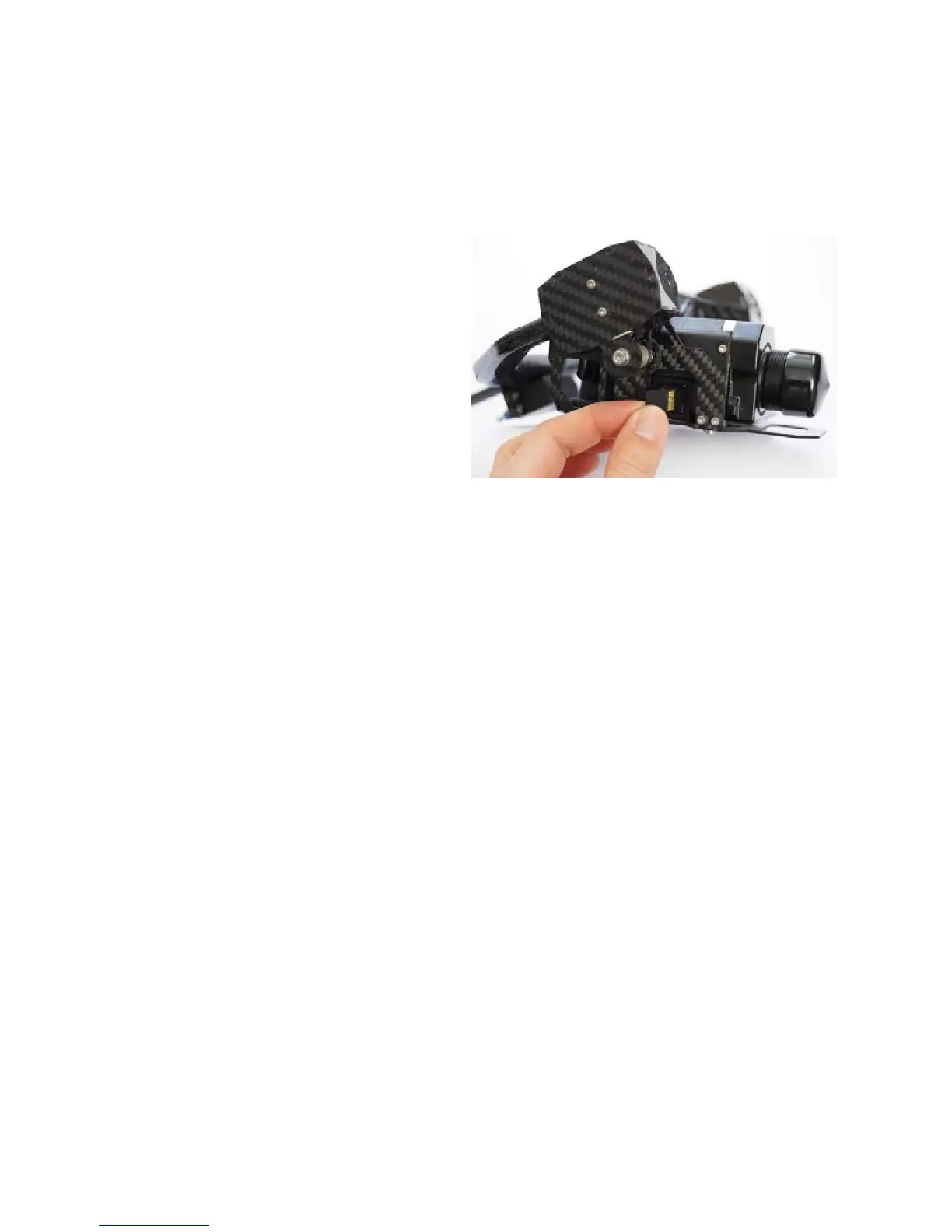

The micro SD card of the FLIR Tau is inserted at the side of the camera, with the contacts of the
micro SD facing towards the camera lens.
Each time the Intel
®
Falcon™ 8+ UAS is
switched on, a new, subsequently numbered
subfolder (FLIR0000, FLIR0001, FLIR0002...)
is created on the micro SD card. Up to 128
image files are stored in one folder. If more
images during one flight are taken, a new
subfolder will be created to which the
additional images are stored. Before the
camera can be used, the black cap must be
removed from the lens.
The payload is designed to take stills images. Currently video recording is not supported on the
FLIR. Video recording on the Panasonic can be started directly on the camera, but when a video
recording is running, the camera can no longer output any preview video. This means that the
preview monitor /video unit / Tablet of the Intel
®
Cockpit GCS must be switched to show the
FLIR image.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
