DESCRIPTION
© 2017 Intel Corporation. All rights reserved. 65
REV 00
APR 2017

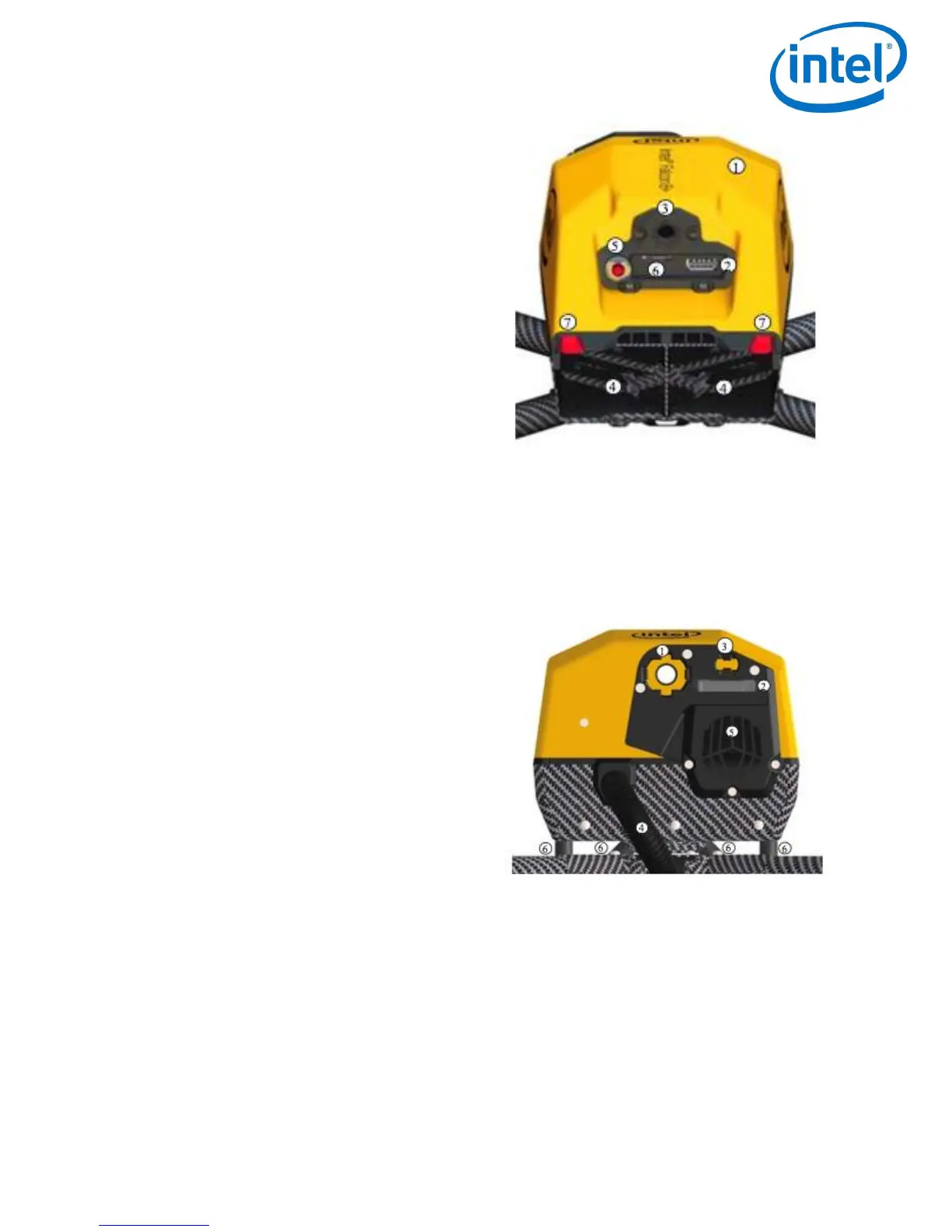

7.1.1 Central Unit
The Central Unit, back view, consists of:
1) Carbon fiber chassis
2) USB stick slot for flight logs
3) Hole for the camera mount’s carbon rod
4) Battery compartments with retaining clips
for batteries
5) Power Button switch
6) Micro SD-card slot (SD card: speed class
10 minimum, supports up to 16 GB, file
system: FAT32, allocation unit size: 64
kilobytes).
Built inside:
The electronics for flight stabilization and power supply
Diversity Data Link modules
Video Transmitter module
7) Battery Retaining Clips
The Central Unit, front view, consists of:
1) Hole for the camera mount’s carbon rod
2) Connector slot for the plug of the payload
adapter,
3) Retaining clip for the payload adapter
4) Cable tube, contains e.g. the cabling of the
antennas.
5) Fan for the internal cooling behind the
slots
6) Vibration dampers
