Intel FALCON 8+ Flight Manual

NORMAL PROCEDURES
© 2017 Intel Corporation. All rights reserved. 49
REV 00
APR 2017

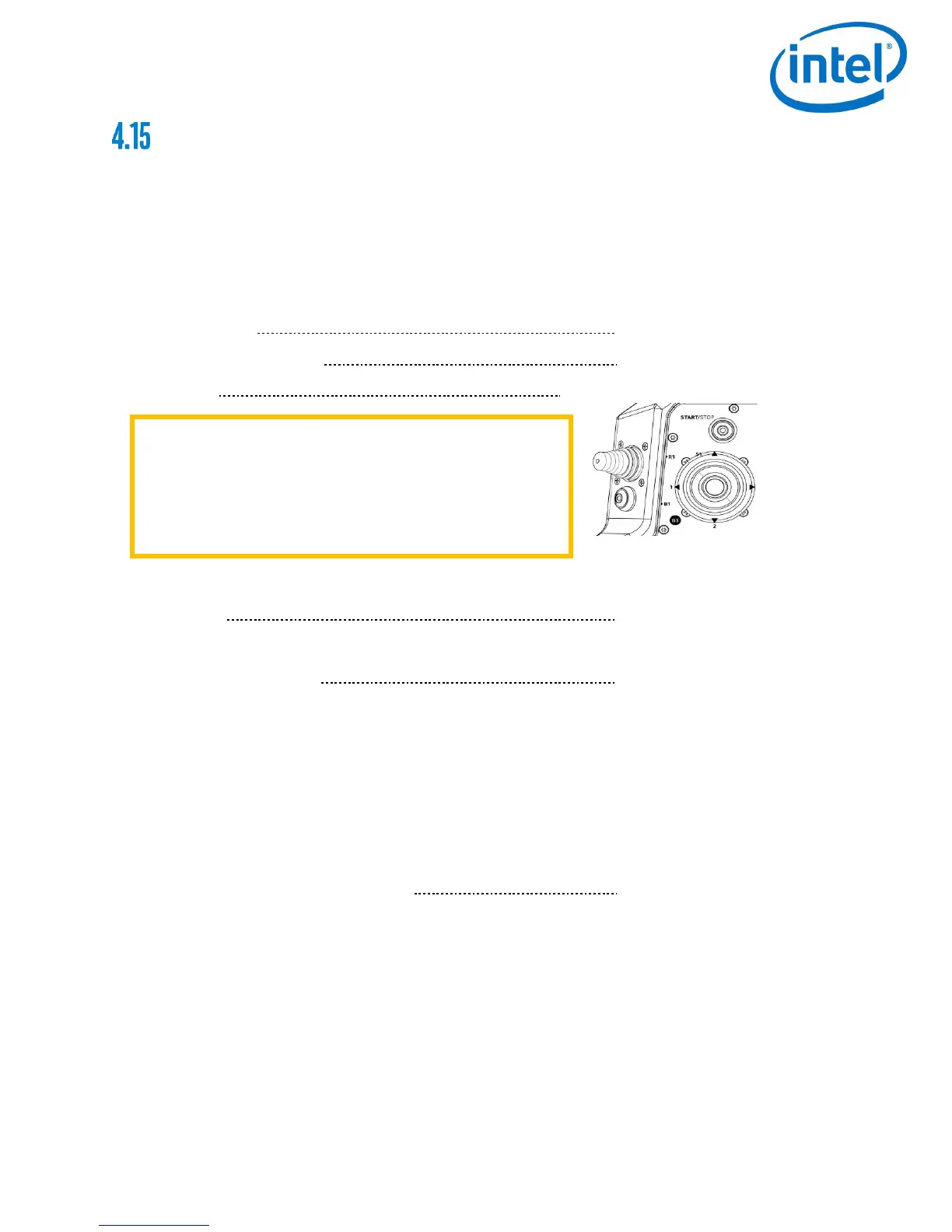

AFTER LANDING
 Keep the left control stick in the fully downwards position and use the right hand to
simultaneously push/hold the Start/Stop switch upwards for at least one second to stop
the Motors.
 Follow the post-flight check to safely switch of and store away the complete system.
4.15.1 Engine Shutdown
1. Left control Down
2. START/STOP switch 1 second
3. Rotors Stopped spinning
4.15.2 System Shutdown
1. Camera Wait 10 seconds, then off
Wait at least 10 seconds until it has stored all data and is fully powered down.
2. UAS POWER Switch Press and hold
1) Push and hold the Power switch;
2) The LED position lights will increase brightness;
3) The LED position light will decrease brightness and simultaneously there will be
a short beep from the UAS;
4) After the beep, let go off the button;
3. Intel
®
Cockpit GCS Touch Screen Tablet Off
4. Intel
®
Cockpit GCS Power Switch Press and Hold;
1) Push and hold the Power switch;
2) The Intel
®
Cockpit GCS will vibrate shortly;
3) Release after Vibration
5. Post Flight Check
CAUTION: WHILE THE INTEL FALCON 8+ IS ON THE
GROUND WITH RUNNING MOTORS, ALWAYS
KEEP THE LEFT CONTROL STICK, WHICH
CONTROLS THE HEIGHT, IN THE FULLY
DOWNWARD POSITION TO AVOID ANY
UNINTENTIONAL TAKE-OFF.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
