SECTION 7 AIRCRAFT AND SYSTEMS DESCRIPTION
The Intel
®
Falcon™ 8+ UAS can be launched in virtually any location where a minimal landing
area is available. The system is designed for maximum portability and can be deployed within
minutes. It is capable of flying for up to 26 minutes on two fully charged Intel
®
Powerpack™
Batteries.
AIRFRAME
Major components of the Intel
®
Falcon™ 8+
UAS include:

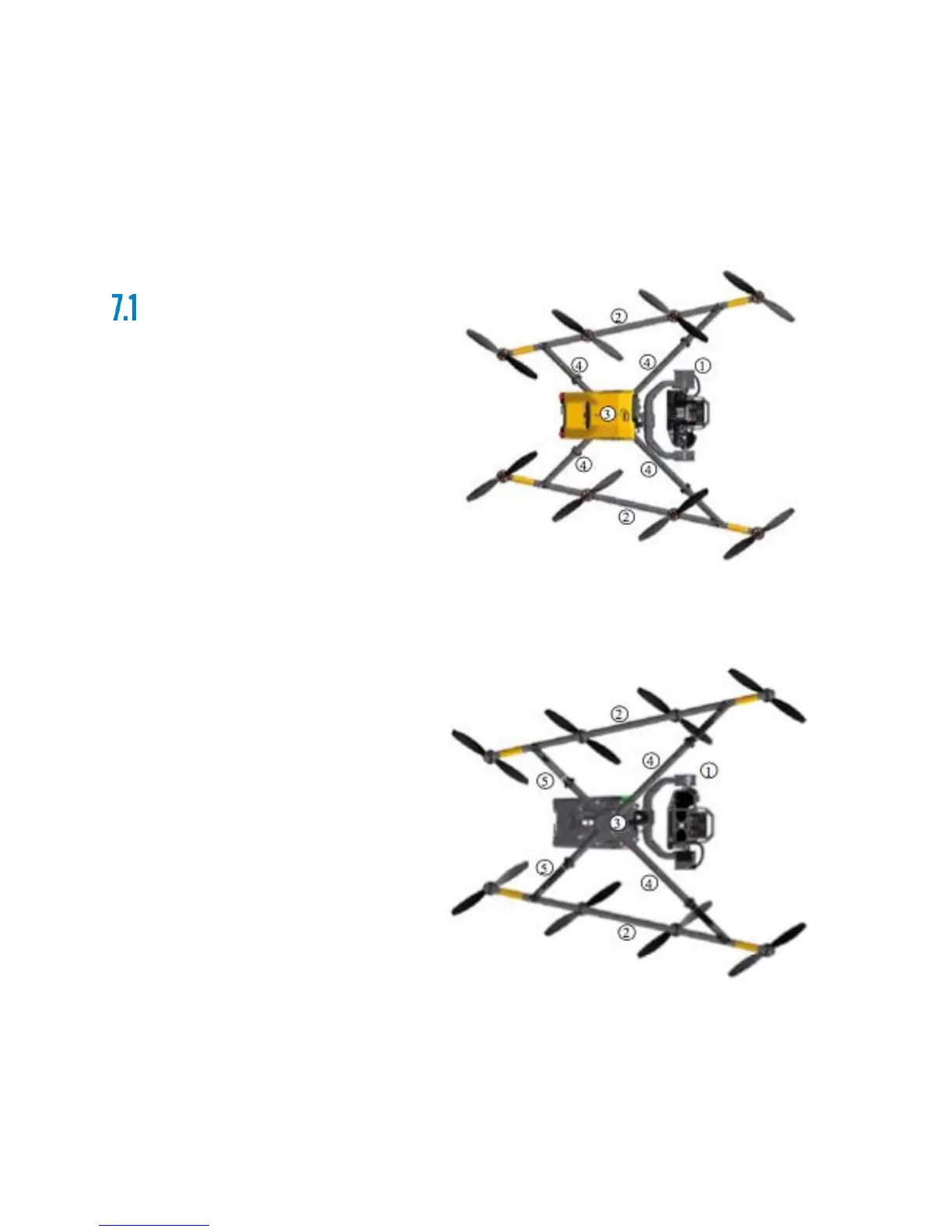

Top view:
1) Actively stabilized camera mount
(gimbal) with camera
2) Motor Rails
3) Central Unit
4) Center Cross with Landing Feet
Bottom View:
1) Actively stabilized camera mount with camera;
2) Motor Rails;
3) Center Cross piece with LED;
4) Center Cross;
5) Landing feet.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
