Intel FALCON 8+ Flight Manual

MAINTENANCE MANUAL
INTEL
®
FALCON™ 8+ UAS
SERVICE / MAINTENANCE
120 © 2017 Intel Corporation. All rights reserved.
REV 00
APR 2017
8.9.2 Packing
Intel
®
Falcon™ 8+ UAS Case

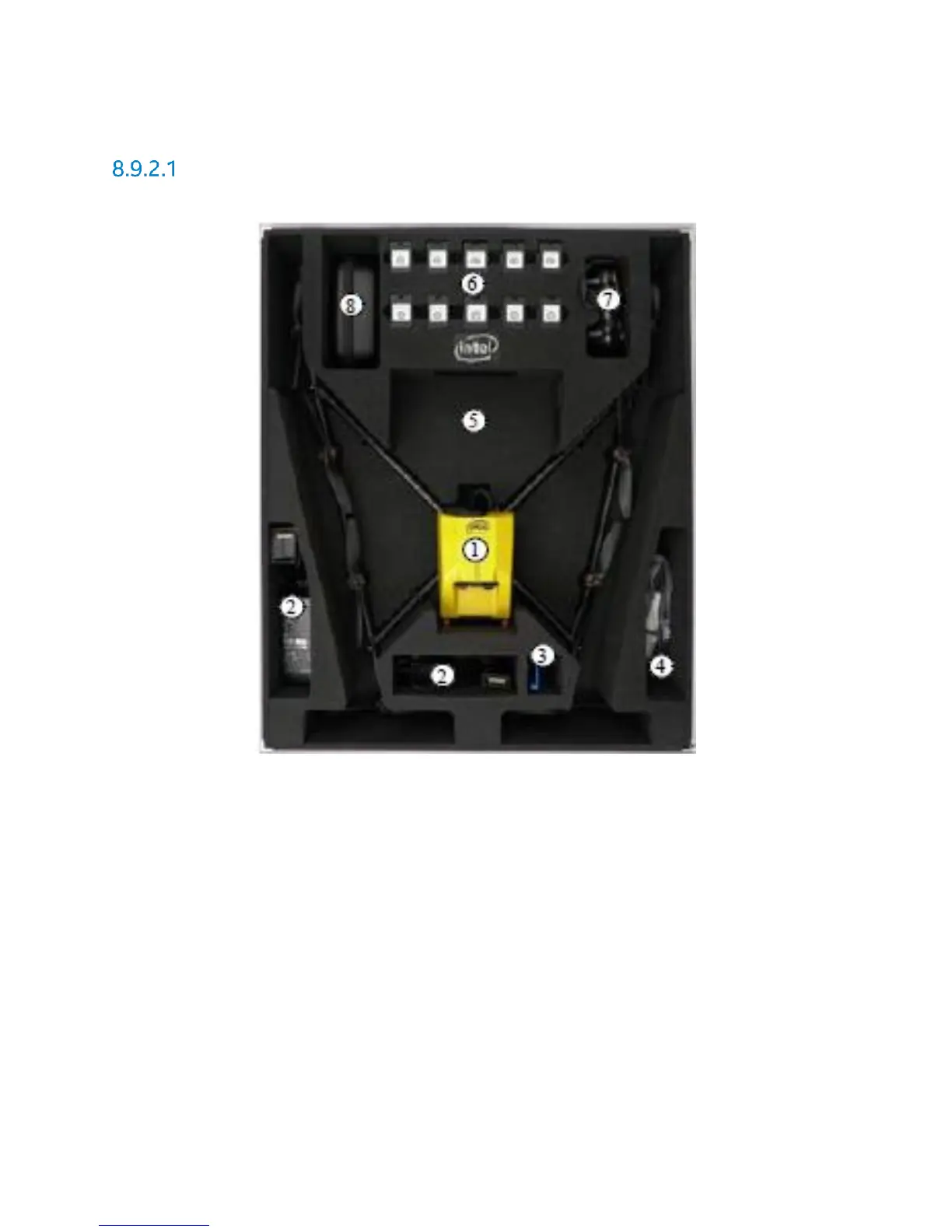

This case is used for all necessary parts of the Intel
®
Falcon™ 8+ UAS.
Following the numbers, this case contains:
1) Intel
®
Falcon™ 8+ UAS without payload
2) Power supply units for charging the Intel Power Packs
3) Space for accessories, e.g. sunglasses
4) Toolkit with spare Propellers (see below)
5) Space for the payload when mounted directly on the Intel
®
Falcon™ 8+ UAS.
6) Space for Intel® Powerpack™ Batteries (ship separately)
7) ICC gamepad
8) Space for extra equipment, e.g. video goggles

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
