Intel FALCON 8+ Flight Manual

SERVICE / MAINTENANCE
© 2017 Intel Corporation. All rights reserved. 121
REV 00
APR 2017
Intel
®

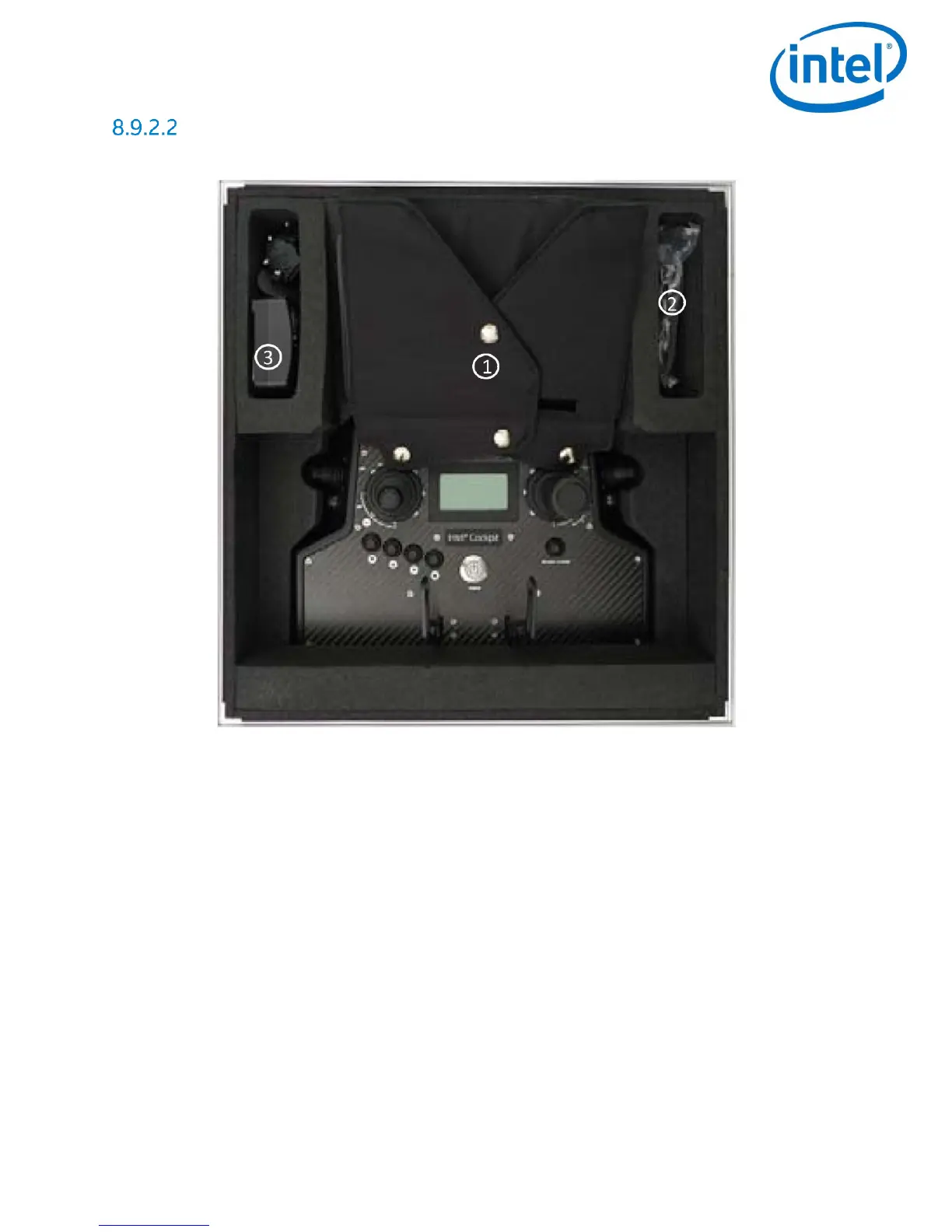

Cockpit GCS Case
Following the numbers, this case contains:
1) Intel
®
Cockpit GCS with mounted sun shade
For transporting the Intel
®
Cockpit GCS in the case, the sunshade must be arranged like shown.
This ensures the touch screen is extra-protected against scratches during transportation.
2) Additional storage space
3) Additional storage space (e.g. for an extra power supply)
Not shown: Reflective safety vest under the sunshade protected touch screen.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
