Intel FALCON 8+ Flight Manual

MAINTENANCE MANUAL
INTEL
®
FALCON™ 8+ UAS
SERVICE / MAINTENANCE
122 © 2017 Intel Corporation. All rights reserved.
REV 00
APR 2017

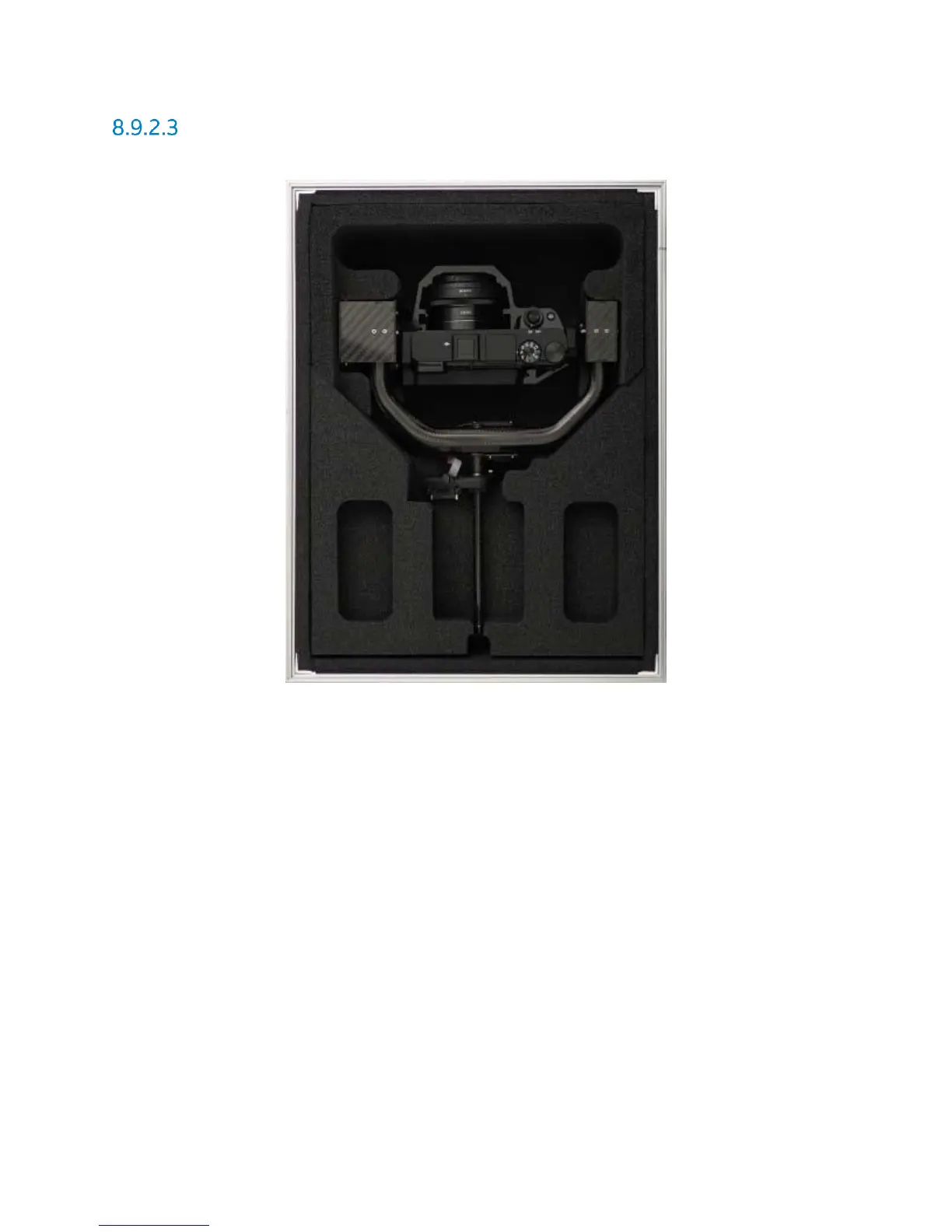

Payload Case
The payload of the Intel
®
Falcon™ 8+ UAS must be placed as shown on the image. Make sure
that it is placed conveniently inside of the foam bolster.
The foam bolster cover on top of the payload (not shown) must be used to secure the payload
when it is transported mounted on the Intel
®
Falcon™ 8+ UAS in the case.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
