Intel FALCON 8+ Flight Manual

SERVICE / MAINTENANCE
© 2017 Intel Corporation. All rights reserved. 123
REV 00
APR 2017
Backpack
The backpack is the optimal solution to transport the complete system over rough terrain or on
longer walks.

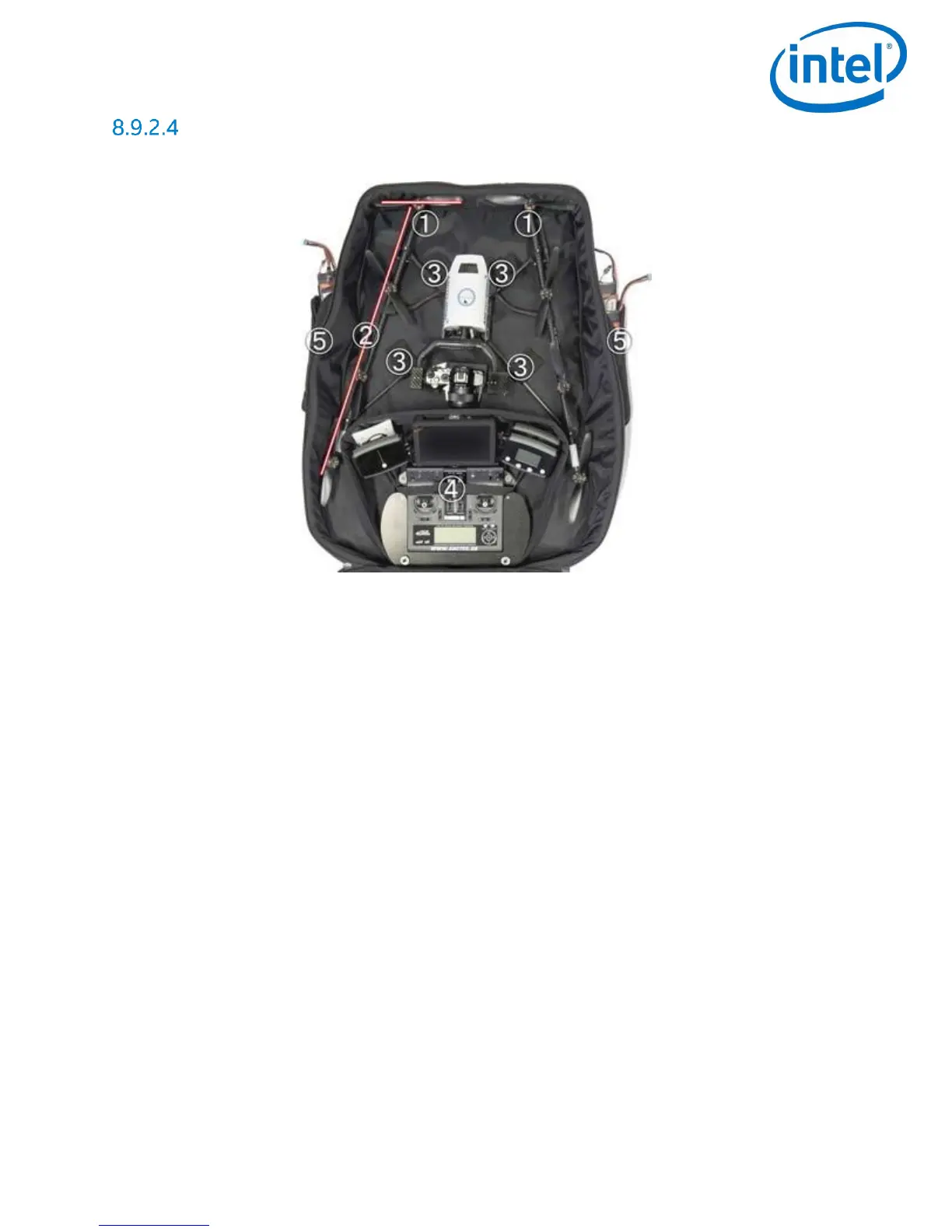

1) When placing the Intel
®
Falcon™ 8+ UAS into the backpack, always look to align the
bottom two Propellers with the Intel
®
Falcon™ 8+ UAS facing down parallel to the top of
the backpack.
2) The other Propellers are oriented parallel to the Motor Rails.
3) Use the four tie straps tapes to secure the Intel
®
Falcon™ 8+ UAS inside the backpack.
The tie straps must be very tight so that the system is "lifted" up and away from the Intel
®
Cockpit GCS.
4) At the bottom, there is space for the Intel
®
Cockpit GCS. Before placing the Intel
®
Cockpit
GCS inside of the backpack make sure the sun shade is arranged like shown to protect
the touch screen and that it is secured with the tie straps.
5) On the outside, there are two separate pockets for Intel
®
Powerpack™ Batteries.
6) Another larger pocket is located on the lid (not shown in the image) for additional
accessories, e.g. another Intel
®
Powerpack™ Battery, the Intel
®
Powerpack™ Battery
Charger or a notebook and the neck/shoulder strap.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
