WEIGHT / BALANCE / EQUIP
60 © 2017 Intel Corporation. All rights reserved.
REV 00
APR 2017

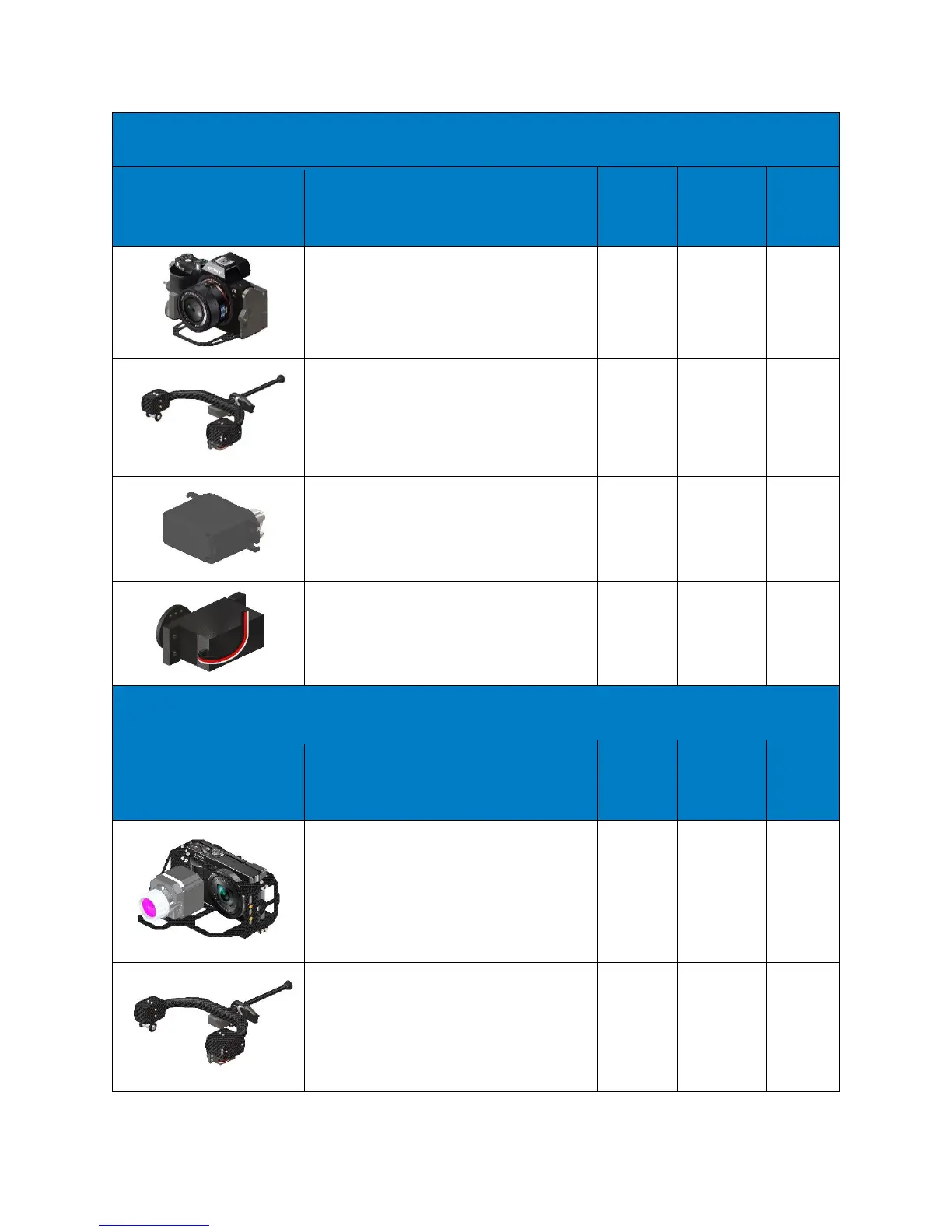

PAYLOAD: SONY A7R
ITEM
NOMENCLATURE
PART
NUMBER
MFG
QTY
PER
ASSY
Payload, Camera Sony A7R V1.0;
Inner Structure and Cable Harness
13752
Sony
1
Payload, Camera Gimbal,
Sony A7R V1.0
13747
Intel
1
Payload, Servo, Roll V1.0
13770
Intel
1
Payload, Servo, Pitch V1.0
13771
Intel
1
PAYLOAD: INSPECTION V1.0
ITEM
NOMENCLATURE
PART
NUMBER
MFG
QTY
PER
ASSY
Payload, Camera Mount, Inspection
V1.0;
Panasonic ZS50
FLIR Tau 2 640
13754
Panasonic
1
Payload, Camera Gimbal, Inspection
V1.0
13749
Intel
1
