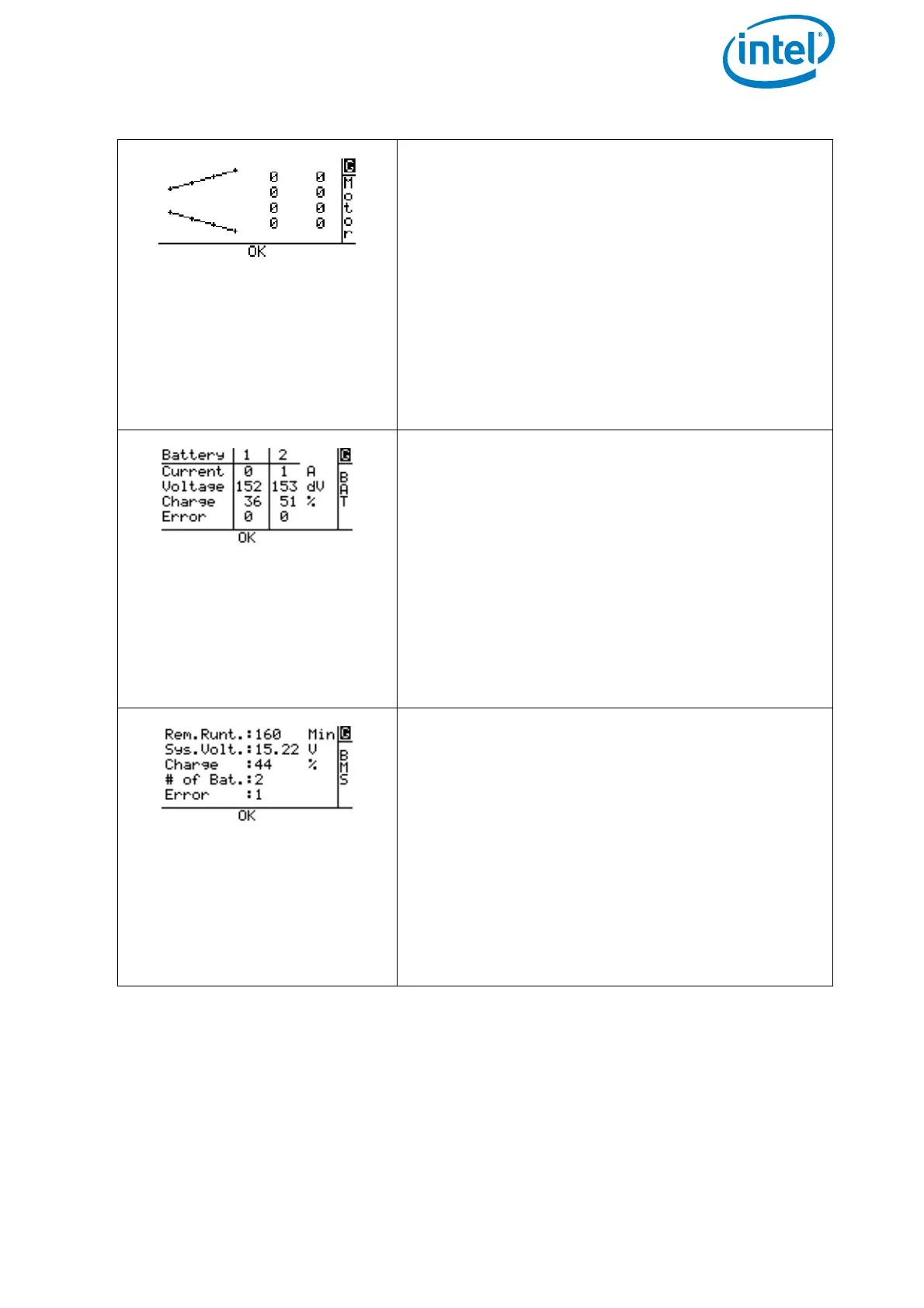

Motor Screen
The speed of each motor is displayed graphically
and indicated by a number. The numbers are not
rounds per minute, but rather a coefficient. The
screen can be used to analyze a motor defect
warning, see “Motor Failure Warning” on
page 155 for further details.
G = Flight Mode. Same information as on the Main
Screen.
0 = Motors are right now not spinning
OK = Status line. Same information as on the Main
Screen.
Battery Screen
Shows the actual state for each of the 2 batteries
inserted in the UAV
Current = Actual current of each battery in
ampere
Voltage = Actual voltage of each battery in
decivolt (dV)
Charge = Charge state of each battery in percent
Error = Number of errors
OK = Status line. This is the same information as
on the Main Screen.
BMS Screen
Shows the actual state of the UAV.
Rem. Runt.: = Remaining runtime of the UAV
in minutes
Sys. Volt.: = Actual system voltage Charge: =
Charge state of the UAV in percent
# of Bat.: = Number of batteries inserted in
the UAV
Error: = Number of errors
OK = Status line. This is the same information as
on the Main Screen.
Figure 4.2: Main Information Screens (Continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
