Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 32

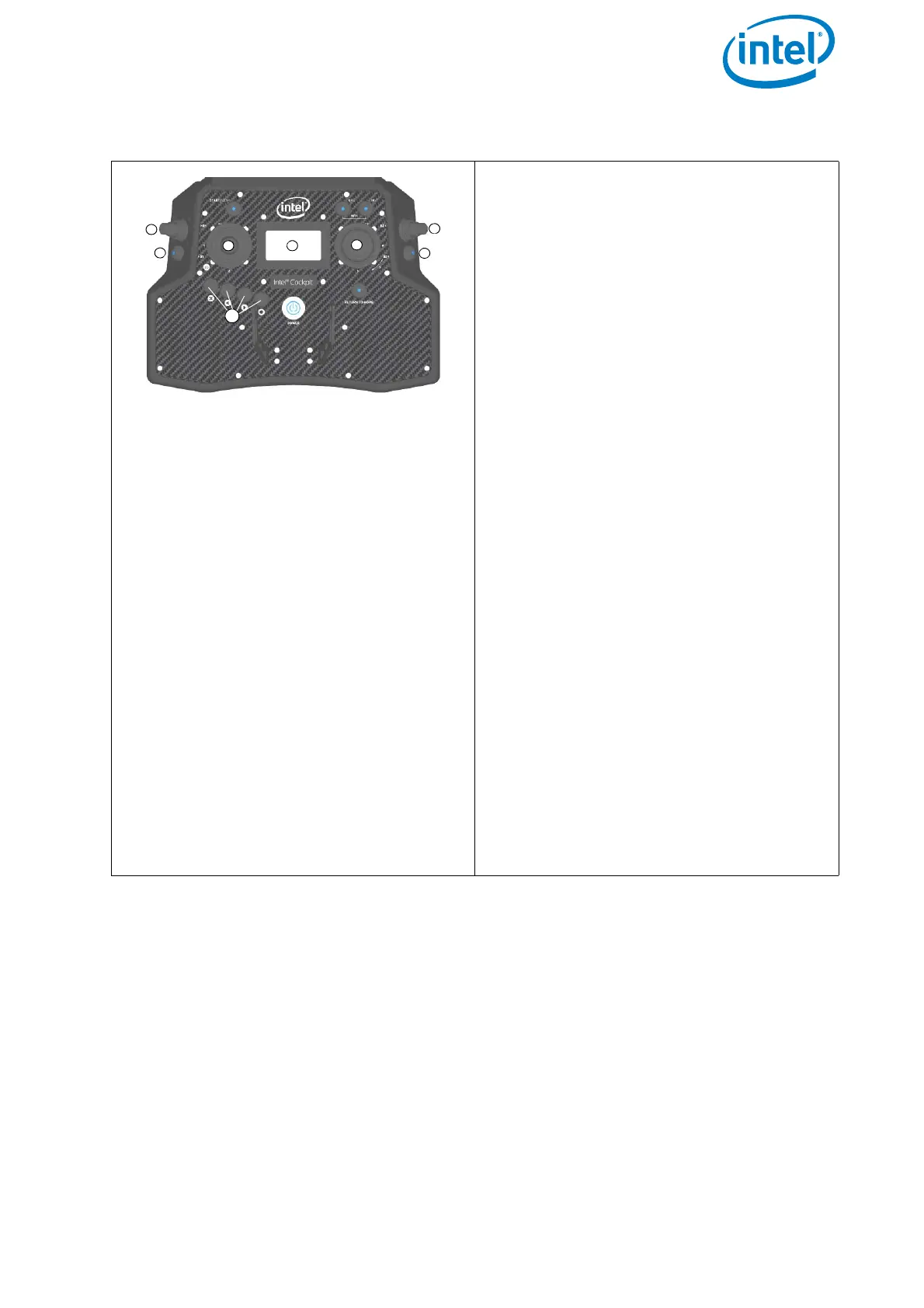

Figure 2.12: Camera Control via the Intel® Cockpit Controller (CTR)
All cameras integrated on the Intel® Fal-
con™ 8+ UAV can be controlled via the
CTR. Several switches on the CTR are
assigned to camera controls.
(1) Push Button B1: sets the camera to
predefined angles +/- 90°, +/- 45°
and 0° when R1 (4) is pushed
simultaneously (see below for details)
(2) Push Button B2: changes the function
depending on the connected payload
(3) Push Button B3: trigger button on top
of the left control stick (S1)
(4) Rocker Switch R1: camera tilt
(5) Rocker Switch R2: changes its
function depending on the camera
used
(6) Control Stick S2: turning the right
control stick (S2) controls the yaw
axis of the UAV.
(7) Status Display and related control
buttons
(8) ESC, LEFT, RIGHT, ENT: depending
on the payload, additional options
can be accessed via the Status
Display. Pushing ENT and selecting
Camera Options opens the respective
menu (see “Status Display” on
page 27 and see “STATUS DISPLAY”
on page 166).
For exact details regarding accessible
functions see the individual payload
descriptions.
1
2
3
4
5
6
7
8

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
