Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 35
The payload adapter is the connection
between the camera mount and the cen-
tral unit of the UAV. The payload adapter
is movable when mounted on the rod of
the camera mount and is connected by a
cable.
(1) Connector plug
(2) Adapter slot for the roll servo with
ball link connector inserted
(3) Releasing clip
(4) Knurled securing nut of the actively
stabilized camera mount

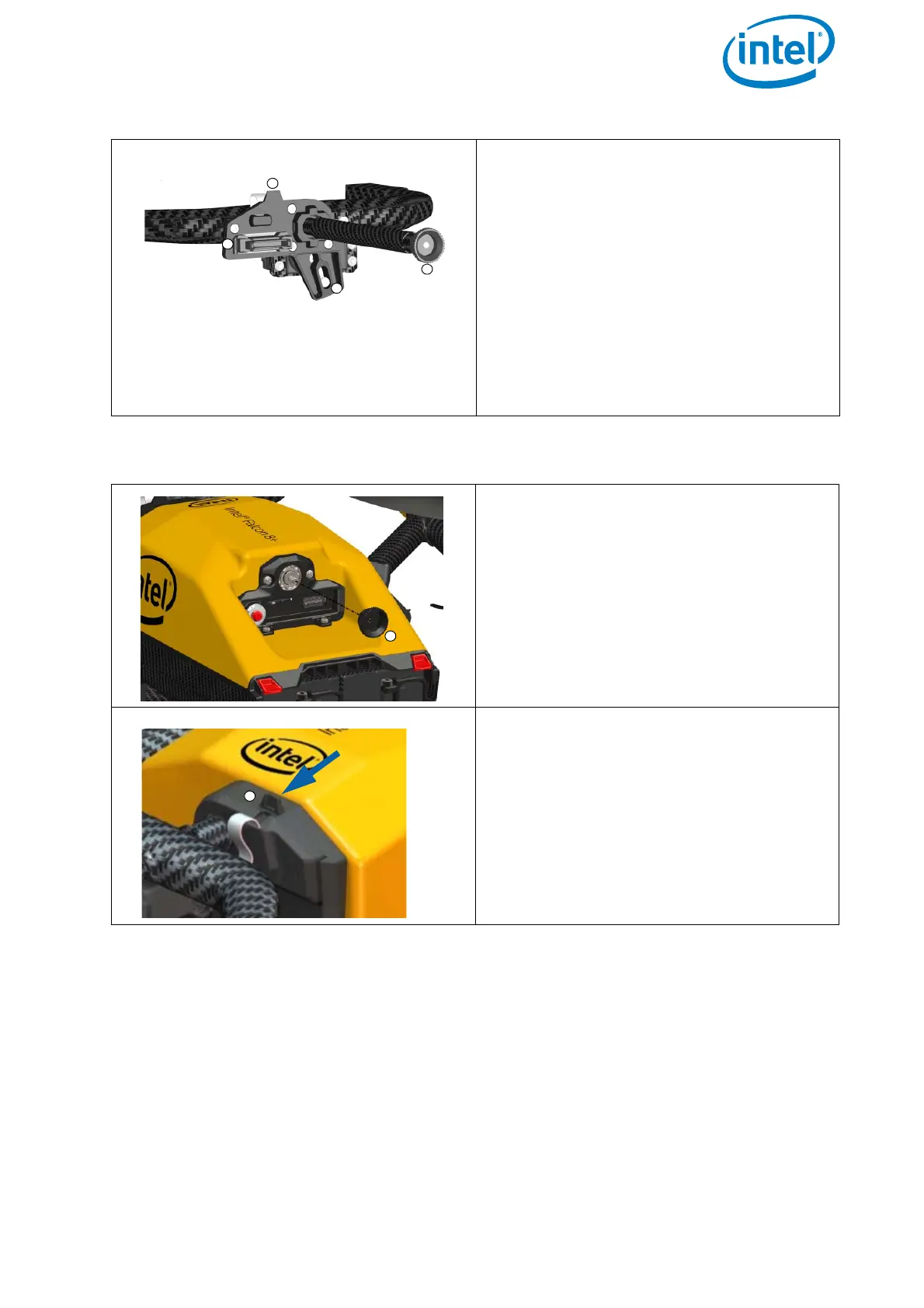

Figure 2.14: Removing the Camera Mount
To remove the camera mount:
1. Remove the knurled securing nut (1)
of the camera mount at the back side
of the central unit.
2. Carefully disconnect the payload
adapter with pressure against the
release clip of the adapter (2).
3. Disconnect the ball of the ball link
connector of the roll servo out of the
adapter slot.
4. Pull out the camera mount gently.
Make sure it comes out straight (not
at an angle)
Figure 2.13: Installing the Camera Mount (continued)
4
2
1
3
1
2

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
