Chapter 2: Physical installation
TruVision NVR 11 User Manual 13
Rack mounting
There is no rack mount kit for the recorder. The TVN 1108/TVN 1116 are rack
mountable using the rack mount ears delivered with the product. The four-channel
model is a desktop model and is not shipped with rack mount ears. See Figure 4 below.

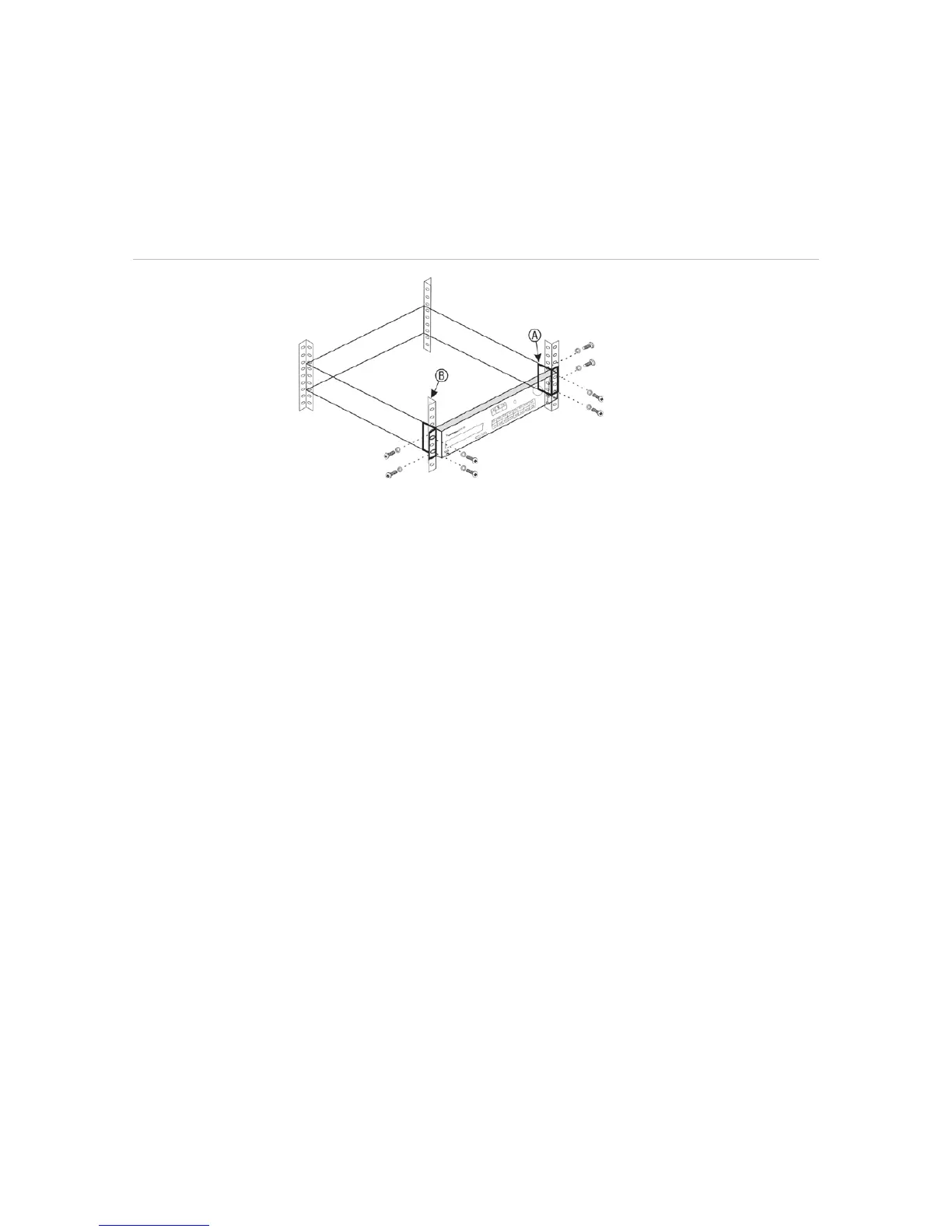

Figure 4: Rack-mount installation
To install the rack ears:
1. Attach the two small front-rack mount ears (A) to the recorder (supplied).
2. Attach the recorder to the front rails (B) (screws not supplied).
