rIQEasy_UM_9
75210300
2_
GB
_V
3_1
125

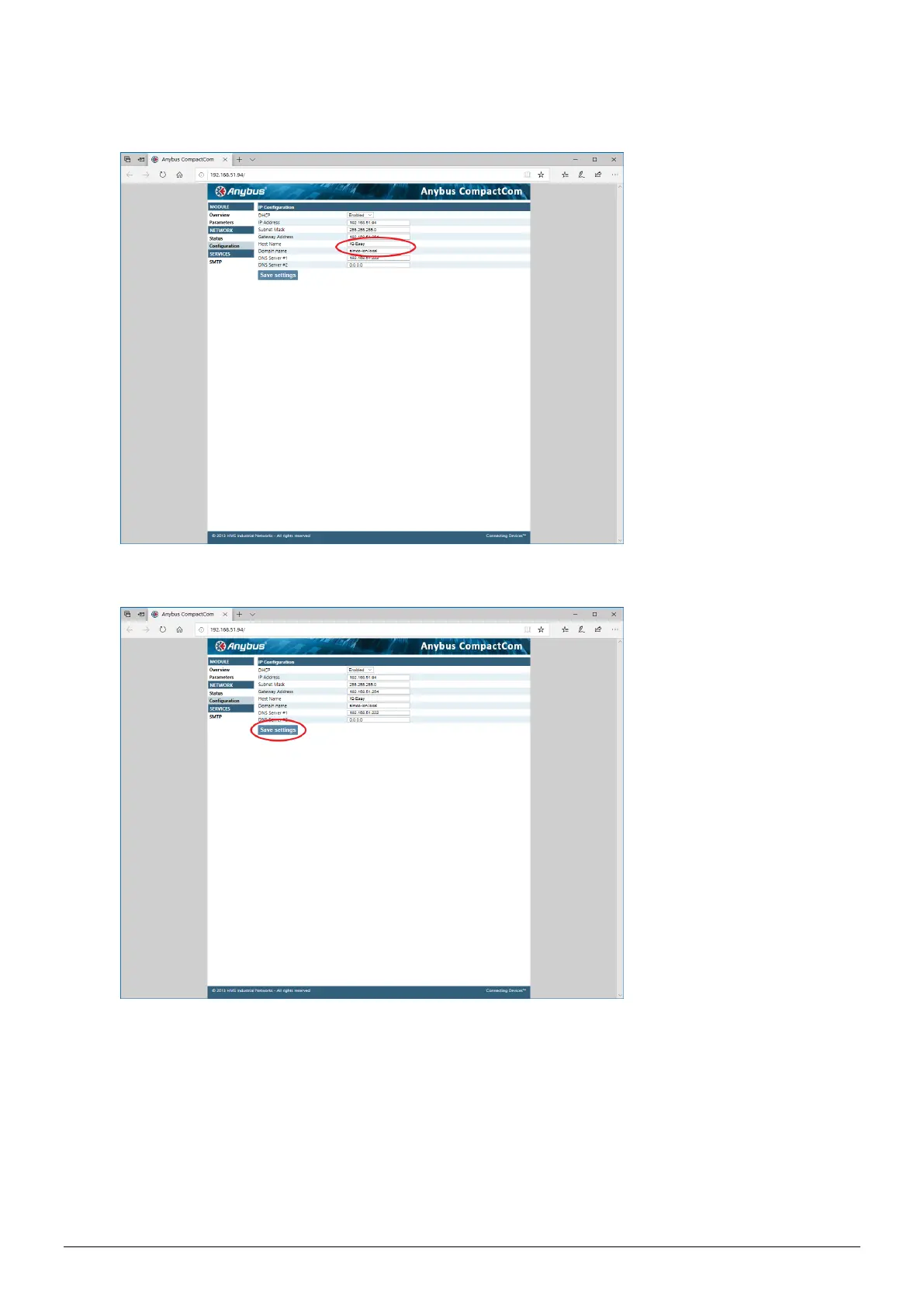

At “
Host name
”, enter the desired Host name, e.g. “
IQ
-Easy
”.
At “
Domain name
”, enter the network domain name (in this example “
simco-ion.local.nl
”).
Now press “
Save settings
”.
125
127
Table of Contents
Default Chapter
2
Table of Contents
2
Preface
5
Explanation of Symbols
5
1 Introduction
6
2 Description and Operation
7
3 Safety
9
4 Technical Specifications
10
5 Systems
12
Checks
12
General
12
Fitting the Manager IQ Easy
12
Electrical Installation
13
AC Variant
14
DC Variant
14
Connecting Devices
14
Machine I/O Input and Output Connections
15
Digital Outputs
15
Remote On/Off Input
16
Fieldbus Connection
16
Ethernet Connection
16
Serial Communication COM Ports
17
Installing the Protective Cover
17
Mounting the Manager in a Machine Panel
17
6 Commissioningand Operation
22
Terminology Used
23
Switching on the Manager IQ Easy
24
The Main Screen
25
Devices
27
Operating Modes
28
Standby and Run
28
Autorun Mode
28
Remote On/Off
29
Status Information
30
Userlevels
32
Selecting a Different (Userlevel)
33
Special Service Access Codes
35
Device Information Screens
36
Tab "Information" (Information) / "Settings" (Settings)
36
Tab "Graphics
39
Tab "Actionlog
40
Tab "Datalog
41
Tab "Maintenance
42
Changing a Parameter
44
Overview of HMI Parameters
49
Overview of Backplane / Extensionbox Parameters
52
Overview of Common Device Parameters
55
Switching off the Manager IQ Easy
57
Changing some Commonly Used Parameters
59
Setting the User Language of the HMI (Expert User)
59
Setting the System Time (Expert User)
60
Setting the Date Display ((Expert User))
61
Setting a Password for the 'Advanced User' User Level
62
Setting a Password for the 'Expert User' User Level
63
Resetting the Advanced User Password (Expert User)
64
Resetting the Expert User Password (Expert User)
65
Users Standby/Run Control Level (Expert User)
66
Setting Logging of Sensor Peak Values (Expert User)
67
Setting the Run State Display Colour Green (Expert User)
68
Reading Network IP Address (Expert User)
69
Linking and Disconnecting Devices (Expert User)
70
Linking a Member with a Sensor Device (Expert User)
70
Linking a Sensor Device to a Bar (Expert User)
72
Activating the CLFB Voltage Control (Expert User)
75
Disconnecting a Coupled Bar from the Sensor Device (Expert User)
77
Disconnecting a Sensor Device from a Bar (Expert User)
79
Disconnecting a Device from a Deleted Sensor Device (Expert User)
82
Disconnecting a Sensor Device from a Deleted Bar (Expert User)
84
Activating and Deactivating Sensor Segments (Expert User, Sensor Version V5_2 Only)
87
Activating and Deactivating Sensor Segments Via the Settings Screen (Expert User)
87
Activating and Deactivating Sensor Segments Via the Graphics Screen (Expert User)
88
Enabling and Disabling Sensor Segments (Expert User)
89
Enabling and Disabling Sensor Segments Via the Settings Screen (Expert User)
89
Enabling and Disabling Sensor Segments Via the Graphics Screen (Expert User)
90
Enabling and Disabling Sensor Segments Via a Linked Bar (Expert User)
91
Checking and Monitoring System Configuration (Expert User)
92
Switching on the System Configuration Check for the First Time (Expert User)
93
Saving Custom System Configuration (Expert User)
94
Temporarily/Permanently Deactivate System Configuration Check (Expert User)
95
Re-Enabling System Configuration Check (Expert User)
96
Temporarily Disabling System Configuration Alarm Notification (Expert User)
97
Setting up an FTP Connection (Expert User)
98
Standard FTP Login Username and Password
98
Users FTP Login Username and Password
98
Setting up an FTP Connection with Edge
98
Setting up an FTP Connection with Iexplore
98
Setting up an FTP Connection with Windows Explorer
100
Setting up an FTP Connection with Filezilla
102
Copying Log Files to a USB Stick
106
Copying Log Files Including Simco Debug Files to a USB Stick (Service)
107
Backing up System Parameters to USB (Expert User)
108
Restoring System Configuration from a Backup (Expert User)
110
Searching for Newly Added Extension IQ Easy Units
112
Searching Manually for Extension IQ Easy Units
112
Searching Manually for Extension IQ Easy Units
113
Disconnecting a Device (Expert User)
114
Device Disconnected Notification
114
Restoring a Disconnected Device
115
Removing the Disconnected Device from the IQ Easy System
116
Replacing a Defective Device (Expert User)
117
The Device Information Is Still Available in the Memory of the Manager IQ Easy
117
The Device Information Is Stored on the System
117
There Is no Longer any Information from the Defective Device Available for the Manager IQ Easy
118
Calibrating a Bar (Expert User)
119
Fieldbus Settings (Expert User)
120
Setting up the Use of a DHCP Server
120
Setting the Network Parameters with Ipconfig Tool (Profinet and Ethernet/Ip Only)
121
Setting the Fieldbus Network Parameters Using a DHCP Server
122
Setting the Fieldbus Network Parameters Without Using a DHCP Server
123
Setting the Parameters "Domain Name", "Host Name" (Profinet and Ethernet/Ip Only)
125
Setting the Network Device Name (Profinet Only)
127
Setting the "Fieldbus Device Ports" Mapping Parameter(S)
130
Setting the "Fieldbus Smart Sensor Data Msg" Parameter
134
Meaning of Status Leds Fieldbus Module
135
Meaning of Status Leds Ethetnet/Ip Fieldbus Module
135
Meaning of Status Leds of the Profinet Fieldbus Module
136
Setting up PLC for Fieldbus Communication
136
7 Functional Check
137
Warnings
137
Alarms
137
Data Logging (as of Software Version V1.1.0 of the Manager)
137
Copying Data from Internal Memory to PC
138
Data Logging to USB
138
8 Maintenance
139
9 Solving Malfunctions and Problems
140
10 Repairs
143
11 Scrapping
143
Spare Parts
144
