5.4.1 AC variant
- Plug the power cable into the IEC connector and plug the outlet plug into an earthed wall outlet.
5.4.2 24V DC variant
– Connect the 24 V DC power connector as shown in figure 5.
– Connect the earthing (ground) point with an earthed machine part or a shared earthing point.

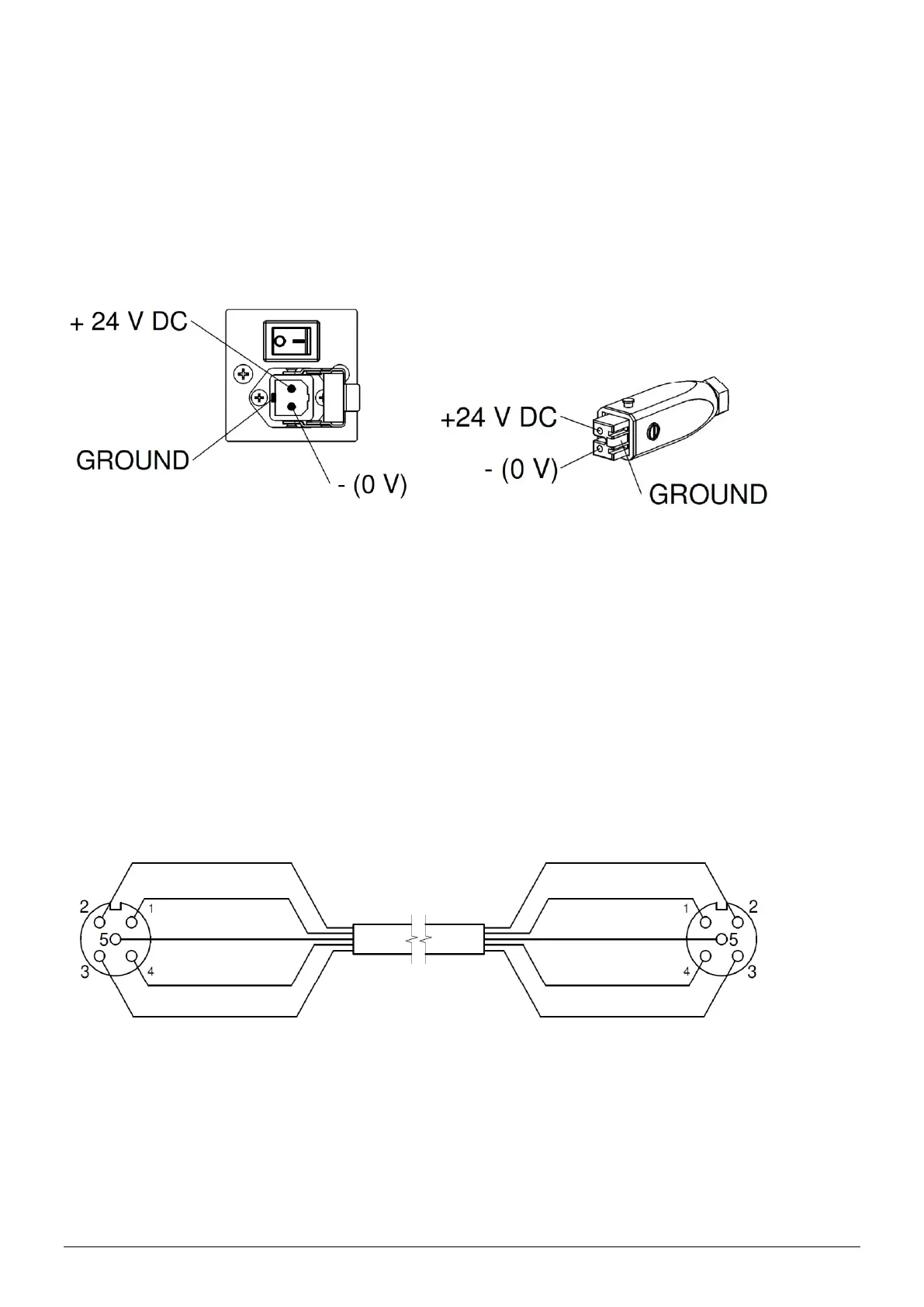

Figure 5, 24 V-input Manager IQ Easy
5.4.3 Connecting Devices
Six M12 Device ports are available for connecting various Simco-Ion Devices. Connect the
Devices with the appropriate M12 Device ports 1 to 6.
Connecting is possible using standard cables with M12 5-pin male-female connectors.
The length of the cables is limited since the supply voltage of the Devices is also routed through
this cable. If the desired length exceeds the maximum specified length, a cable with a larger
diameter for the used wires may be selected, so that the required supply voltage is still available
during operation.
For this, Simco-Ion provides separate M12 5-pin connectors for connecting these cables
(the connection between the Manager and the Device is 1:1) see also Figure 6.
Figure 6, Wiring Device to Manager IQ Easy and Extension IQ Easy
If an old generation (non-IQ) Device is used, preferably connect this with ports 5 or 6 IQ/non-IQ.
These ports can be configured so that Remote On/Off and operation OK feedback can be processed
by the Manager IQ.
For this, use regular 1:1 male-female cables with M12 5-pin connectors as well.
