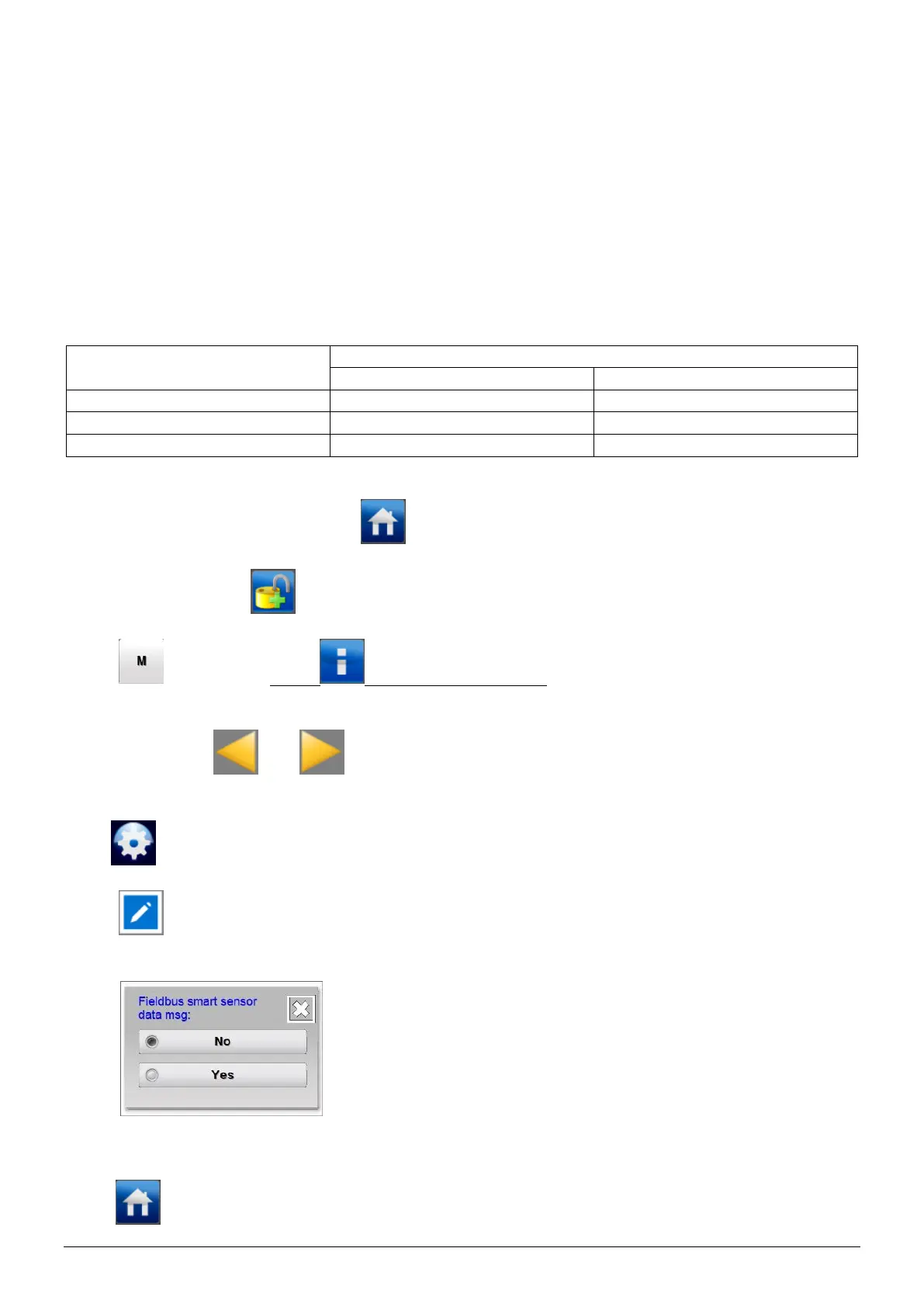

6.31.6 Setting the “Fieldbus smart sensor data msg” parameter
This parameter determines how the various available sensor segments are displayed in the
fieldbus messages. If the “Fieldbus smart sensor data msg” is set to “No”, the segments will
be mapped 1 to 1 with the messages. If the parameter is set to “Yes”, the first active sensor
segment will be in the first message, the second active sensor segment will be in the second
message, and so on.
To clarify this, we take the following example. We have a sensor rod with 6 docking positions.
A sensor is only placed at positions 1, 3 and 6, positions 2, 4 and 5 are empty. There are 3 sensor
data elements defined for the Fieldbus.
Fieldbus sensor data position
“Fieldbus smart sensor data msg”
To set the “Fieldbus smart sensor data msg” parameter, perform the following actions:
If necessary, go to the main screen (Home).
If necessary, log in as (User level, Expert), see Section 6.9.
Press (TabM) and press (Info) within 1 second. The Information screen of the
Backplane will now be opened.
Browse using the and buttons to the page with the parameter “Fieldbus smart
sensor data msg” (You can also use the large non-visible areas to browse).
Click (EditMode) to change the parameter.
Press (Edit) after the “Fieldbus smart sensor data msg” parameter. The following
screen will be opened.
Select the desired setting. The screen will now close.
Press (Home) to return to the main screen and log in again as a Basic user (see Section 6.9).
