Jands Event Plus User Manual

10 Event V3 Manual
General Description
1.00 General Description of Major Parts
1.10 Manual Control Section
This section is used to control the level of individual desk channels. There are 2
faders (Preset 1 and Preset 2) and a Flash button with an inbuilt level indicator per
channel. There is also a writing strip below the Flash buttons.
1.20 Assign Master Section
This section is used to control the playback of Memories, Chases and crossfade
Stacks. There are either 12 or 24 Assign Masters (depending on the desk type) and
a corresponding number of Flash buttons. The LCDs located above the Assign
Master faders display labels for the items being controlled.
1.30 Master Section
This section includes the Grand Master fader and DBO button, Flash Master fader
and selector switch, Preset Master faders, and a Chase rate control. There is also a
Hold / SMaster fader and switch.
1.40 Menu Control Section
The Event menu system is used to enter and modify settings for Memories, Chases,
Stacks, Pages and Files while recording and during playback. It is also used to
configure the various setup options.
1.50 Back Panel
All power and control connections are made on the rear of the console. This is also
where option panels are fitted. Possible options include:
* 60 way analogue output option
* 30 way analogue output extender option
* MCard option
* MCard/VDU (Mono, CGA, EGA)
* MCard/VDU (VGA)
* Floppy disk drive

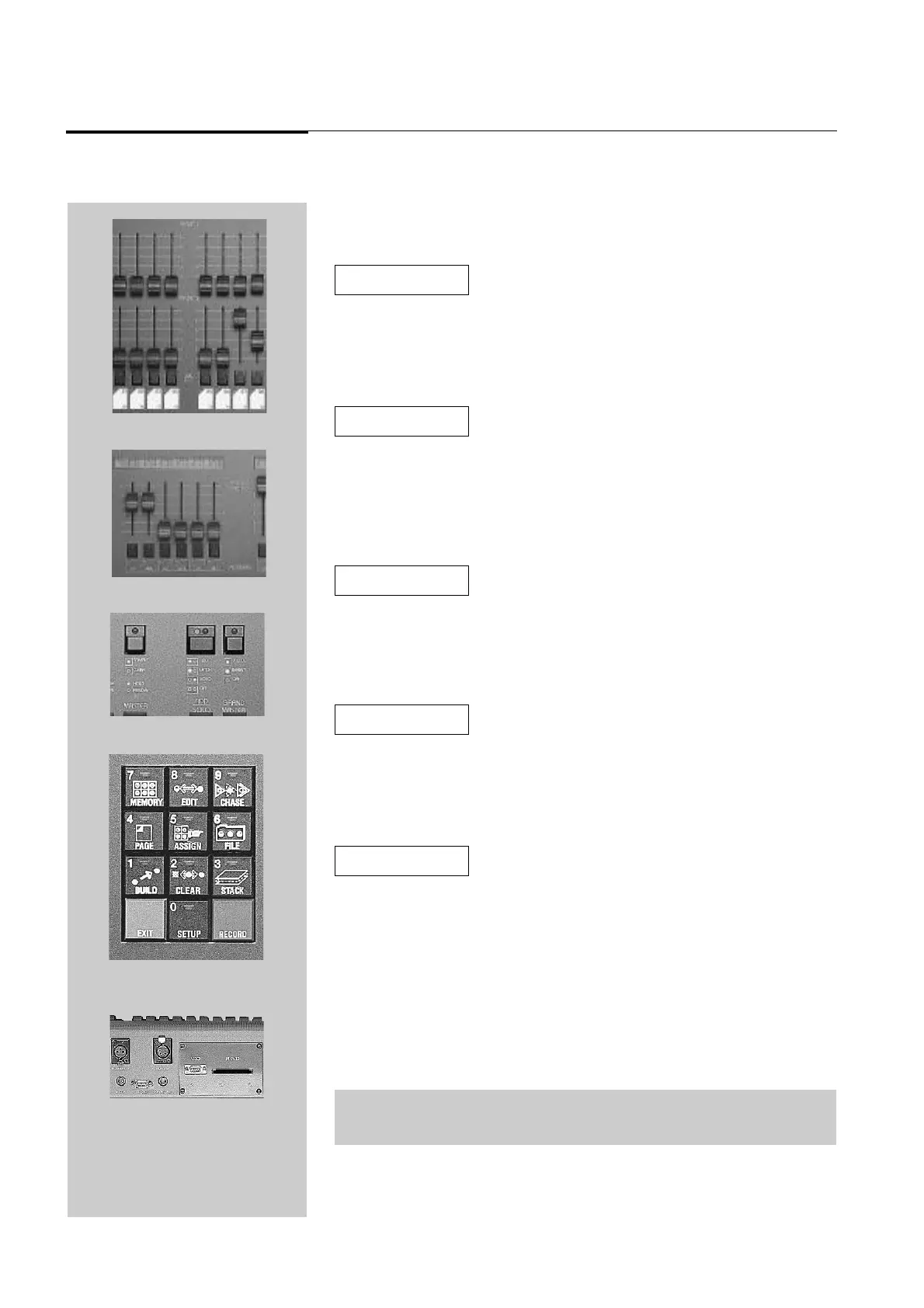

Diagram 1A
Diagram 1B
Diagram 1C
Diagram 1D
Diagram 1E
NOTE: The keyboard and RS 232 Connections on the rear of the Event Plus are for factory
use only.
☞
☞
☞
☞
☞
▲ 1A Manual control section
▲ 1B Assign master section
▲ 1C Master section
▲ 1D Menu control section
▲ 1E Back panel showing M
card option fitted
