86 Event V3 Manual
Control Functions - Playback
13.00 Playback
The Event offers a combination of manual and automated playback controls which
are both powerful and easy to use:
- Two banks of Presets of channel faders provide direct control of each channel.
- The Assign Masters control individual Memories and Chases.
- A pair of Assign faders can control a Stack containing any number of
Memories and Chases.
- Flash buttons on each channel and Assign Master.
- The Hold/Smaster fader can be used for any one of four functions: Assign
Master, Snapshot, Assign Submaster or manual Crossfader.
- Overall controls are provided for: Preset 1 & 2, Flash buttons, DBO, Chase rate
and Grand Master.
13.10 Controls
13.11 Preset Faders
There are two rows of Presets faders on the Event. The top row of faders is Preset
1 and the bottom row is Preset 2. These faders can be used to smoothly fade a light
to the desired level. The output level produced by the preset faders is dependent on
the level of the Grand Master and the P1 (or P2) Master fader.
Example:
• Bring the Grand Master and P1 Master faders to 10 (100%).
• Move the Channel 1 Preset fader to 100% and you should see the lights
connected to that channel fade up to full level.
• Now fade up Channel 2 to 5 (50%) and check that the lights connected to
Channel 2 are at about 50% level.
• Finally fade the P1 Master down and up to see how it scales the Channel
Preset faders.
13.12 Assign Masters
The Assign Master faders provide a powerful array of features. Underneath each
fader is a Flash button with LED and above the fader is a two line, four character
LCD window. These faders can be used to:
* To control a single Memory
* To control a single Chase
* To control a Stack made up of Memories and / or Chases
13.13 Flash Buttons
The Flash buttons operate in three ways, depending on the setting of the Add / Solo
master switch:
* Add : The Memory goes to the level set by the Add / Solo Master.

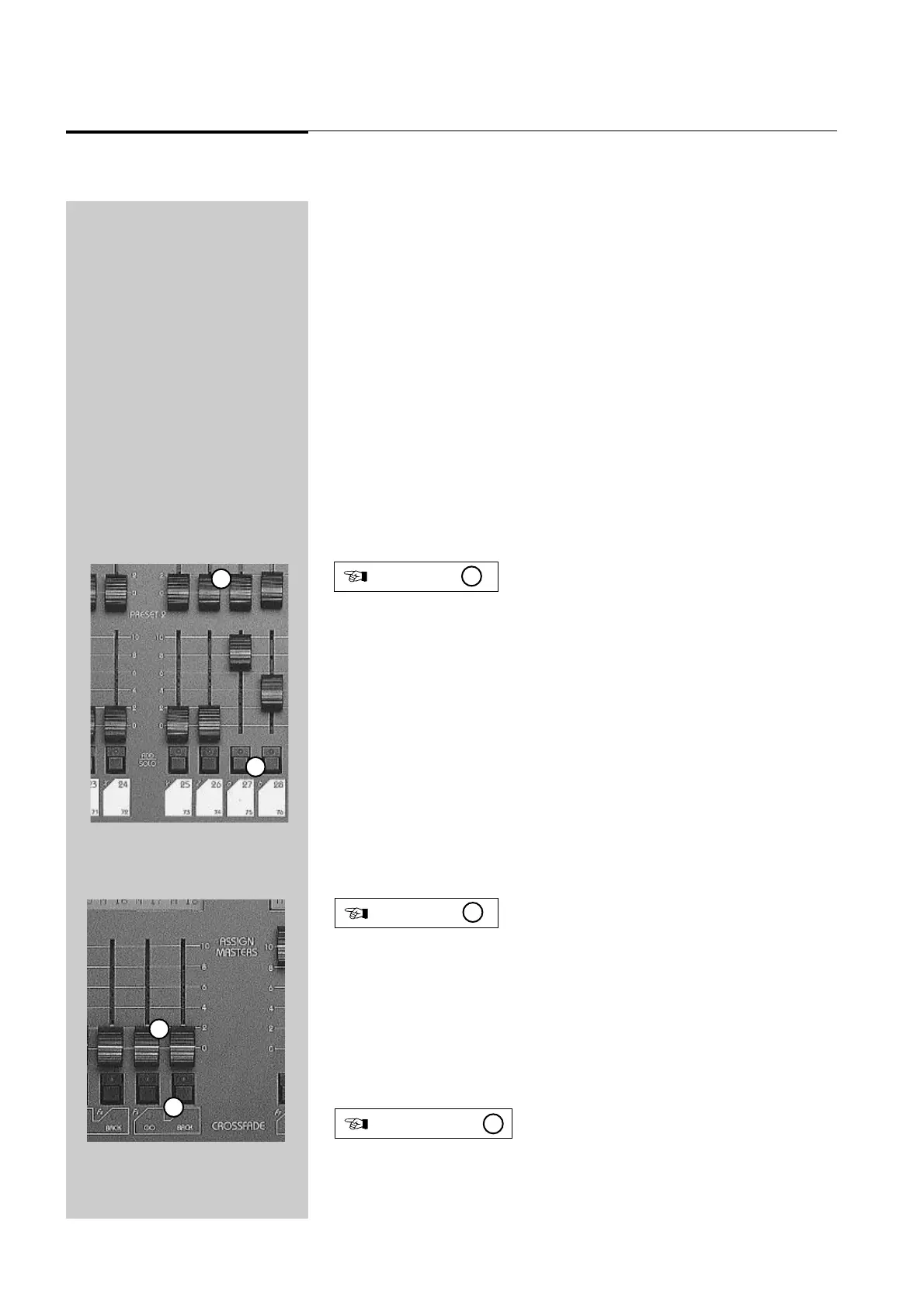

Diagram 13A
1
Diagram 13B
2
Diagram 13A, 13B 3
13B Assign faders / Flash buttons
3
2
13A Preset faders / Flash buttons
3
1
▼
▼
