6.00 Manual Controls
6.10 The Presets
The Preset faders are used to set up lighting levels during a show and while
programming Memories and Chases. It is possible to run a show entirely on the
presets but generally these controls are used for recording or to make impromptu
changes to the stage lighting.
6.20 Preset Faders
There are two rows of Presets faders on the Event. The top row of faders is Preset
1 and the bottom row is Preset 2. These faders can be used to smoothly fade a light
to the desired level. The output level produced by the Preset faders is dependent on
the level of the P1 (or P2) Master and the Grand Master fader.
Example:
• Bring the Grand Master and P1 Master faders to 10 (100%).
• Move the Channel 1 Preset fader to 100% and you should see the lights
connected to that channel fade up to full level.
• Now fade up Channel 2 to 5 (50%). Check that the lights connected to
Channel 2 are at about 50% level.
• Finally fade the P1 Master down and up to see how it scales the Channel
Preset faders.
6.30 Flash Buttons
Flash buttons are located below each Channel and Assign master fader. They
perform three functions:
* Flash: The buttons are used to momentarily flash a channel to the level set by
the Add/Solo Master fader. The type of operation of the Flash button depends on
the setting of the Add / Solo Master switch.
* Inhibit: To prevent a channel from appearing in any output, hold the Flash
button down and press the DBO button. Repeat this procedure to cancel inhibit.
When a channel is inhibited, the channel LED and DBO LED flash together.
* Text: When a menu is opened and with the cursor in the Label field, the Flash
buttons are used to type various characters as marked on the front panel.
6C Grand
master
▼
6E Add/Solo
switch
▼
6D Flash
buttons
▼
6A Preset
faders
▼
6B Preset
master
▼

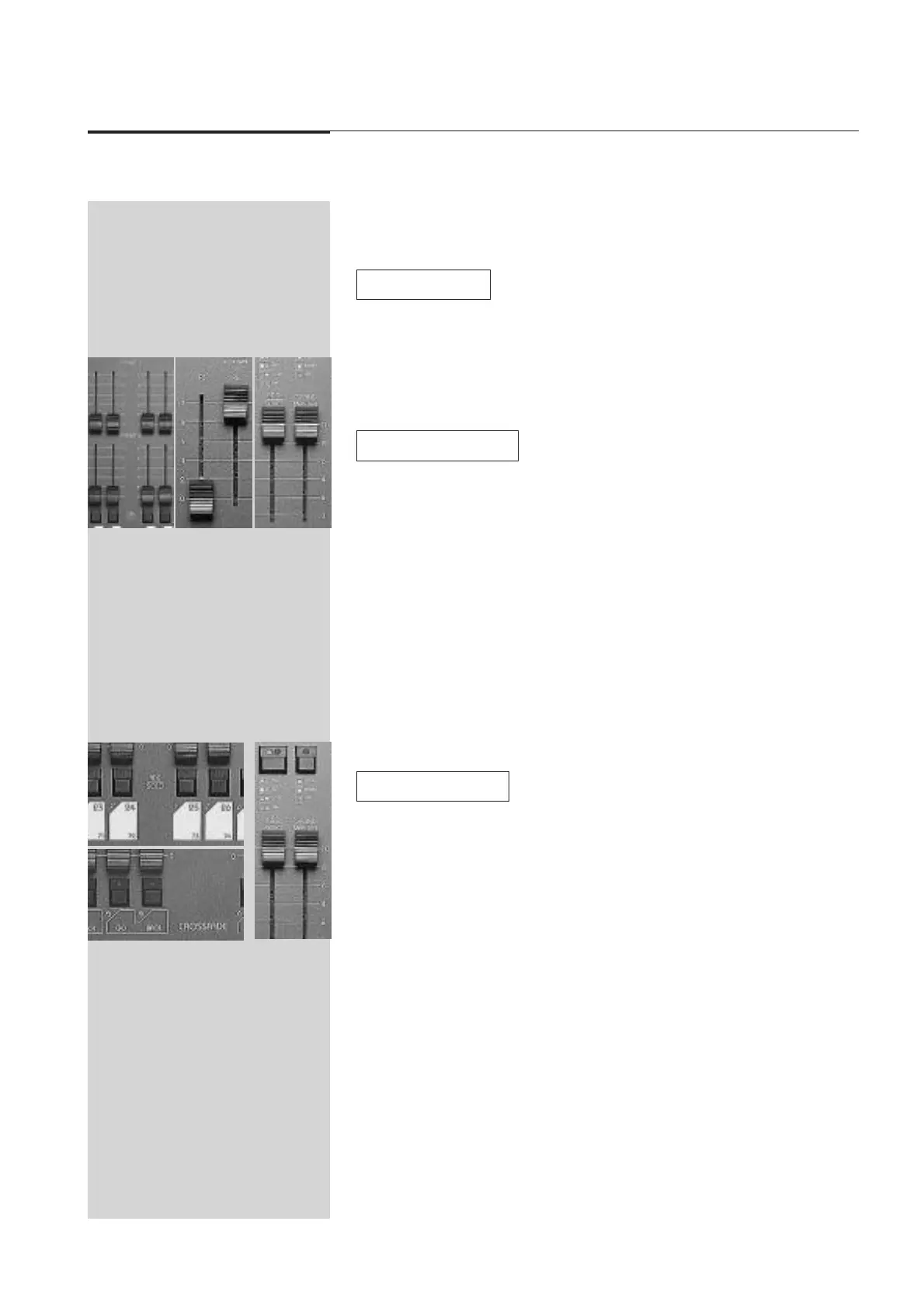

Diagram 6A
Diagram 6A, 6B, 6C
Diagram 6D, 6E
☞
☞
☞
