Press Yes to proceed.

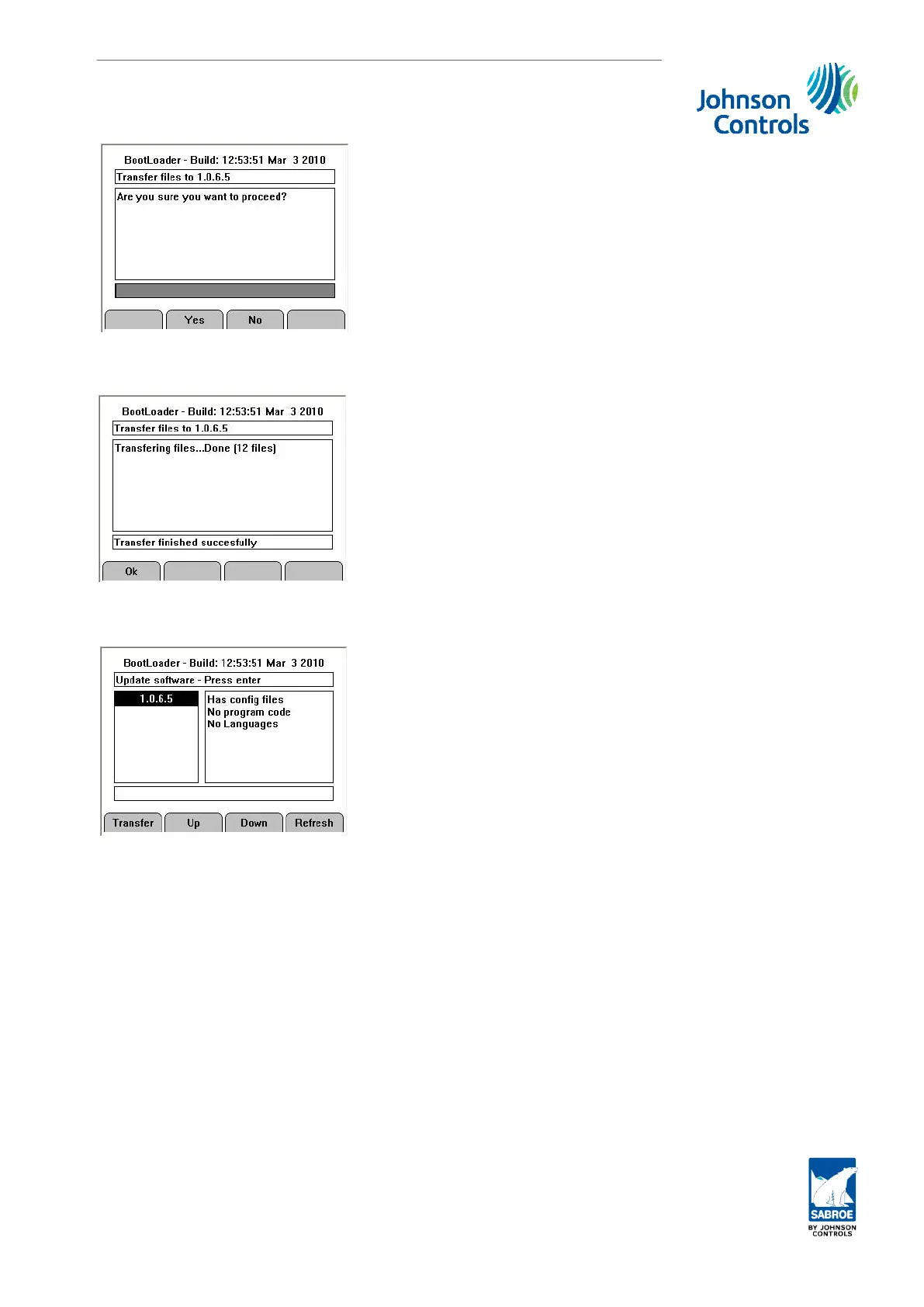

When the transfer is completed, press OK and Unisab III will display “Has config files”.

Now you can remove the SD card from Unisab III, insert it in your PC, copy the files to a drive

position or import the files directly into e.g. U Set. This transfer operation provides you with

all 10 .xml files plus a vfd.dat and a watchdogLog.log file. Only four of these files are accessi-

ble by U Set as described in 8.8. U Set configuration tool.

The following files can be downloaded and edited by U Set:

• Configuration.xml - this file contains the Unisab III configuration and calibration val-

ues

• AnalogInput.xml - this file contains shutdown/alarm limits and set points

• PIDSettings.xml - this file contains PID regulator parameters, like Ti, Td and Ts

• Timers.xml - this file contains the Unisab III timers setting

The following .xml files will be downloaded too:

• UniqueConfig.xml - (configuration file, version info, IP setup)

• HMIsettings.xml - (configuration file, favourite’s setup)

Unisab III (boot) and communication set-up

Engineering manual - Unisab III 1.10

001930 en 2014.09
