Section 19 Maintenance & Inspection 19-58
19.11.1 Starting the equipment with the OS in the D
drive
Start this equipment with OS in the D drive by using the following procedure.
1 Turn on the power supply of this equipment while pressing the [SILENCE] key and the
[ZOOM OUT] key of the trackball operation unit simultaneously. The power is supplied
to this equipment.

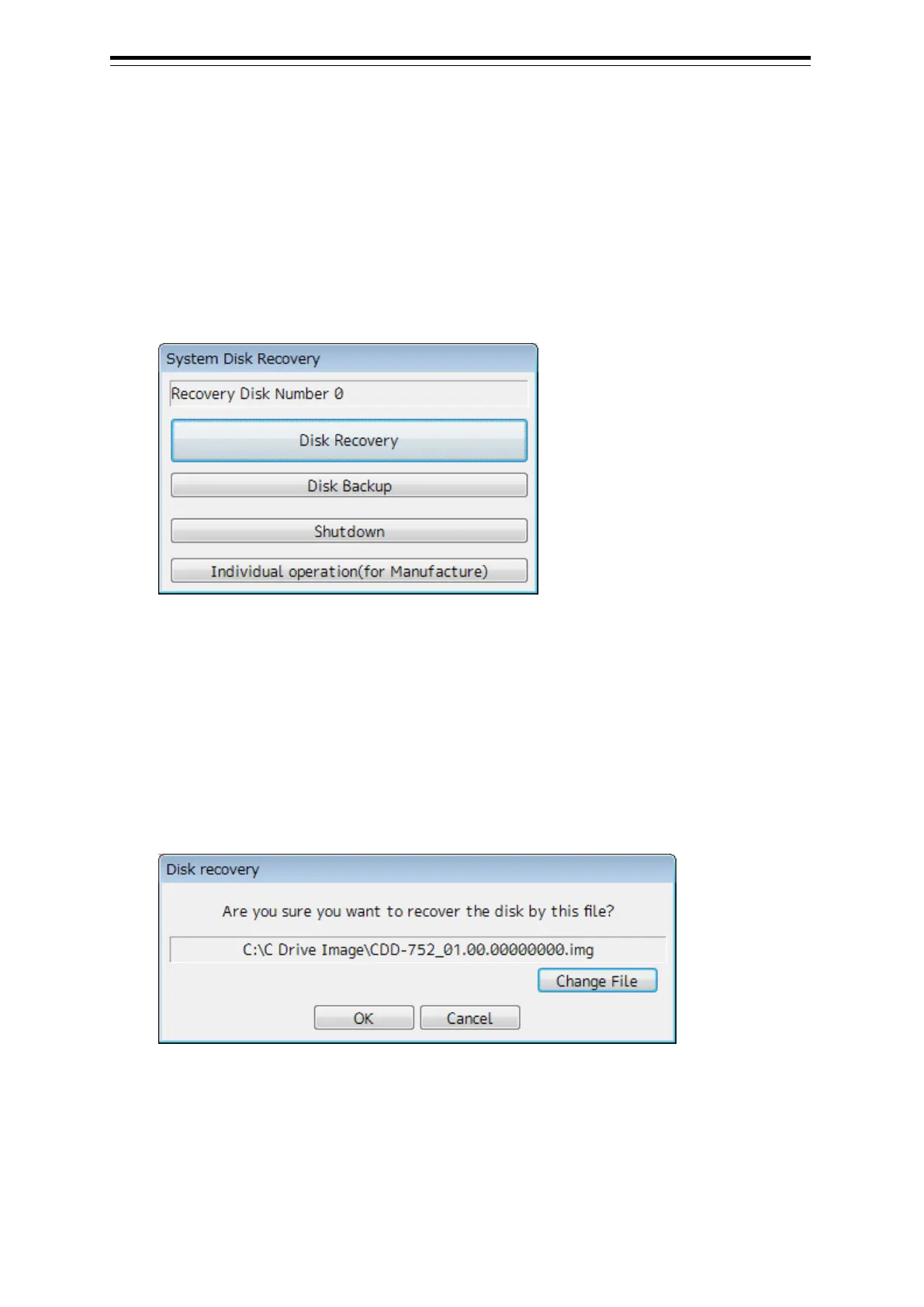

When the equipment starts, the following screen is displayed.
The SSD recovery tool can be executed in this state.
19.11.2 Executing the SSD recovery tool
Write back the images in the C drive by executing the SSD recovery tool.
1 Click on the [Disk Recovery] button on the screen that is displayed at activation from
the D drive.
The following screen is displayed.
2 Select an image file to be written back to the C drive.
Normally, proceed with the next step with the image file that is currently displayed.
To specify a different image file, select a required image file from the list that is displayed by
clicking on the [Change File] button.
