JRC ECDIS User Manual

Appendix B Menu List and Materials B-70

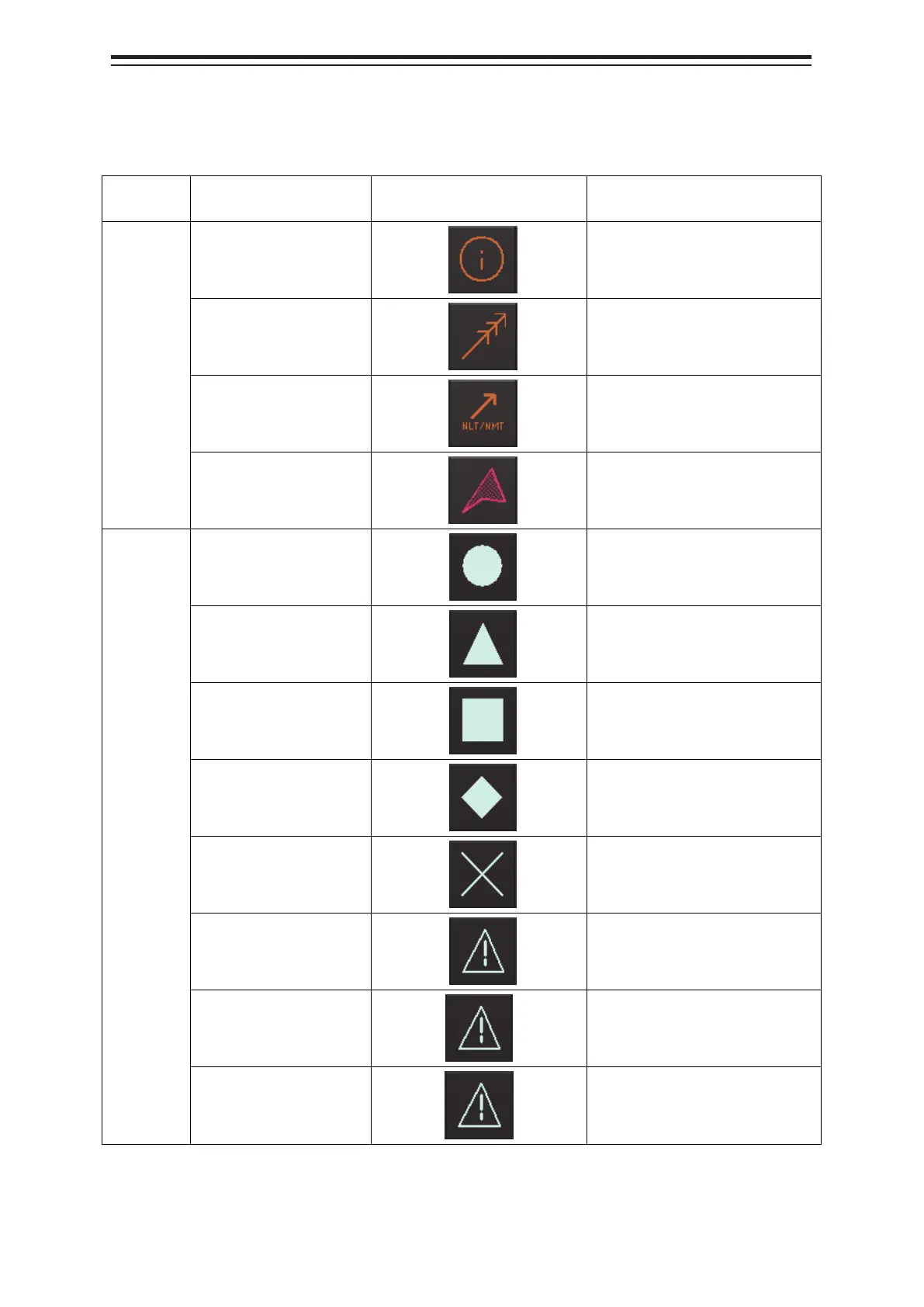

B.5 Icon Button List for User Chart
The lists of icon buttons that are used for user chart are provided below.
Button
name
Icon name Icon display example
Alert generated when the own
ship approaches the object
[Mariner's
Mark/Line]
button
Information mark No alert
Tidal stream No alert
Clearing line No alert
Highlight No alert
[Symbol]
button
Circle No alert
Triangle No alert
Square No alert
Diamond No alert
Multiple mark No alert
Warning symbol
Crossing a danger (dangerous
symbol)
Warning symbol
Crossing a User defined
Warning Object
Alert symbol
Crossing a User defined Alert
Object

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
