JRC ECDIS User Manual

Section 17 Adjusting and Setting up Equipment (for Services) 17-24
17.3.8 Setting Route Sharing
In the "Route Sharing" dialog, change the route sharing method used for route sharing.

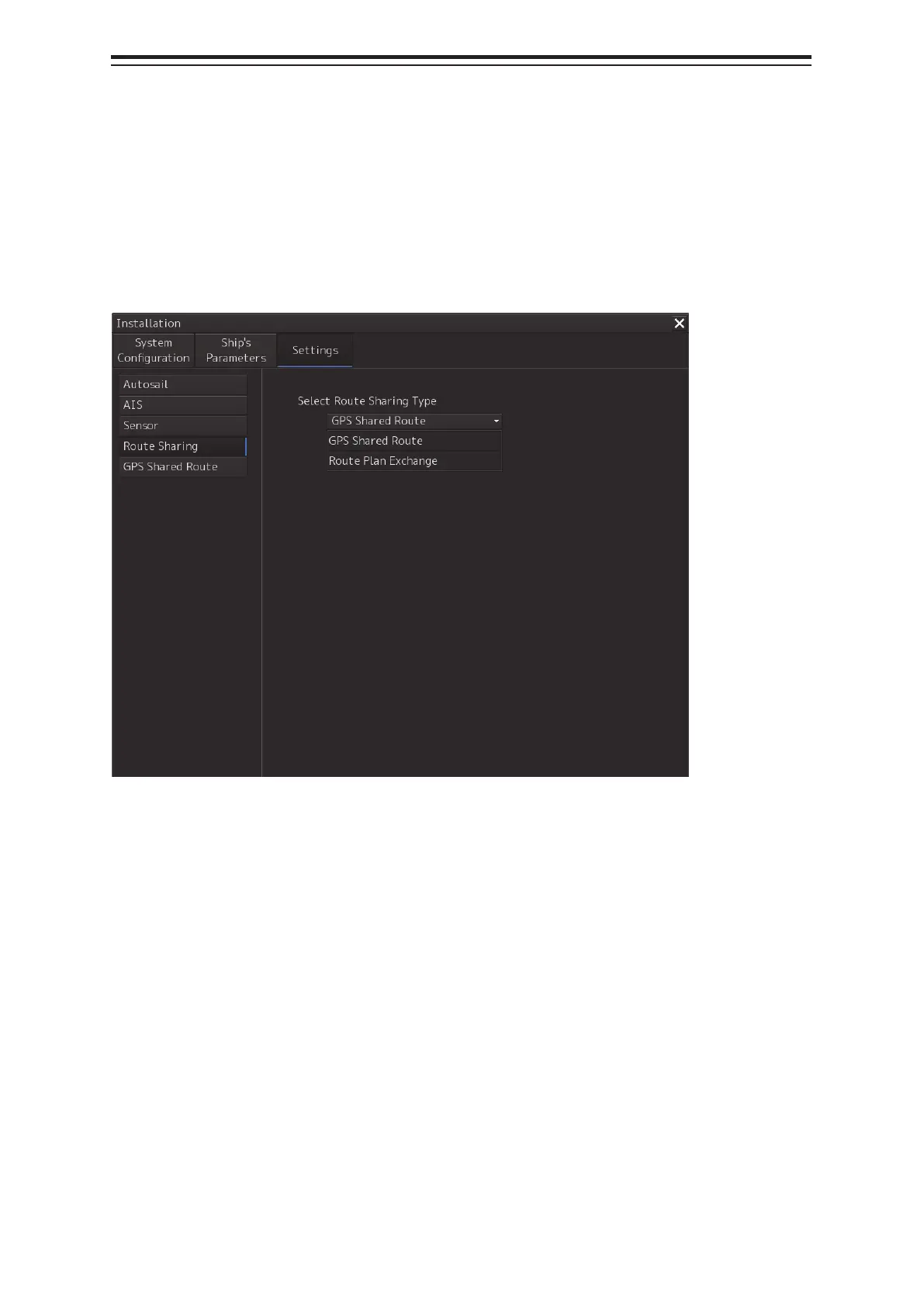

17.3.8.1 Displaying the [Route Sharing] dialog
When [Settings] is selected in the 1st classification pane and [Route Sharing] is selected in the 2nd
classification pane, the [Route Sharing] dialog is displayed in the edit/result pane.
17.3.8.2 Selecting a route sharing method
From the combo box, select the route sharing method to use.
GPS Shared Route
Route Plan Exchange
When selected, the selected item is added to the left pane

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
