JRC ECDIS User Manual

19-23 Section 19 Maintenance & Inspection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
21
23
24
24
26
27

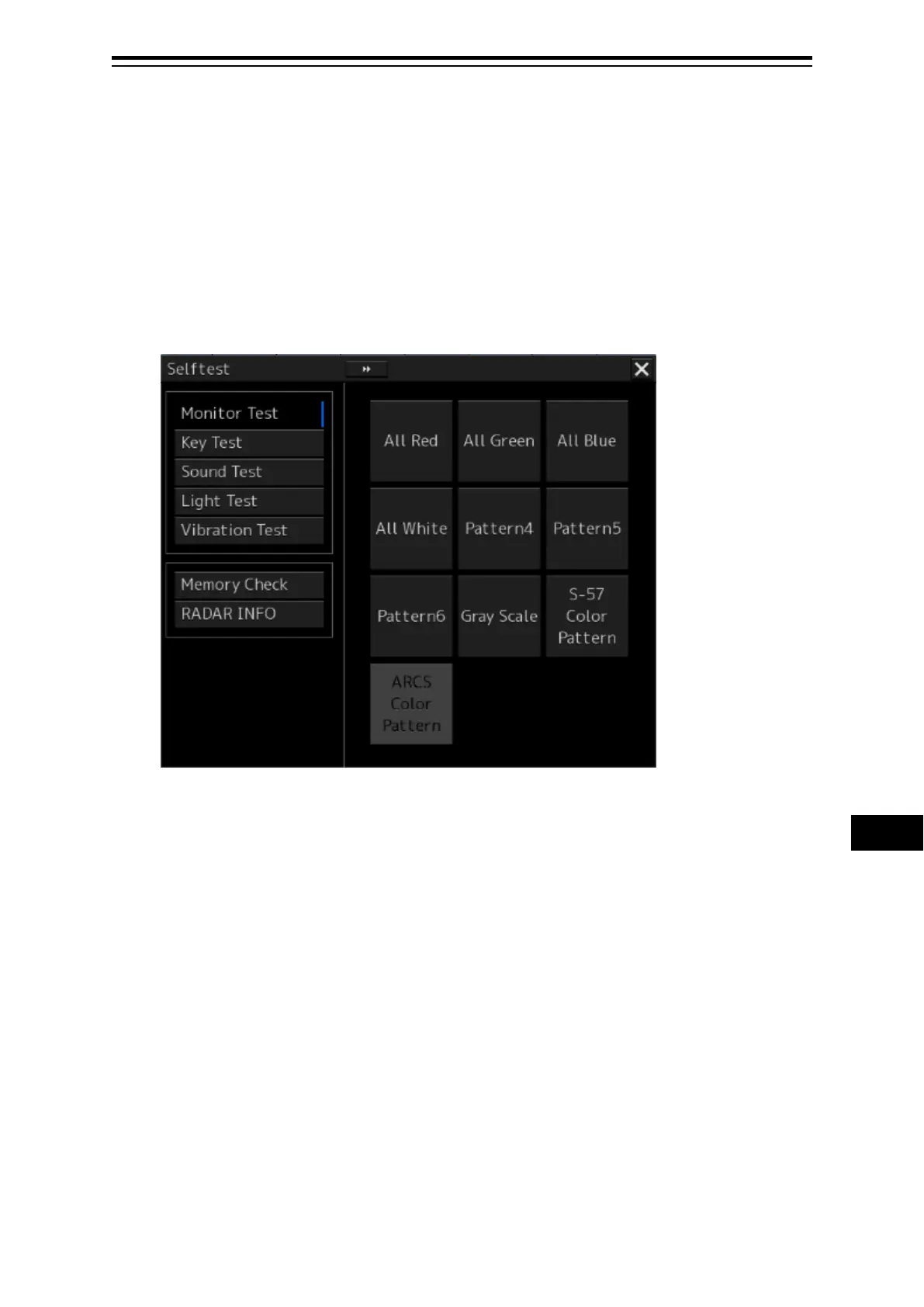

19.4.2 Confirming the screen status [Monitor Test]
Confirm the screen status.
1 Click on the [Menu] button on the left Tool Bar.
The menu is displayed.
2 Click on the [Maintenance] - [Selftest] - [Monitor Test] button on the menu.
When the color or pattern of the dialog is clicked on, the color or pattern is displayed on the
screen.
Check the screen status with the display status.
To reset the display, click the button again.

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
