Section 17 Adjusting and Setting up Equipment (for Services) 17-4
17.2.2 Performing basic adjustments on the radar
Perform basic adjustments on the radar by using the [Basic Adjustment] dialog.
17.2.2.1 Displaying the [Basic Adjustment] dialog

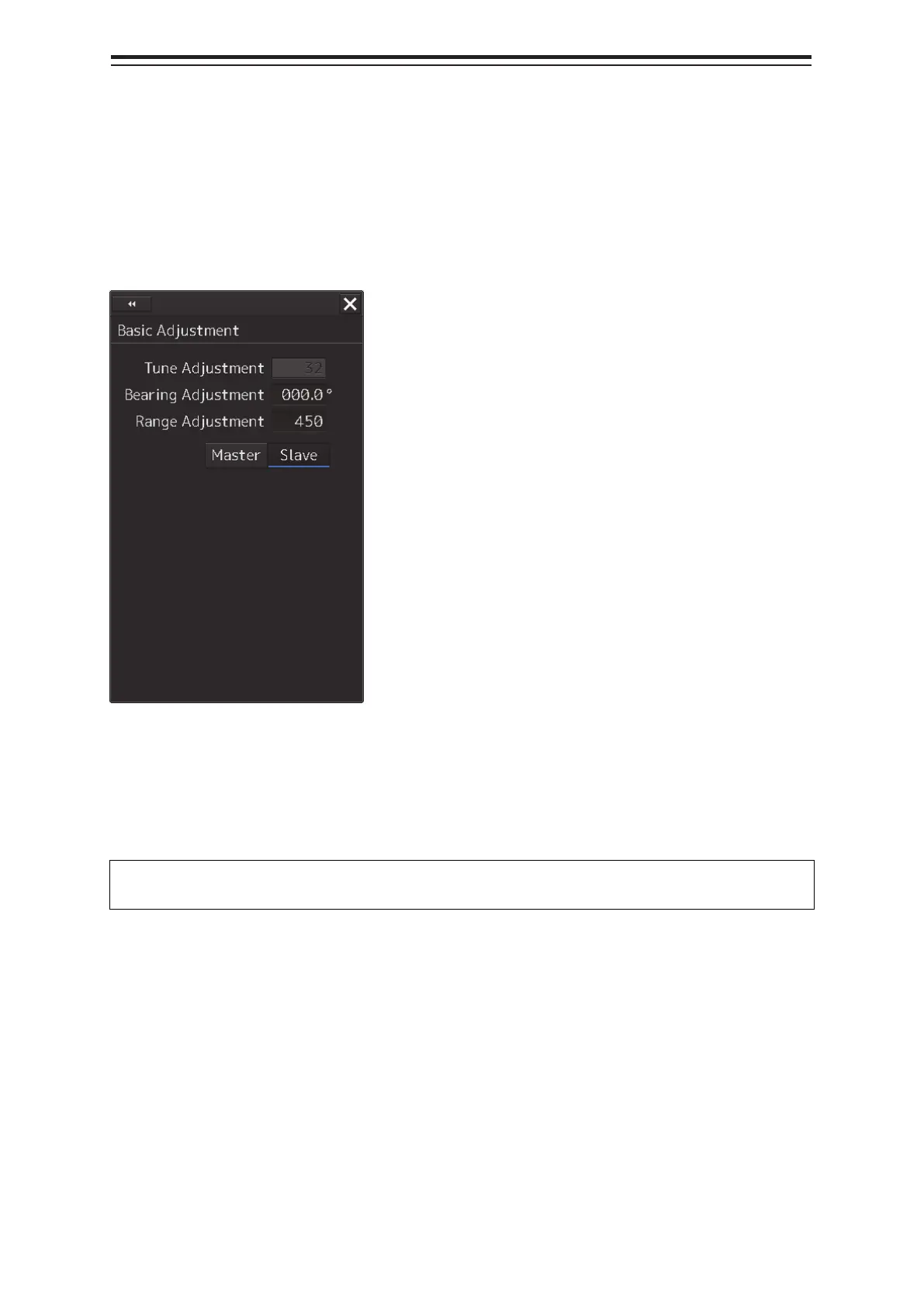

When you select [Basic Adjustment] in the classification pane, the [Basic Adjustment] dialog is
displayed in the edit pane.
17.2.2.2 Adjusting the bearing
Adjust the bearing so that the bearing of the target measured by the compass on the ship and the
bearing of the image that is displayed on the radar match.
Note
This function is disabled when the radar interswitch is set to the Slave mode.
1 Set the bearing mode to [H UP] and set the image processing mode to [Process Off].
For the bearing mode setting method, refer to "6.6.2 Setting Bearing mode (S-57/C-MAP only)".
2 Measure a bearing in the ship's heading direction of a suitable target (for instance,
halted ship, breakwater, and buoy) by using the compass on the ship.
3 Click on the [Bearing Adjustment] input box.
A numeric value input keyboard is displayed.
