19.1.6 Setting and confirming the Sensor Source
Set and confirm the sensor source.
1 Click on the [Menu] button on the left Tool Bar.
The menu is displayed.
2 Click on the [Maintenance] - [Sensor Selection/Status] button on the menu.

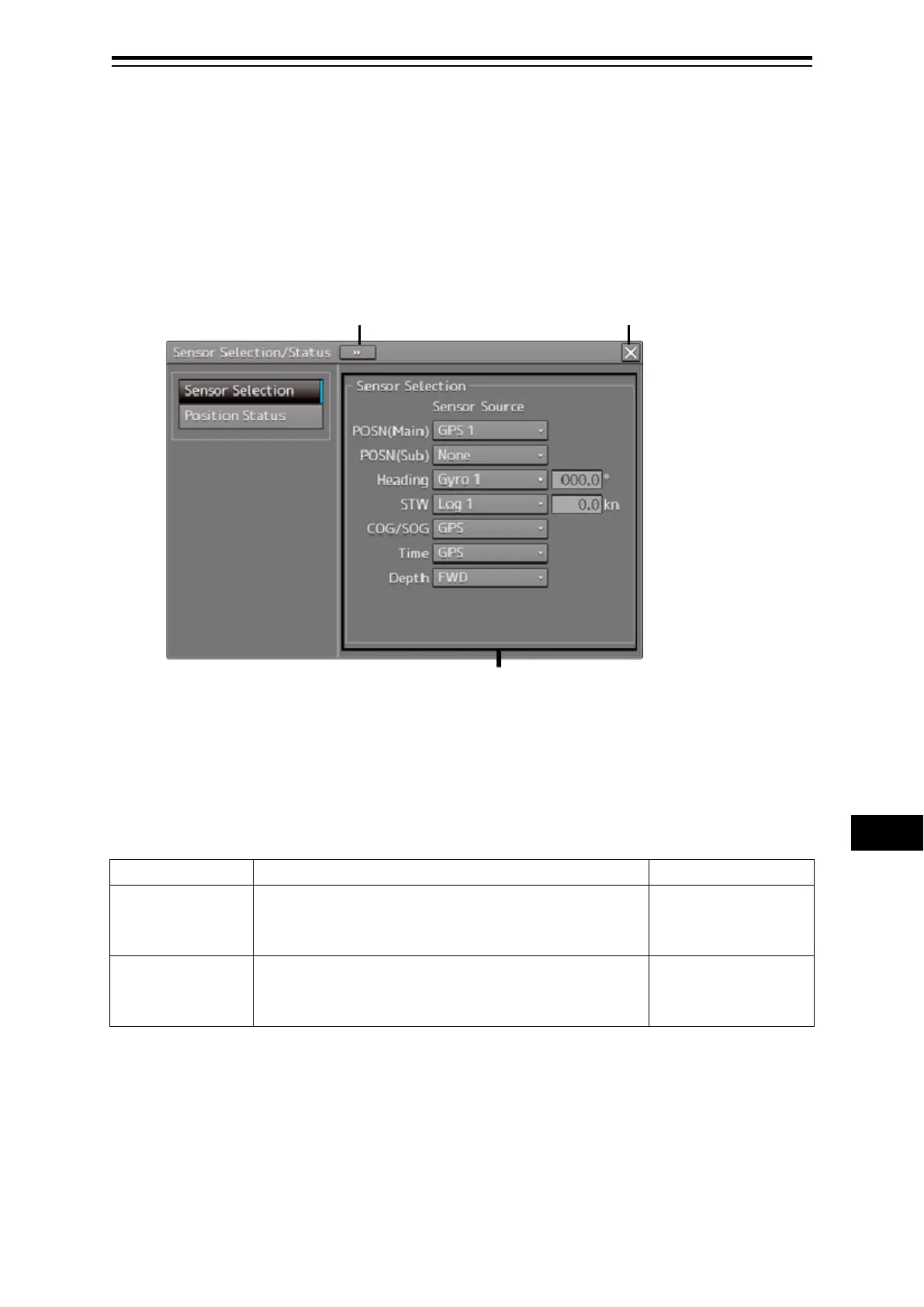

The [Sensor Selection/Status] dialog box appears.
[1] [X] button
Closes [Sensor Selection/Status] dialog box.
[2] [Sensor Selection]
Enables selection of a sensor source.
Setting item Setting contents Setting value
POSN(Main) Select a Primary Position sensor source from the
combo box.
GPS x
("x" indicates the unit
number)
POSN(Sub) Select a Secondary Position sensor source from the
combo box.
None, GPS x
("x" indicates the unit
number)
[1]
[2]
[3]
