4 Input an adjustment value in the input box so that the bearing of the target that was
measured in Step 2 indicates a correct bearing. (0 to 359.9)
For the method of using the numeric input keyboard, refer to "3.16.2 Name and function of each
section of the keyboard".
17.2.2.3 Adjusting a distance
Adjust the distance of the target on the screen so that the correct distance is displayed.
1 On the screen, specify a target whose distance is available in advance.
2 Click on the [Range Adjustment] input box.
A numeric value input keyboard is displayed.
3 Enter an adjustment value in the input box so that the distance of the target specified
in Step 1 indicates the correct distance. (128 to 1024)
For the method of using the numeric input keyboard, refer to "3.16.2 Name and function of each
section of the keyboard".
17.2.3 Adjusting Antenna Height
Adjust the antenna by using the [TXRX] dialog.

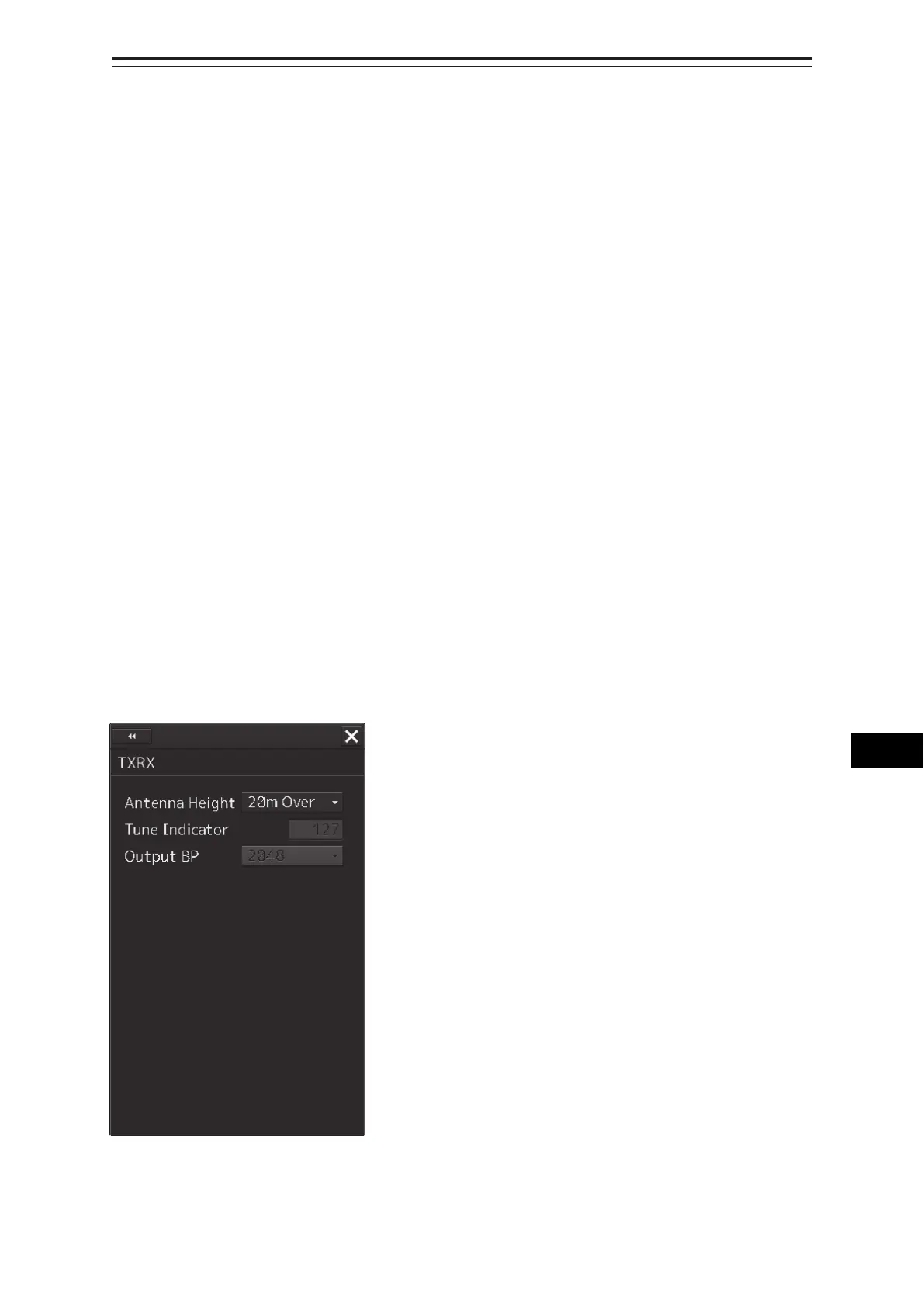

When you select [TXRX] in the classification pane, the [TXRX] dialog is displayed in the edit pane.
