JRC ECDIS User Manual

19-31 Section 19 Maintenance & Inspection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
21
23
24
24
26
27
19.4.7 Cleaning the lens of the DVD drive
1 Insert the supplied lens cleaner CD into the DVD drive.
2 Click on the [Menu] button on the left Tool Bar.
The menu is displayed.
3 Click [Maintenance] - [Selftest] - [DVD Cleaning] from the menu.
Cleaning automatically starts.

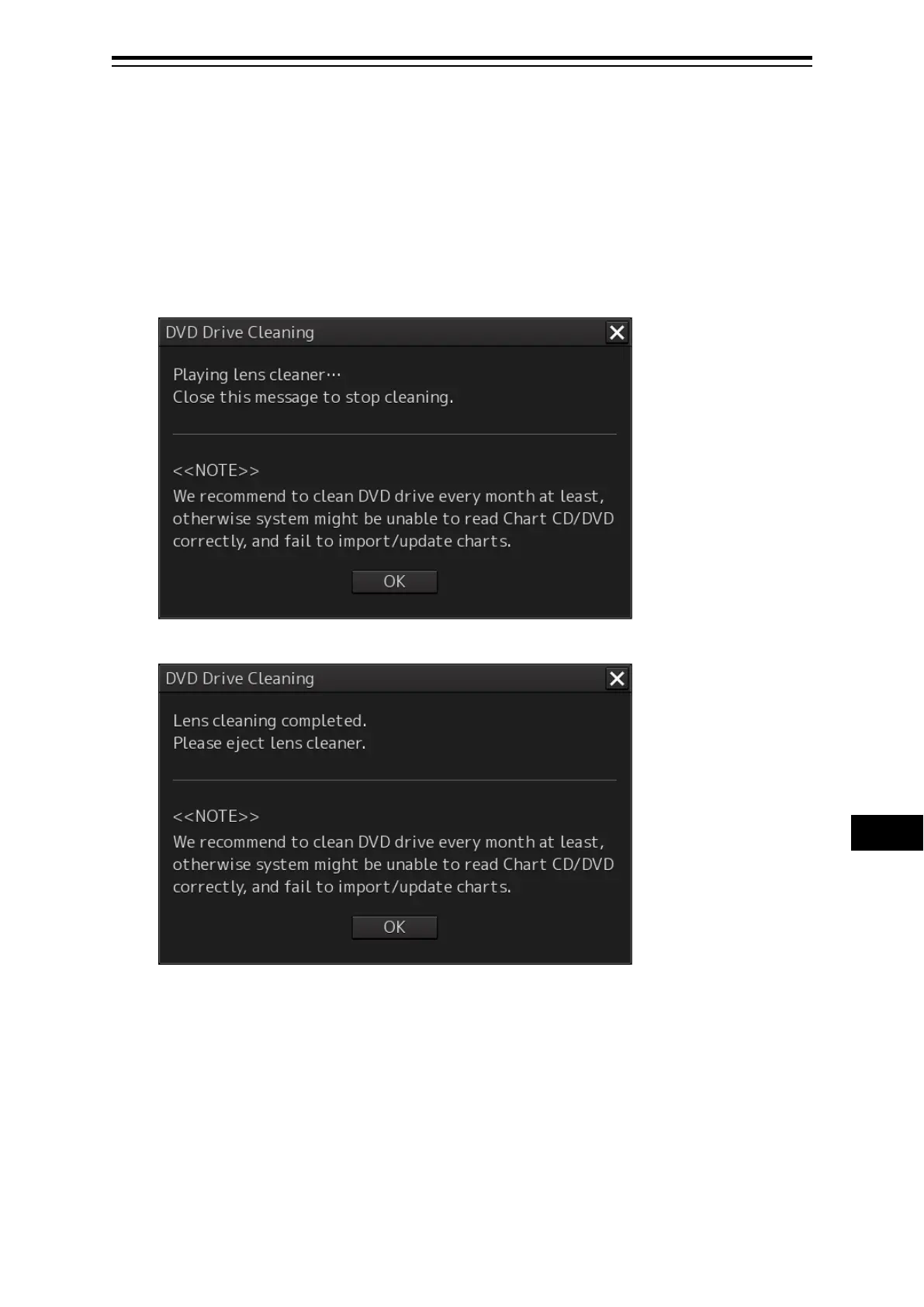

The following dialog box appears during cleaning:
4 When the cleaning completion dialog box appears, click on the [OK] button.
Remove the supplied lens cleaner CD.

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
