19-55 Section 19 Maintenance & Inspection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
21
23
24
24
26
27

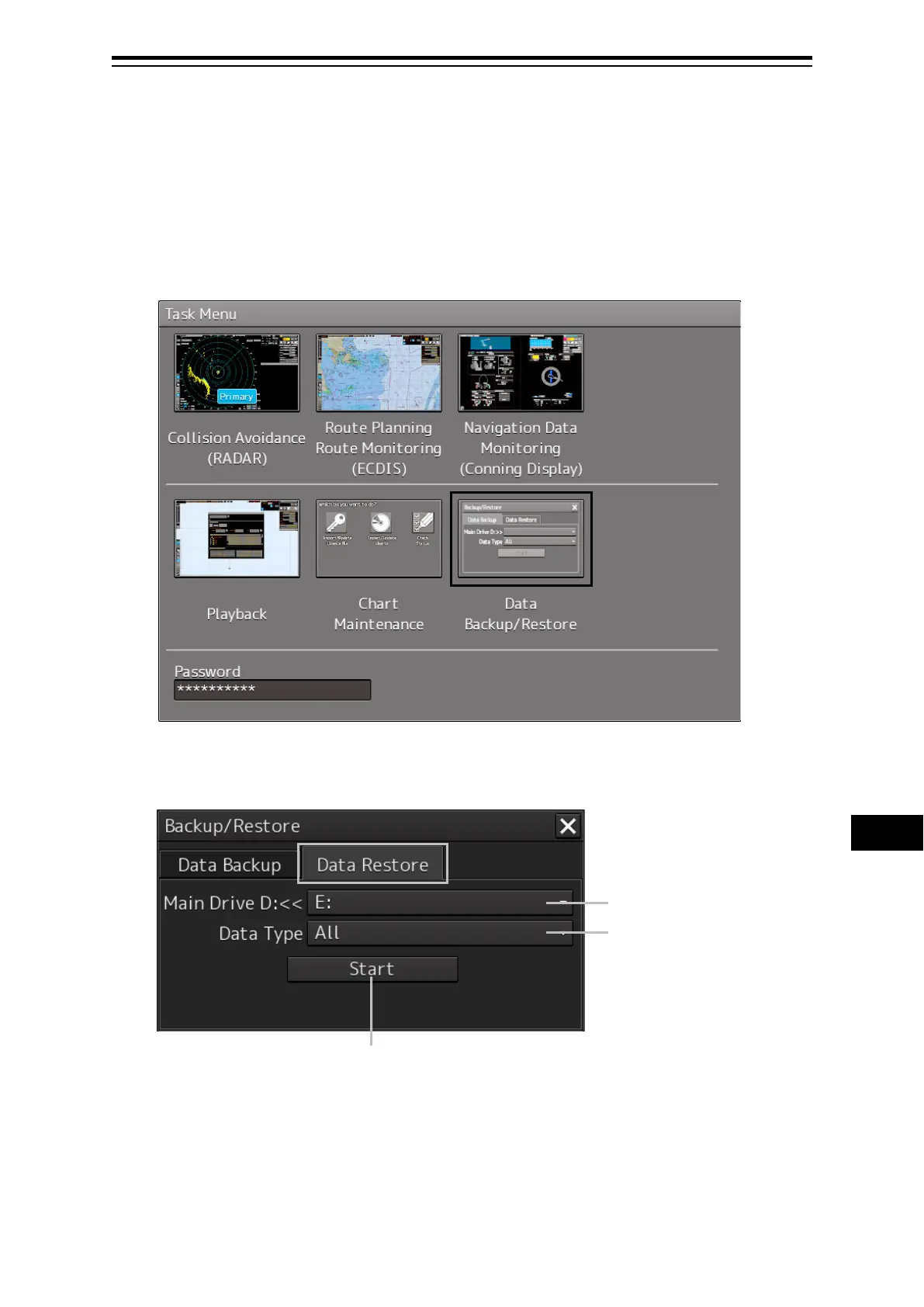

19.10.2 Restoring backed up data
Use the following procedure to restore backed up data into this equipment.
Connect the external medium (USB memory, etc.) in which backup data has been saved.
1 Press the power supply button of the operation unit.
The power supply button is lit. Then the task menu is displayed.
2 Click on the [Data Backup/Restore] button in the task menu.
The [Backup/Restore] dialog is displayed.
3 Click on the [Data Restore] tab.
4 Select the drive in which backup data has been saved from the drive selection combo
box.
5 Select the type of the data to be restored in the [Data Type] combo box.
All: The entire user data is restored.
Except Charts: The user data excluding chart data is restored.
Drive selection combo box
[Data Type] combo box
[Start] button
To Next Page
