17.2 Radar Adjustment
Use the [Adjustment] dialog box to adjust the radar of this equipment.
17.2.1 Displaying the [Adjustment] dialog box
Clicking the [Adjustment] button in the submenu displays the [Adjustment] dialog box.
The [Adjustment] dialog box consists of the classification pane and the edit pane.
By clicking the Disclosure button (>>), you can hide the edit pane. To show the edit pane again, click
the Disclosure button (<<).
1 Click the item you want to set up in the classification pane.
The setup dialog of the item you selected appears in the edit pane.
2 Set up in the edit pane.
Disclosure button
Classification pane Edit pane

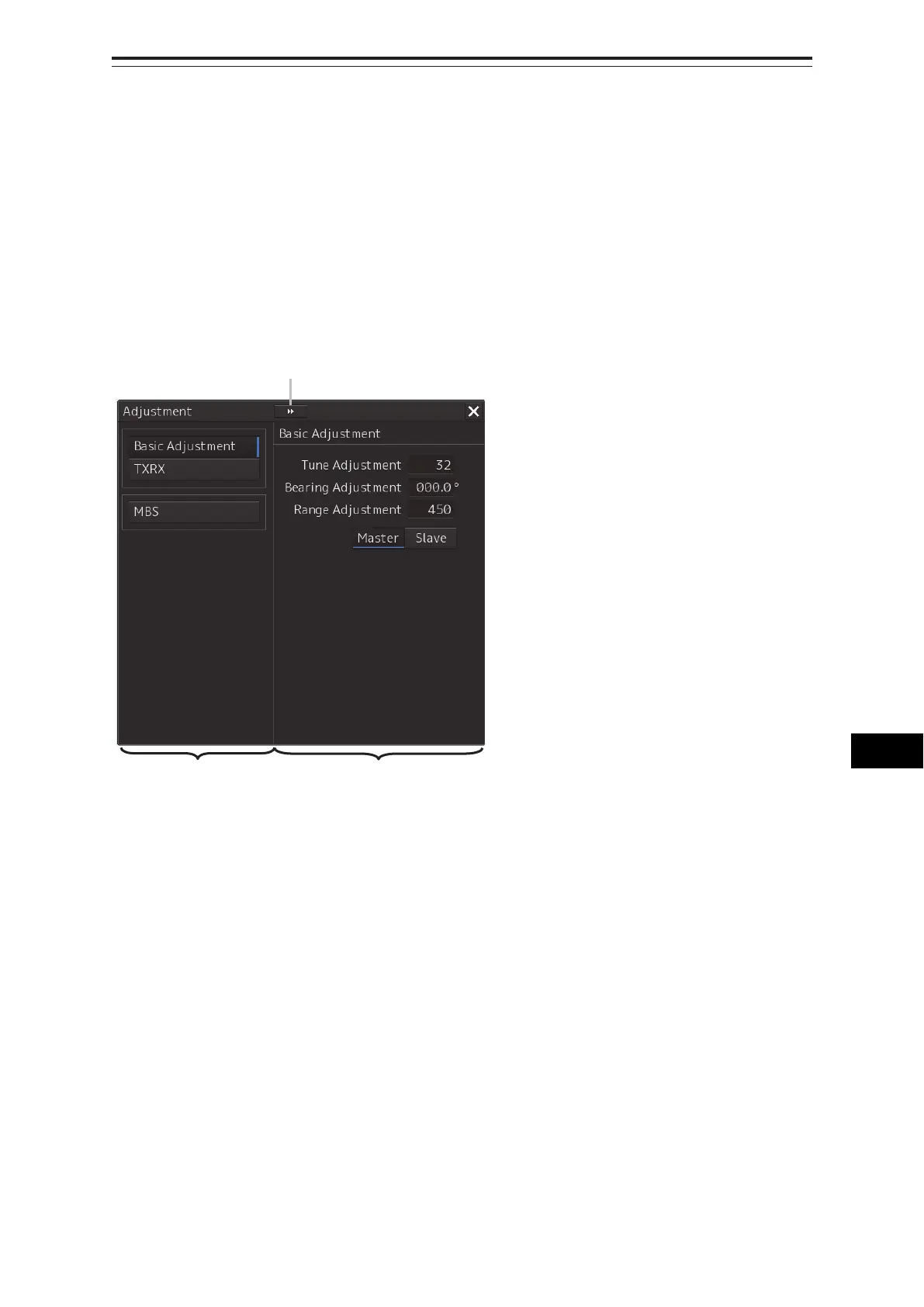

[Adjustment] dialog box

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
