JRC ECDIS User Manual

20-19 Section 20 Failures and After-Sale Services
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27

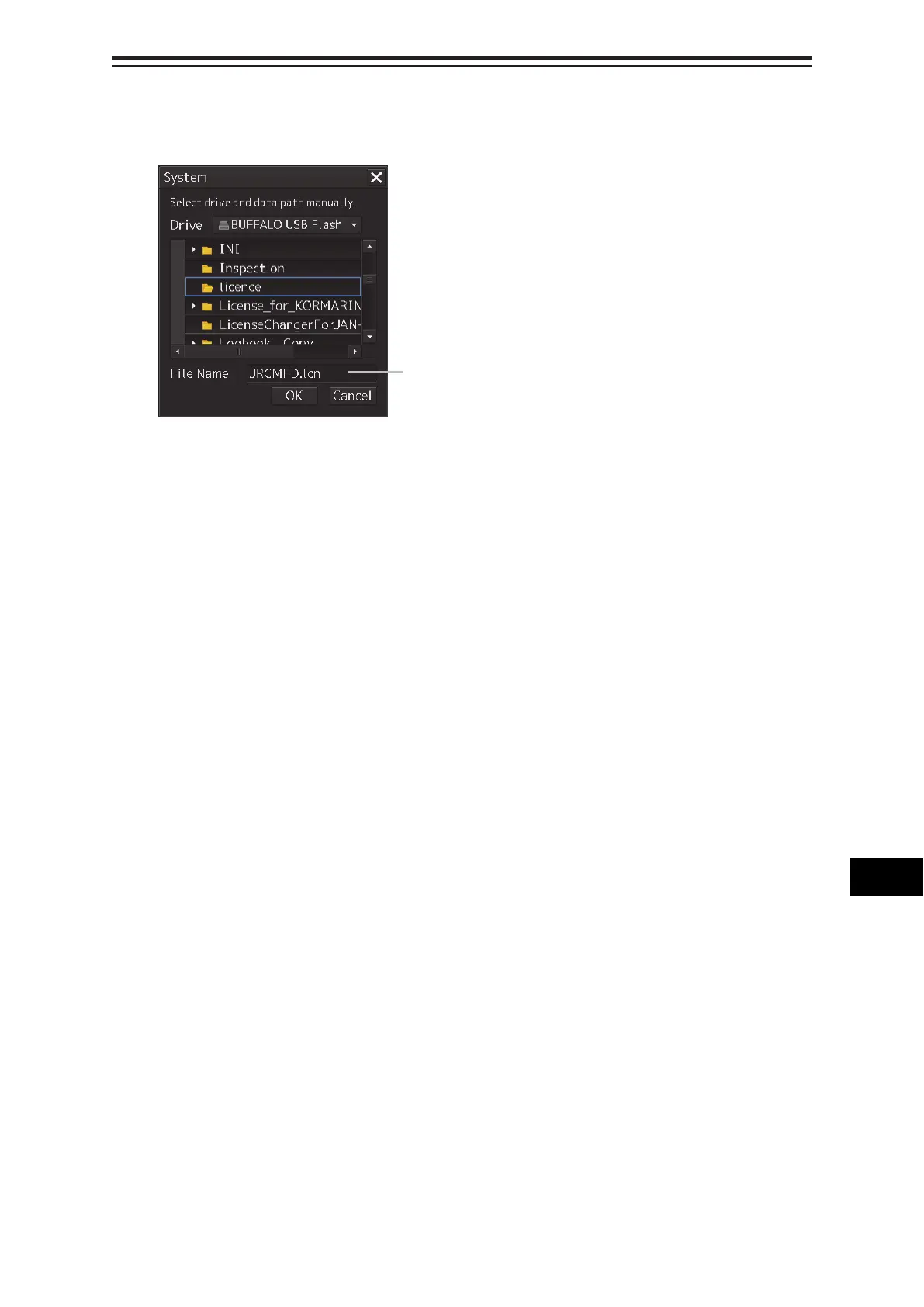

4 Click on the [Browse] button.
The [System] dialog is displayed.
5 Select the name of the license file (example: JRCMFD.lcn) that is stored in the USB
flash memory from the [File Name] combo box and click on the [OK] button.
The [System] dialog is closed.
6 Click on the [Import] button.
When import is completed, a confirmation dialog box appears.
Close the dialog box by clicking on the [OK] button.
7 Close the [Import License] dialog box by clicking on [x] button and return to the task
menu.
In this case, a new license is adopted.
[File Name] combo box

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
