JRC ECDIS User Manual

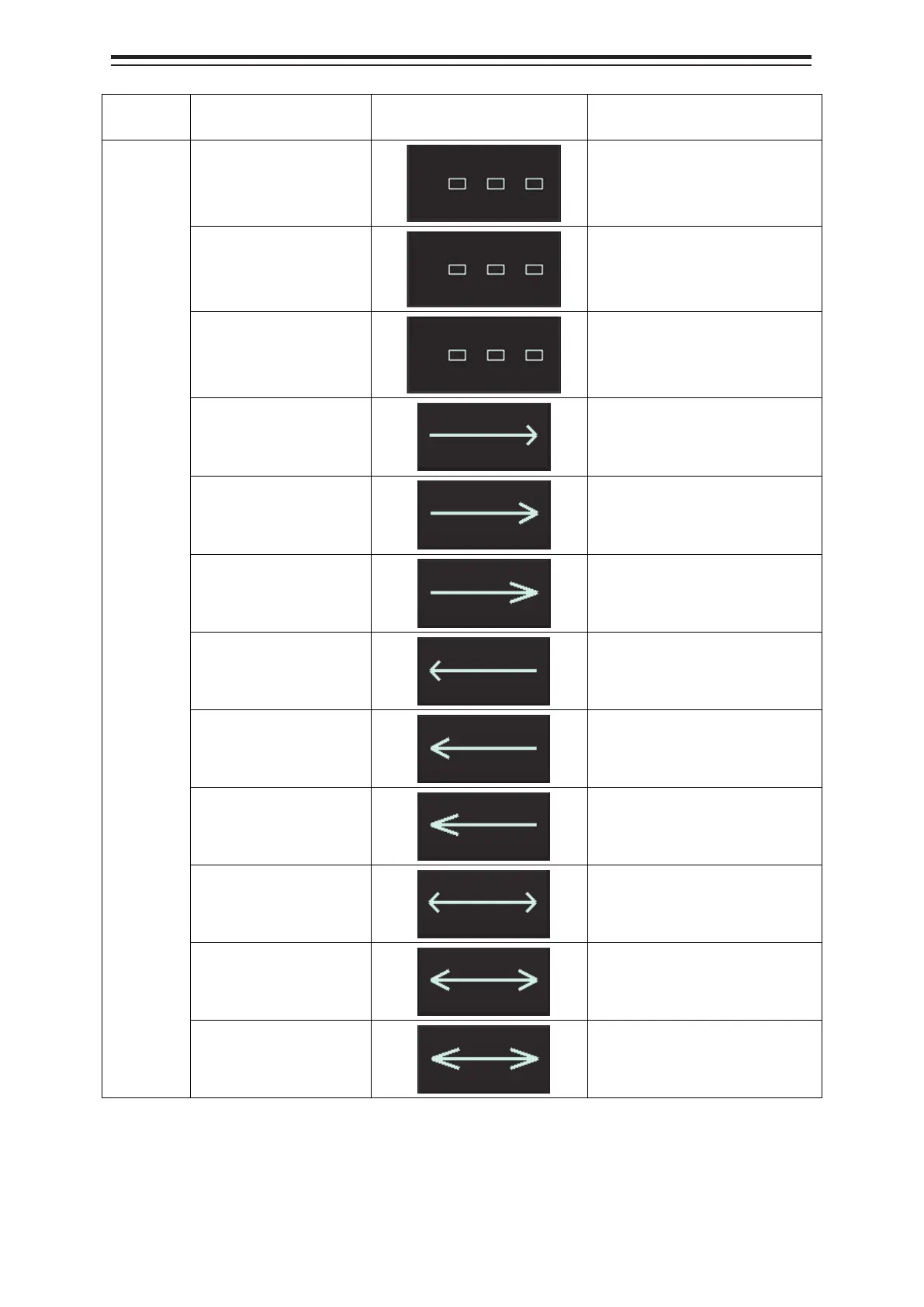

Appendix B Menu List and Materials B-72
Button
name
Icon name Icon display example
Alert generated when the own
ship approaches the object
[Line]
button
Caution line
Crossing a User defined
Caution Object
Warning line
Crossing a User defined
Warning Object
Alert line
Crossing a User defined Alert
Object
Arrow(Start To
End/Small)
No alert
Arrow(Start To
End/Medium)
No alert
Arrow(Start To
End/Large)
No alert
Arrow(End To
Start/Small)
No alert
Arrow(End To
Start/Medium)
No alert
Arrow(End To
Start/Large)
No alert
Arrow(Both
Direct/Small)
No alert
Arrow(Both
Direct/Medium)
No alert
Arrow(Both
Direct/Large)
No alert

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
