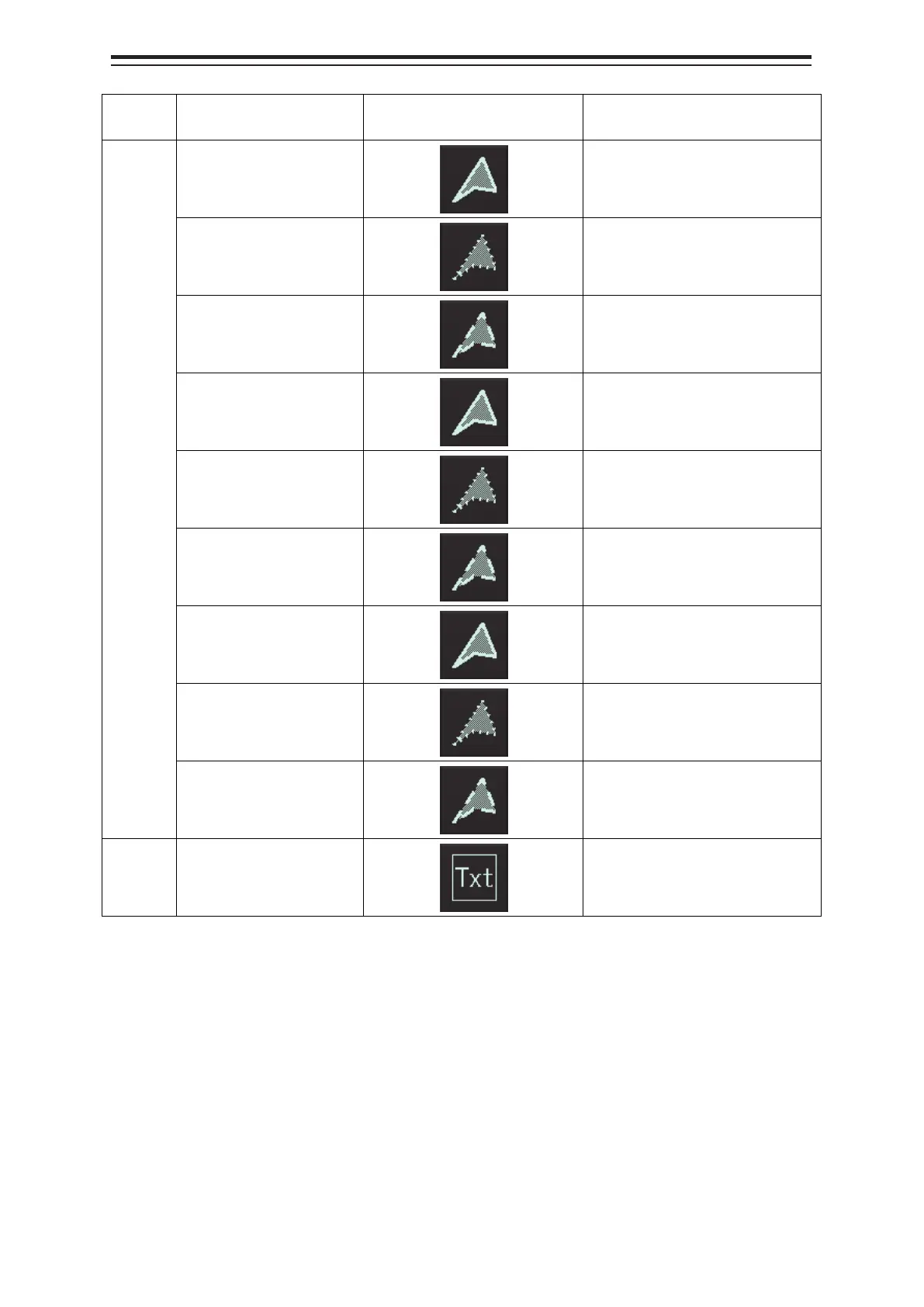

JRC ECDIS User Manual

Appendix B Menu List and Materials B-74
Button
name
Icon name
Icon display example
Alert generated when the own
ship approaches the object
[Area]
button
Caution Detection(solid
line)
Crossing a User defined Caution
Object
Caution Detection(dotted
line)
Crossing a User defined Caution
Object
Caution
Detection(dashed line)
Crossing a User defined Caution
Object
Warning Detection(solid
line)
Crossing a User defined
Warning Object
Warning
Detection(dotted line)
Crossing a User defined
Warning Object
Warning
Detection(dashed line)
Crossing a User defined
Warning Object
Alarm Detection(solid
line)
Crossing a User defined Alarm
Object
Alarm Detection(dotted
line)
Crossing a User defined Alarm
Object
Alarm Detection(dashed
line)
Crossing a User defined Alarm
Object
[Text]
button
Text
No alert

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
