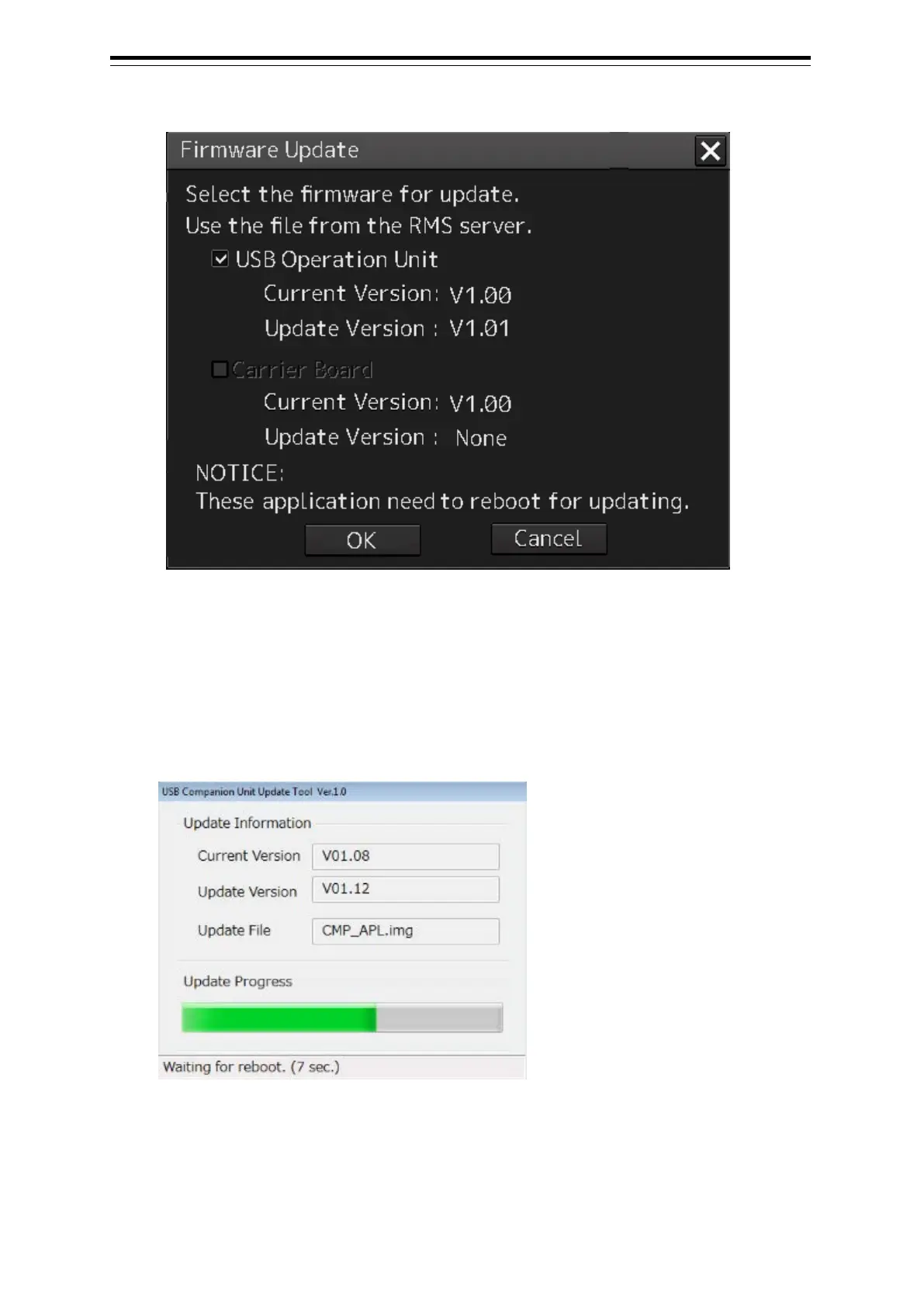

Section 19 Maintenance & Inspection 19-42
A file selection dialog box appears.
USB Operation Unit
Select this when updating the firmware of the USB operation unit.
Carrier Board
Select this when updating the companion's firmware.
4 Click the [OK] button.
Firmware update is started and a popup is displayed.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JRC ECDIS and is the answer not in the manual?

JRC ECDIS Specifications

General IconGeneral
Display TypeLCD
Radar OverlayYes
AIS IntegrationYes
Operating Temperature-15°C to +55°C
Chart FormatS-57, S-63
Power Supply24V DC
InterfacesEthernet, USB
ComplianceIMO
