JRC JMR-5400 Series User Manual

Appendix B Menu List and Materials B-60

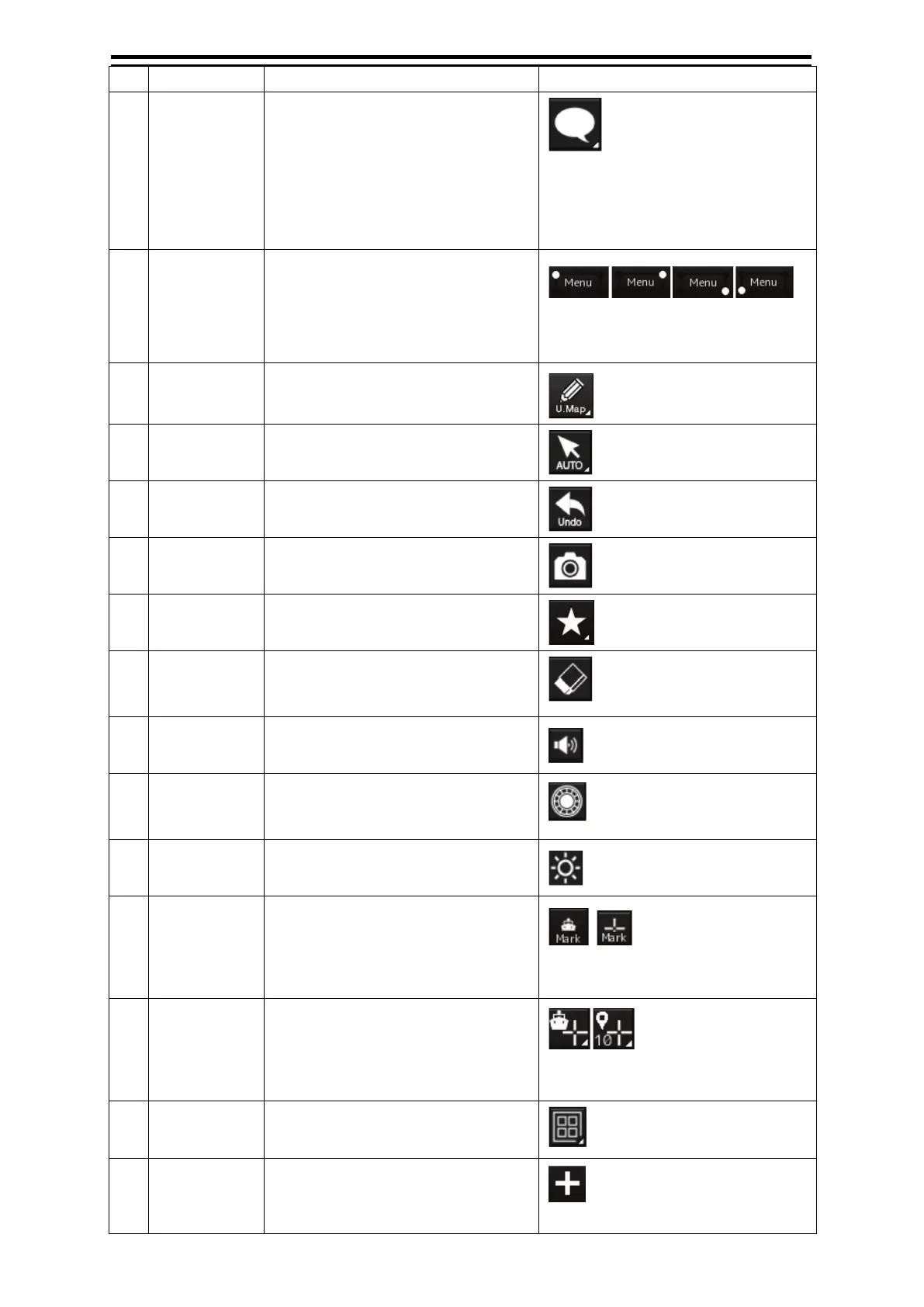

No.
Name
Functional outline
Displayed image
15
Message
notification
When there is a message from
outside (AIS safety related
messages, etc.), the number of
messages is displayed in a badge
over the icon.
The message window is displayed
when the icon is clicked.
16
Menu "Menu" button with freeze indicator
function.
Displays the menu.
Indicates using animation that the
system is operating.
17
Writing tool
Writes in the User map creation
mode.
18
Cursor mode
selection
Changes the cursor mode to AUTO
mode.
19
Undo Executes an undo operation.
20
Screen
capture
Creates the capture image at the time
this is pressed.
21 Favourite The favourite list is displayed.
22
Eraser tool Changes to the user map deleting
mode, and user maps can be deleted
successively.
23
Silencing Silences the alert sound.
24
Multiple knob
(small knob)
Displays the functions assigned to the
multiple knob. Displayed as an icon
with the function name at left.
25
Brightness Sets the brightness of the screen.
26 Reversal key Switches the marking position at mark
input, whitch includes position of own
ship [a)], position of cursor [b)]. Icon
changes according to settings.
a) b)
27 Reference
mark
Set a reference point, whitch includes
from own ship [a)], from ref. mark 1 to
20 [b)]. Icon changes according to
settings.
a) b)
28
Page
selection
The [Page Selection] dialogue box is
displayed.
29 Add Page (Only in the case of Plotter)
Displays the [Page Selection]
dialogue box.
