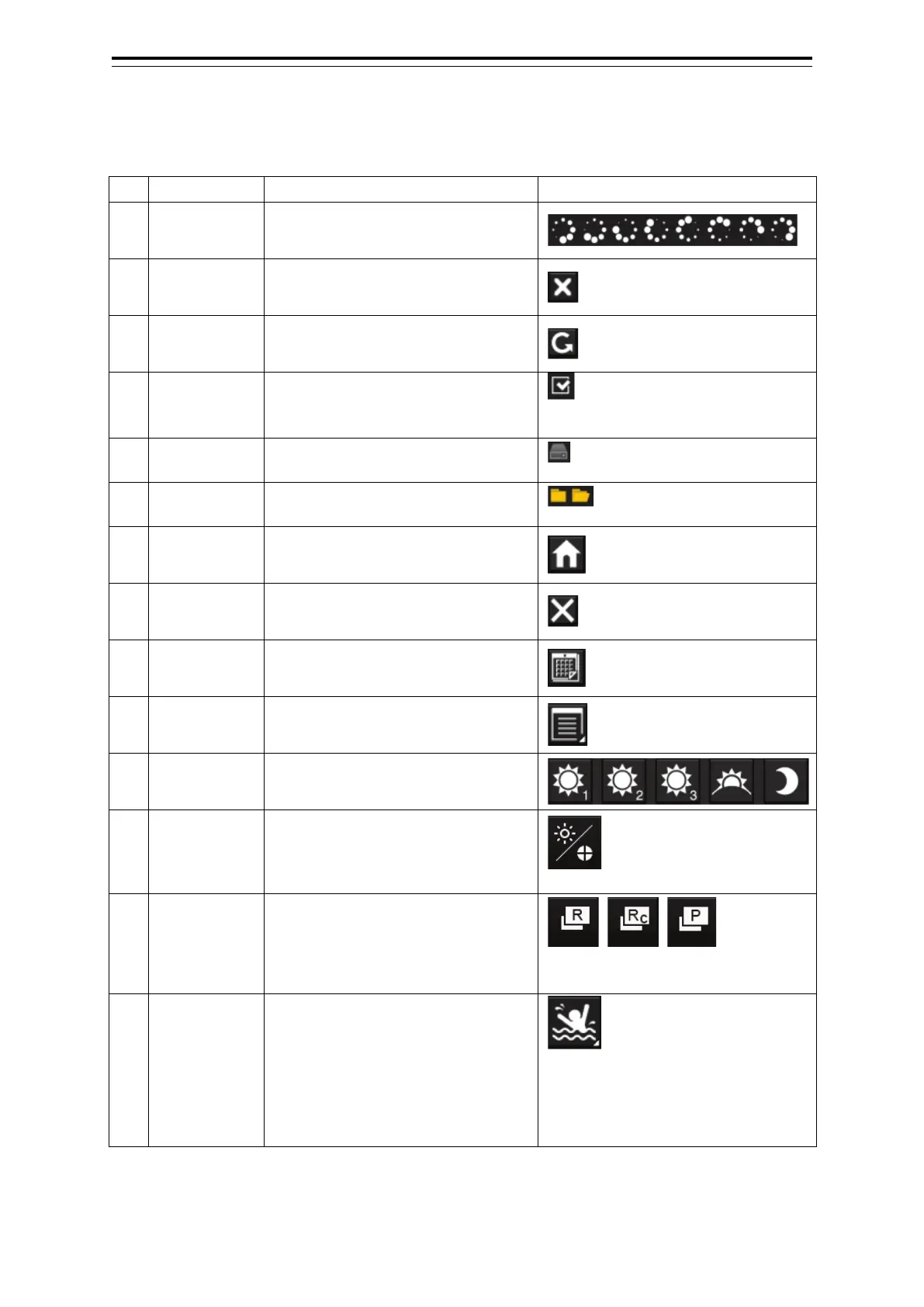

B.5 List of Icons/Icon Buttons
The icons/icon buttons displayed in this equipment are listed below.
No.
Name
Functional outline
Displayed image
1 Active
indicator
Indicates that the computer is
processing by an animation.
2 Delete Delete the item.
3
Check again Checks the contents being displayed
again.
4
Setting mark Displayed when the operation is valid.
(E.g., Latitude and longitude offset of
chart)
5
Drive Displayed at the left of the name
when a drive is selected.
6
Folder Displayed at the left of the name
when a folder is selected.
7
Home Changes from the currently displayed
screen to the home screen.
8
Close Closes the dialogue box.
9
Date selection Displays the calendar picker.
10
Dialogue box
display
Opens another dialogue box. (E.g.,
[File Operation] dialogue)
11
Day/Night Displays the state of the current
Day/Night setting by an icon.
12 Screen and
panel
brightness
Enables adjustment of the screen and
panel brightness.
13 Mode
switching
Changes to the mode, whitch
includes radar mode [a)], synthesis
mode [b)], and plotter mode [c)].
Icon changes according to mode.
a) b) c)
14
MOB Starts the MOB (Man Over Board)
mode.
In the MOB mode, a symbol display
of the position of the sailor falling over
board and a dotted like connecting it
to the own ship are displayed
graphically.
