2-11 Section 2 Basic Operations and Mode Screen
2
2.2.7 Chart information area
The chart information area consists of the following information display sections, buttons and tools.
2.2.7.1 Scale/range combo box
The current scale or range is displayed.
.
Scale Range
Select a scale or range from this combo box.

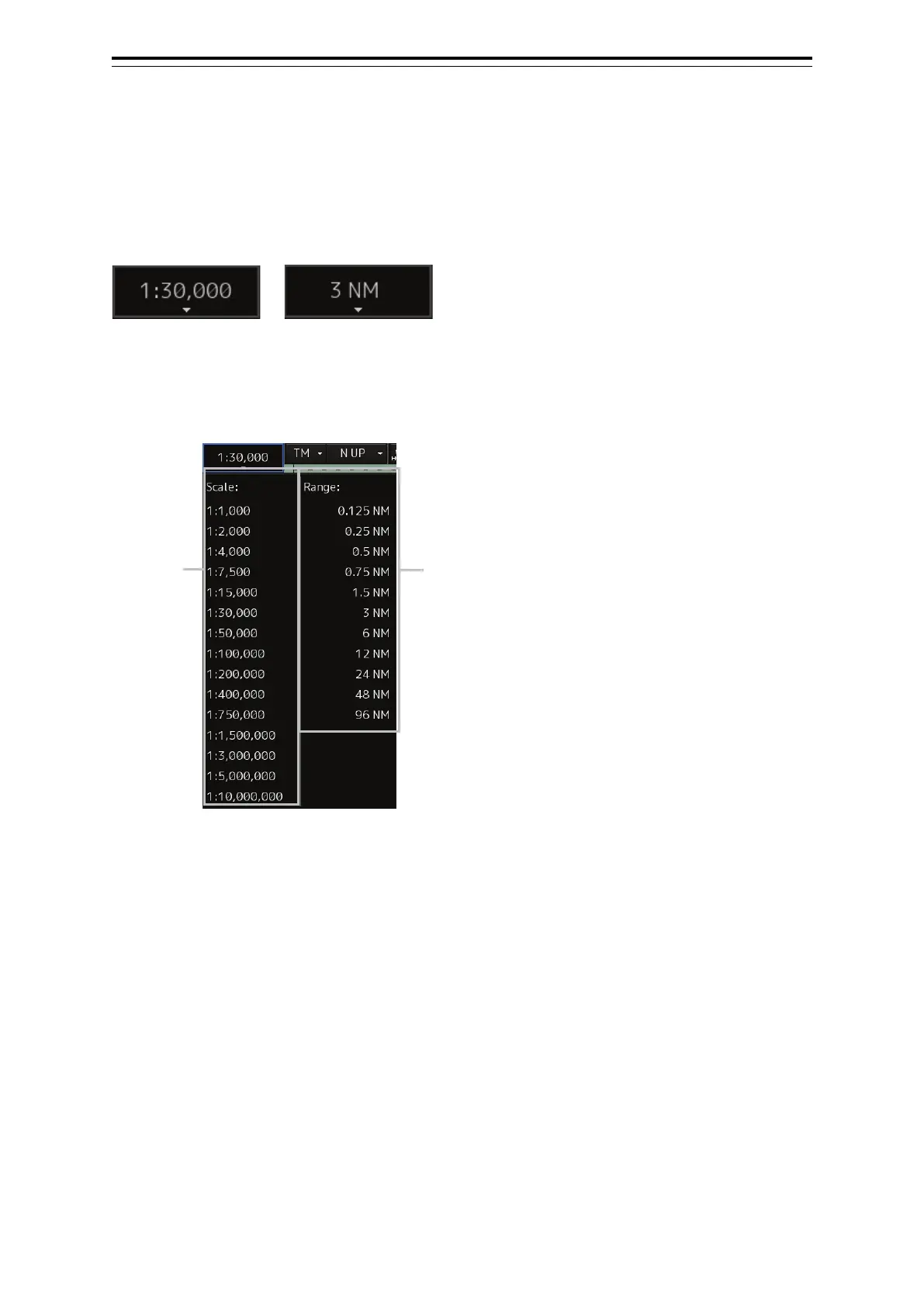

Click on the scale/range combo box to display the scale/range selection list.
Select a scale or range value from the list to display the chart with the selected scale or range.
Scale value
Range value
