2.2.3 Printer (NKG-800)
The printer (NKG-800) is connected Internally Mounted Equipment (IME) to take a hard copy of
transmitted, received and edited messages.
NOTE
• Keep [ON LINE] status at all time. Received message is not printed out in [OFF Line] status.
• When status is off line: received message is not printed.
• Use a roll-paper (JRC code :5ZPAL00002 for one-sheet copy and 5ZPCK00001for two-sheet copy)
and ink ribbon (5ZZCM00003)
Do not use except above mentioned products, for keep normal operation.

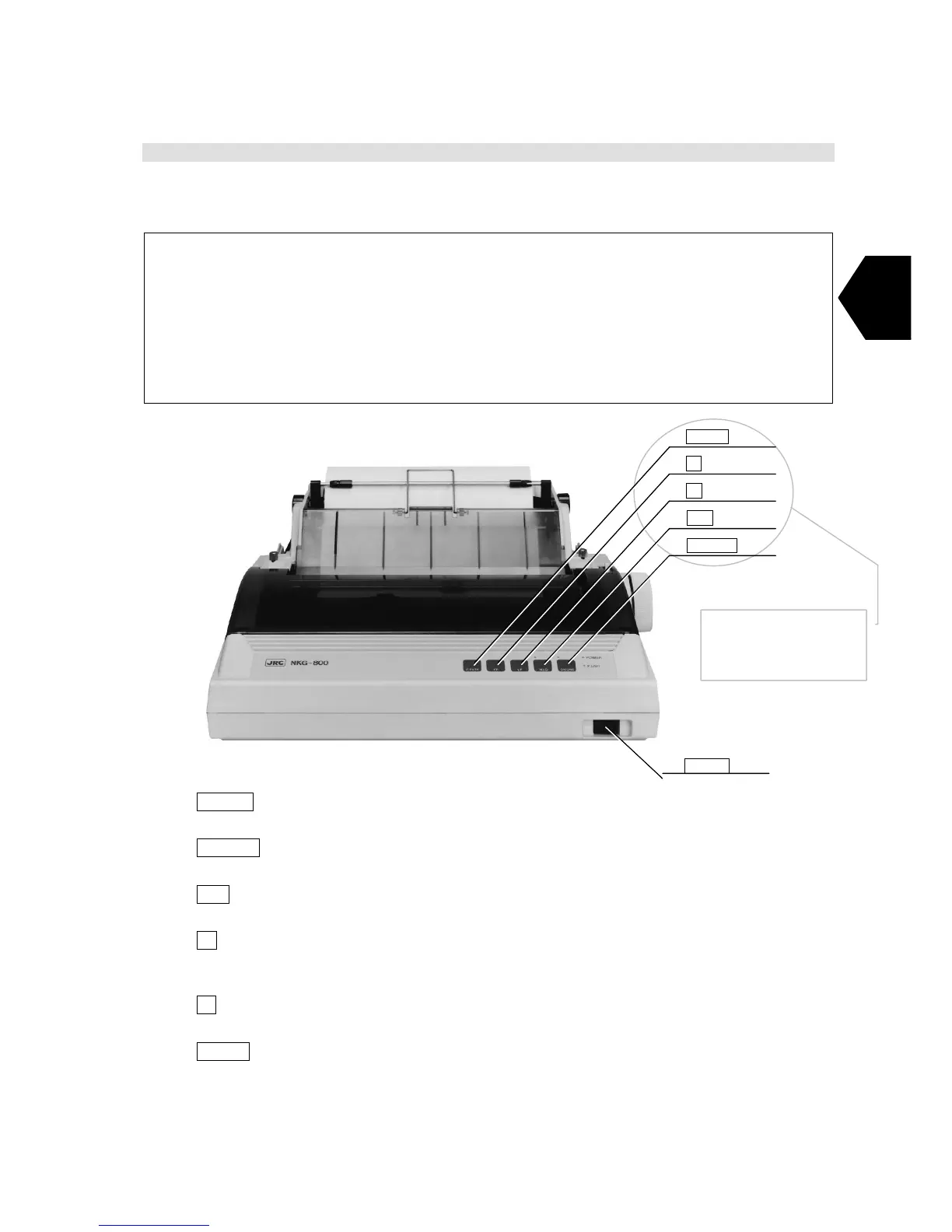

Fig.2.2.4 Printer
(1)
POWER switch
Used to turn on/off line voltage to ROP.
(2)
ON LINE switch
Used to alternate ROP status on line and off line.
(3)
NLQ switch
Used to alternate the character mode normal quality and high quality.
(4)
LF switch (Line feeder)
Used to do a linefeed. If a button is pushed once, width of linefeed is 1/6 inches. When keep
pressing, linefeed is repeated continuously.
(5)
FF switch
Used to do a page feed.
(6)
P.PARK switch
Used to eject roll paper or cut sheet.
These switches are
effective only on
off-line status.
(1)POWER switch
(2)ON LINE switch
(3)NLQ switch
(4)LF switch
(5)FF switch
(6)P. PA RK swi tch
