2-22
2.4.5 EXT PSU (NBD-904)
Refer to Table5.1.5 Principal Specification of EXT PSU for detailed specifications.

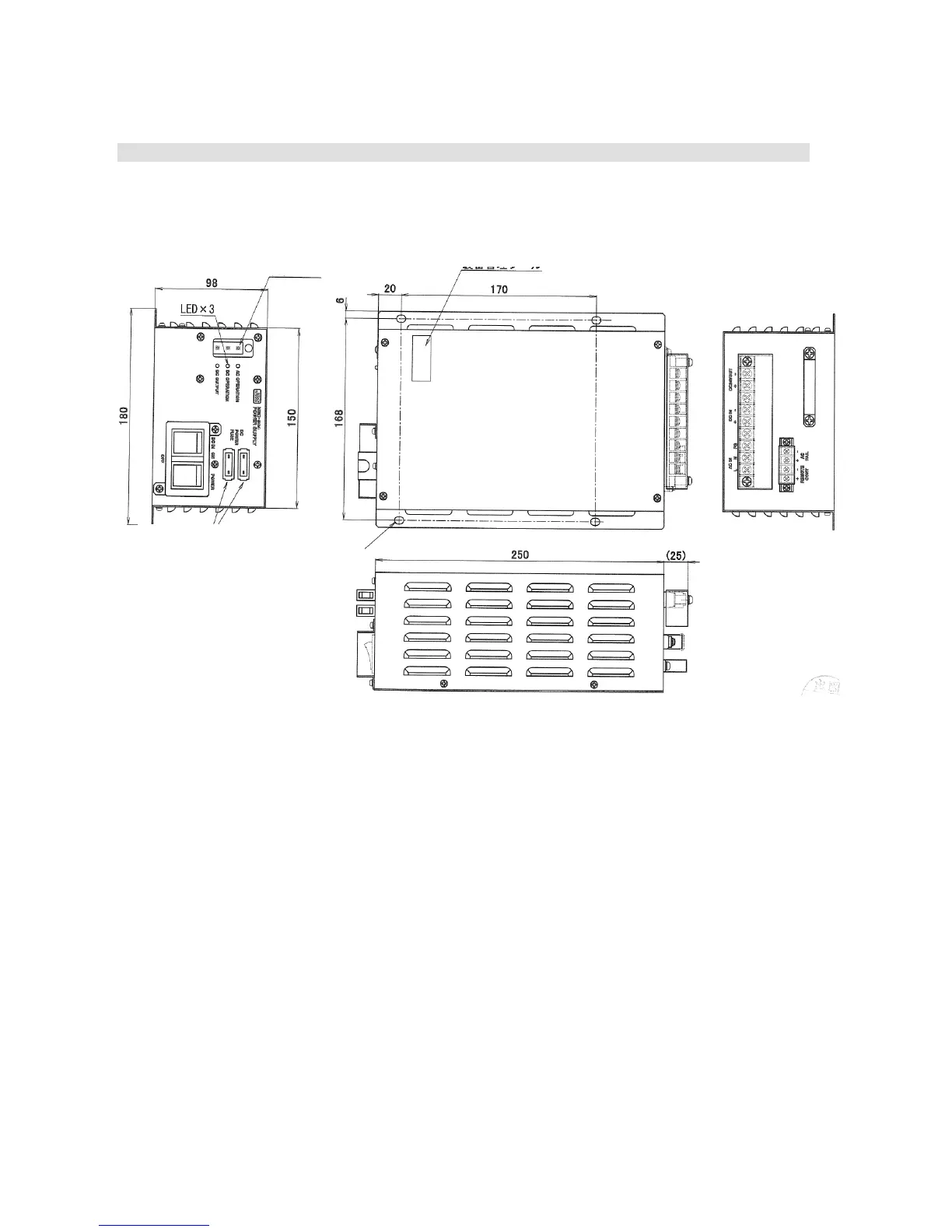

Fig.2.4.5 EXT PSU
Unit: mm
Mass: 2.6kg
Serial Number Seal
DimmerVolume x 3
Fuse x 2
Mount Hole
4-φ6x8
