2.3.3 DTE (Data Terminal Equipment: Display NDZ-227 and Keyboard NDF-369)
DTE is composed of display and keyboard, and is connected to IME. DTE can be connected to USB
drive.
CAUTION
Do not use the DTE to other purpose.
It may cause a problem that unable to be transmitted in the emergency.
NOTE
• Do not use except the NDZ-227 DTE: otherwise DTE is not operated normally.
• Do not use except specified DTE-IME cable: otherwise the IME is damaged.
• In case of no key-instruction for a given length of time(depends on the setting) under DTE operating
mode except any communication, any display is disappeared automatically.

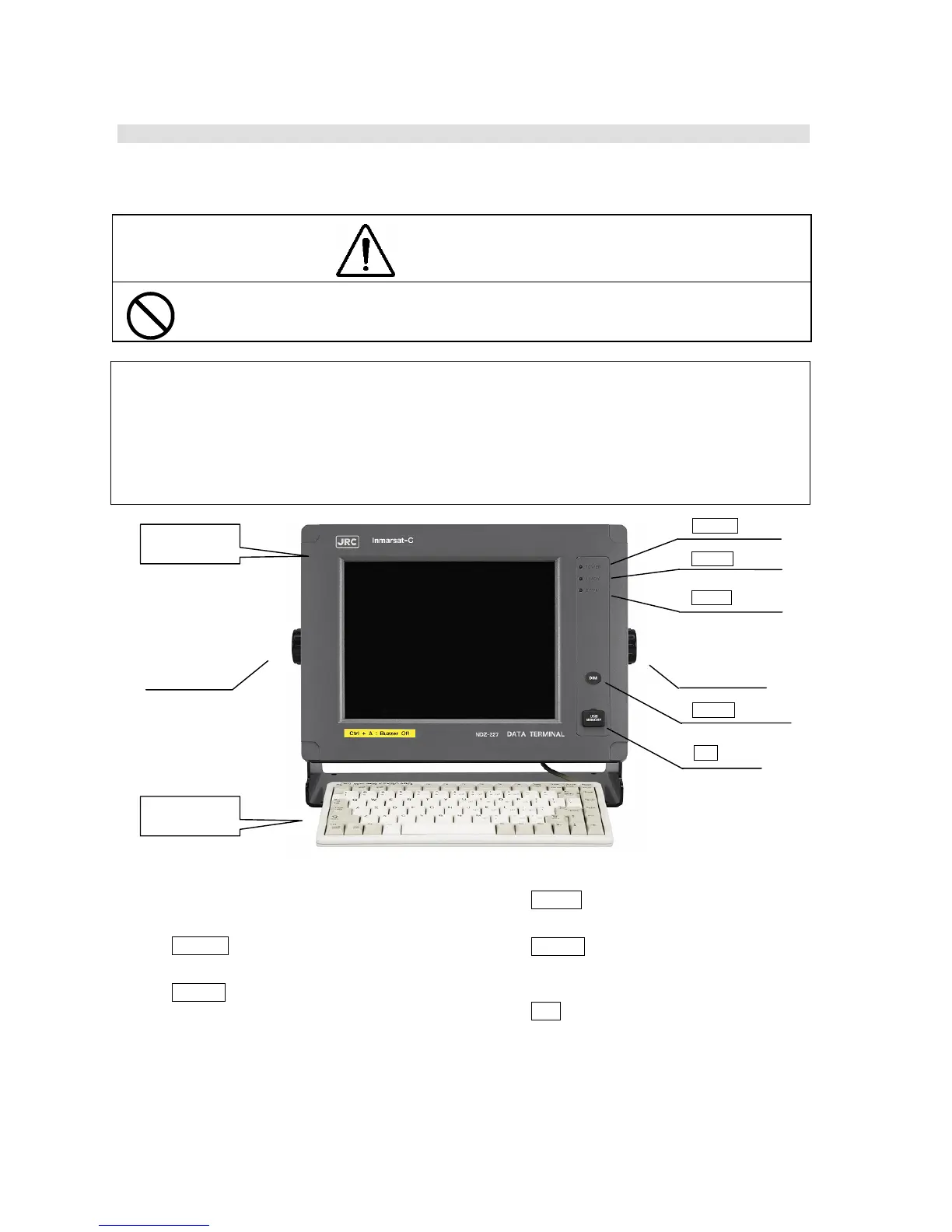

Fig.2.2.3 DTE
(1) Screen Angle Adjust Knob
Used to adjust the screen angle to clearly.
(2)
POWER LED
Illuminates when power has been supplied.
(3)
READY LED
Illuminates when communication is possible
(4)
COMM LED
Illuminates in communication.
(5)
Dimmer BUTTON
Used to adjust the screen and each LED
(POWER/READY/COMM) dimmer.
(6)
USB PORT
Connect an USB flash memory.
Display
Keyboard
(3)READY LED
(4)COMM LED
(1)Screen Angle
Adjust Knob
(2)POWER LED
(1)Screen Angle
Adjust Knob
(5)Dimmer BUTTON
(6)USB PORT
