A5-8

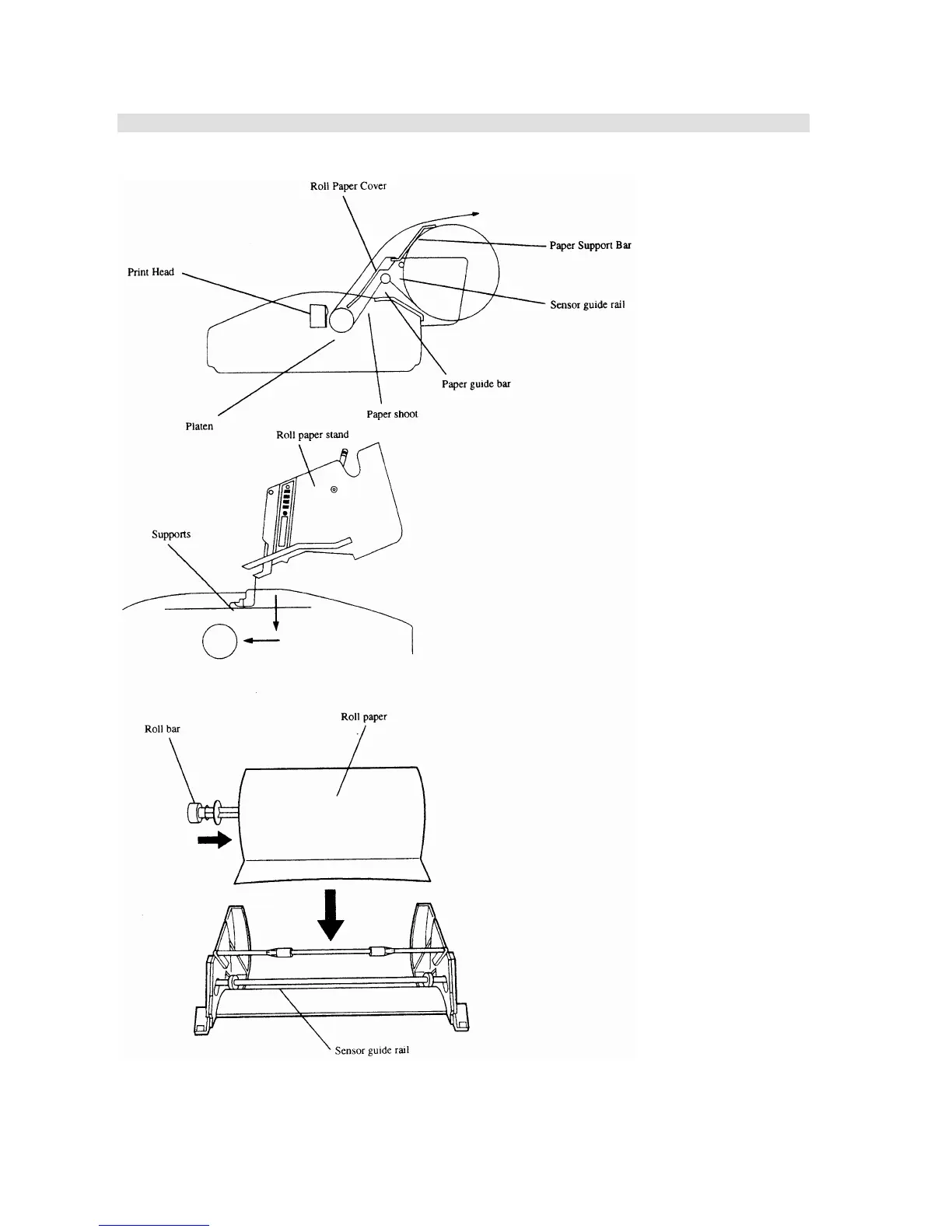

A5.3.4 Roll Paper Loading
Paper holder mounting
Paper holder mounting
1) Insert the roll paper stand into guides on right
and left
Loading of roll paper
1) Cut off broken or folded end of roll paper.
2) Inset roll core to roll.
3) Pull toward you the sensor guide lever.
4) Mount the roll with roll core to roller holder.
At that time, pay attention to direction of paper.
5) Mount caps above the roll bar.
To Next Page
