(5) Connecting and setting of the control box
Connect the solenoid valve cable of the needle cooler with thread trimmer to CN56 connector of SC-921.

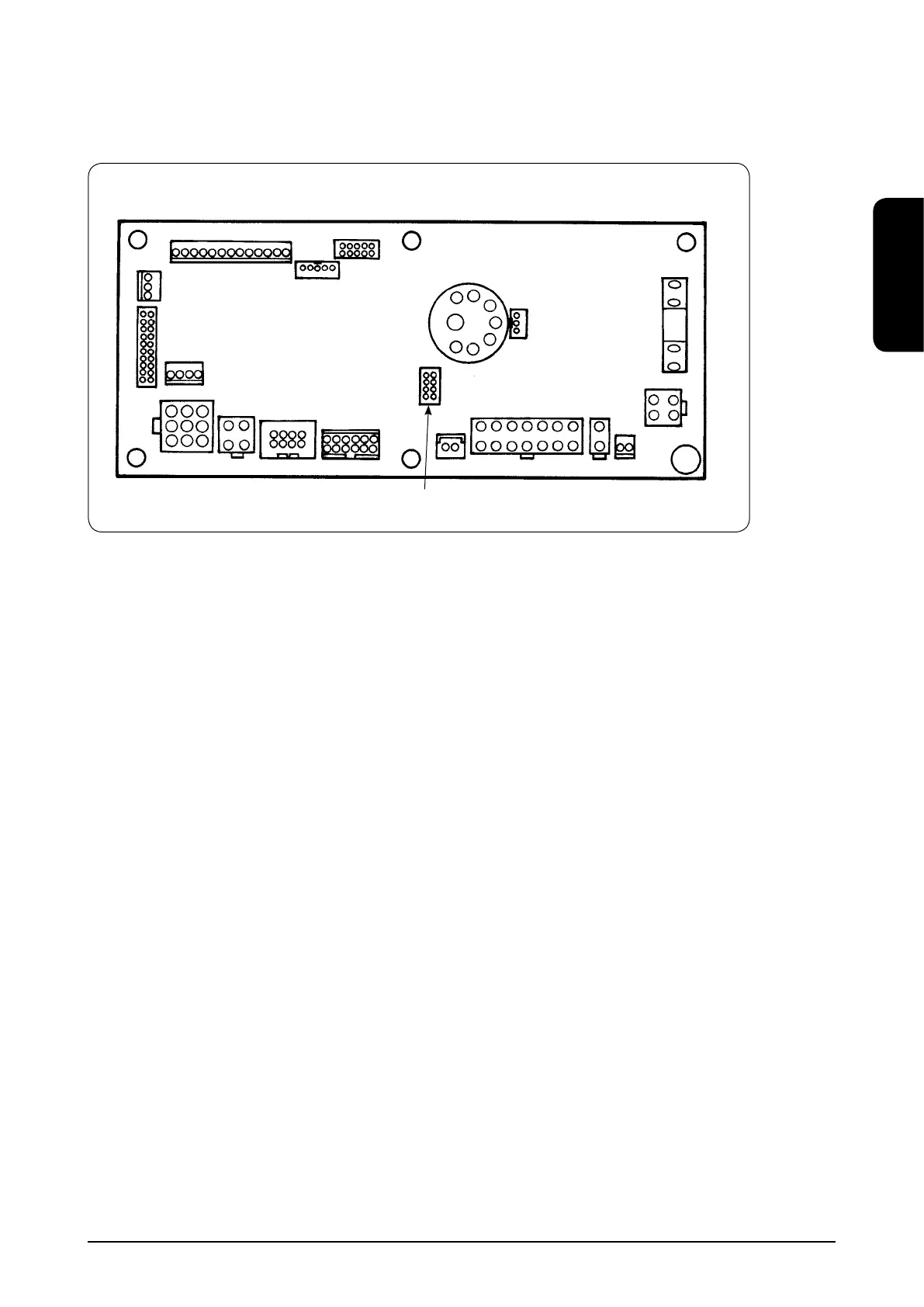

Open the lid of the control box of SC-921 and perform the connection and change, referring to Fig. 1.
Fig. 1
CN56
