13
ENGLISH

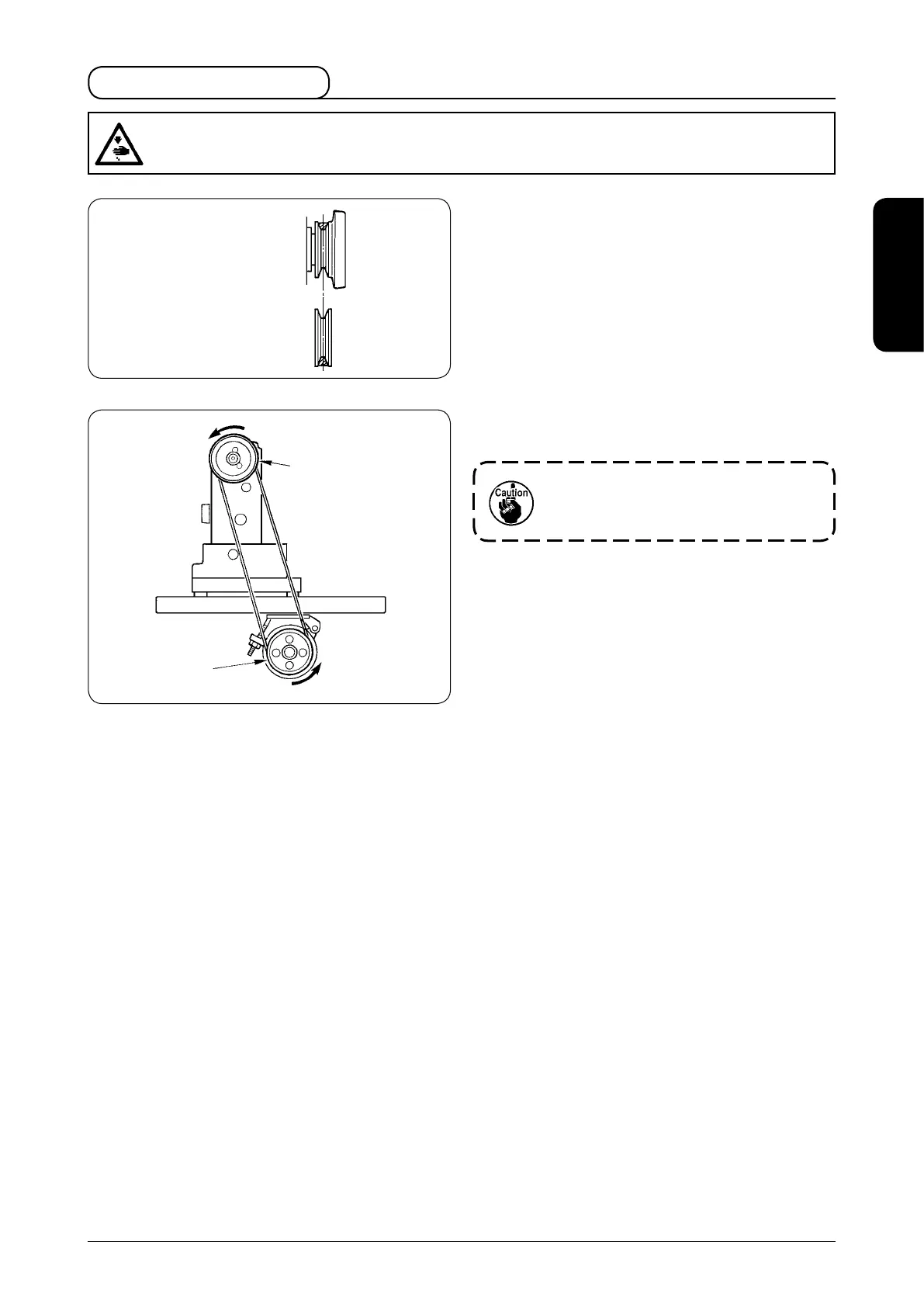

1) The motor pulley shifts to the left-hand side when
depressing the pedal. At this time, install the motor so
that the centers of motor pulley and machine pulley
aigns with each other.
＊
For the installing procedure of the motor pulley,
refer to the Instruction Manual for motor.
Motor pulley
Machine pulley
Machine pulley
Motor pulley
2. Installing the motor
2) Install the motor so that the machine pulley rotates
counterclockwise.
If the machine pulley rotates in the
reverse direction, nomal lubrication
cannot be performed. As a result, machine
trouble will be caused.
＊
For setting the belt, refer to "1. Setting the belt", p.3.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
