5.
Simultaneous operation of the presser foot lifting and open/close of the hemming binder
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.

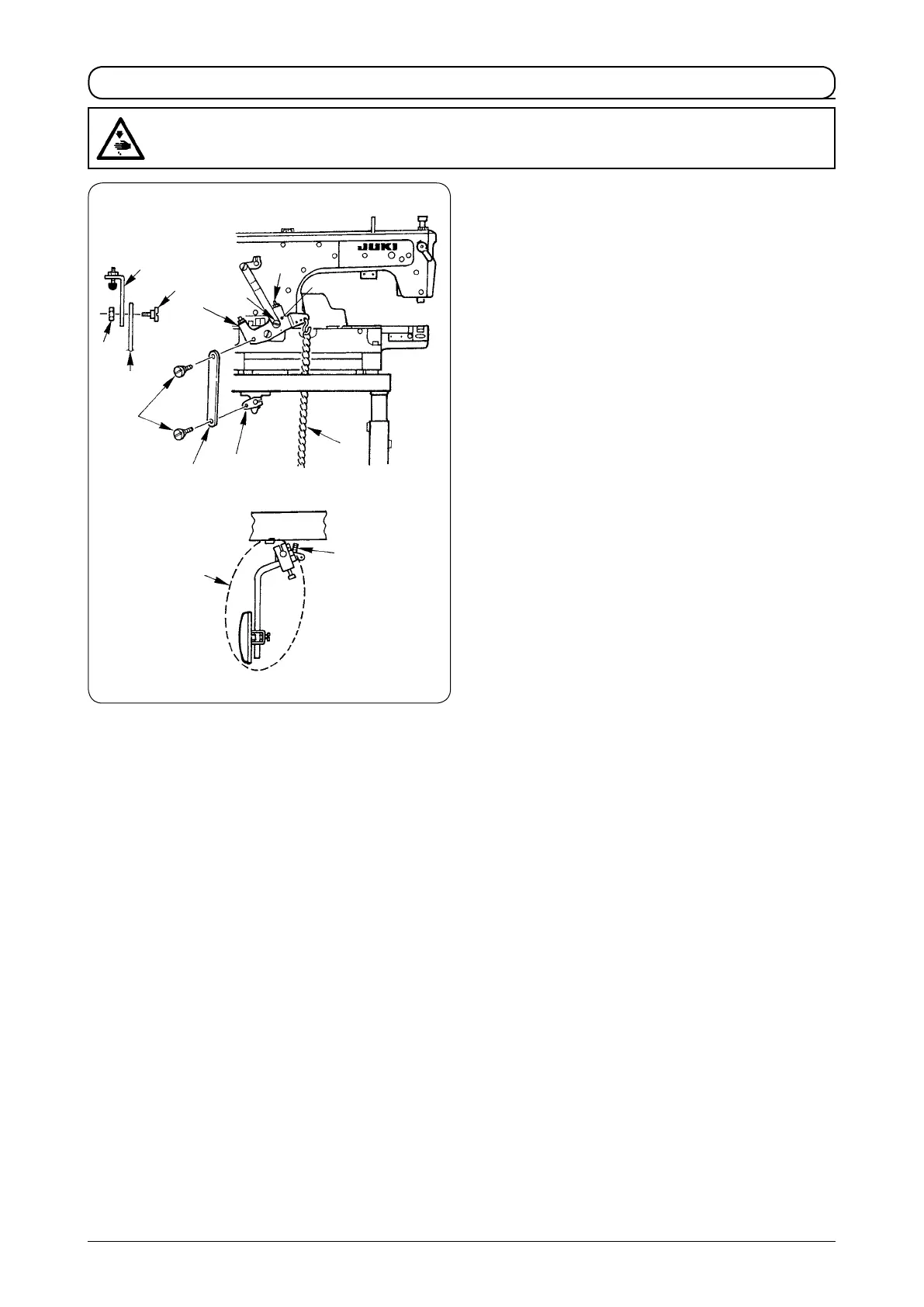

Presser foot lifting and open/close of the hemming binder
can be simultaneously performed by attaching the compo-
nents supplied with the sewing machine as accessories.
1) Fix hemming binder connecting rod
2
to knee lifting
lever A
4
using hinge screw
1
. (Tightening torque: 4.5
to 5.5 N·m)
2) Fix hemming binder connecting rod
2
to presser lifting
link connection
5
using hinge screws
1
and nut
3
.
(Tightening torque should be 4.5 to 5.5 N·m. To secure
nut
3
on the underside, tighten it with a 8mm span-
ner.)
＊
When simultaneously performing presser foot lifting
and open/close of the hemming binder by knee opera-
tion, remove chain
6
for use.
When simultaneously performing presser foot lifting
and open/close of the hemming binder by pedal opera-
tion, remove knee pad plate (asm.)
7
for use.
＊
When the lifting amount of the upper feed roller is insuf-
cient, move hinge screw
!0
to
!1
. The lifting amount of
the upper feed roller increased with the same operating
amount.
＊
Lifting amount of the upper feed roller is max. 14 mm
and open/close amount of the hemming binder is max.
13 mm.
Adjust presser lifting stopper A
9
or
8
for use so that
both the lifting amount of the upper feed roller and
the open/close amount of the hemming binder do not
exceed the respective max. values.
4
2
3
1
5
7
6
8
5
1
2
9
!1
!0
